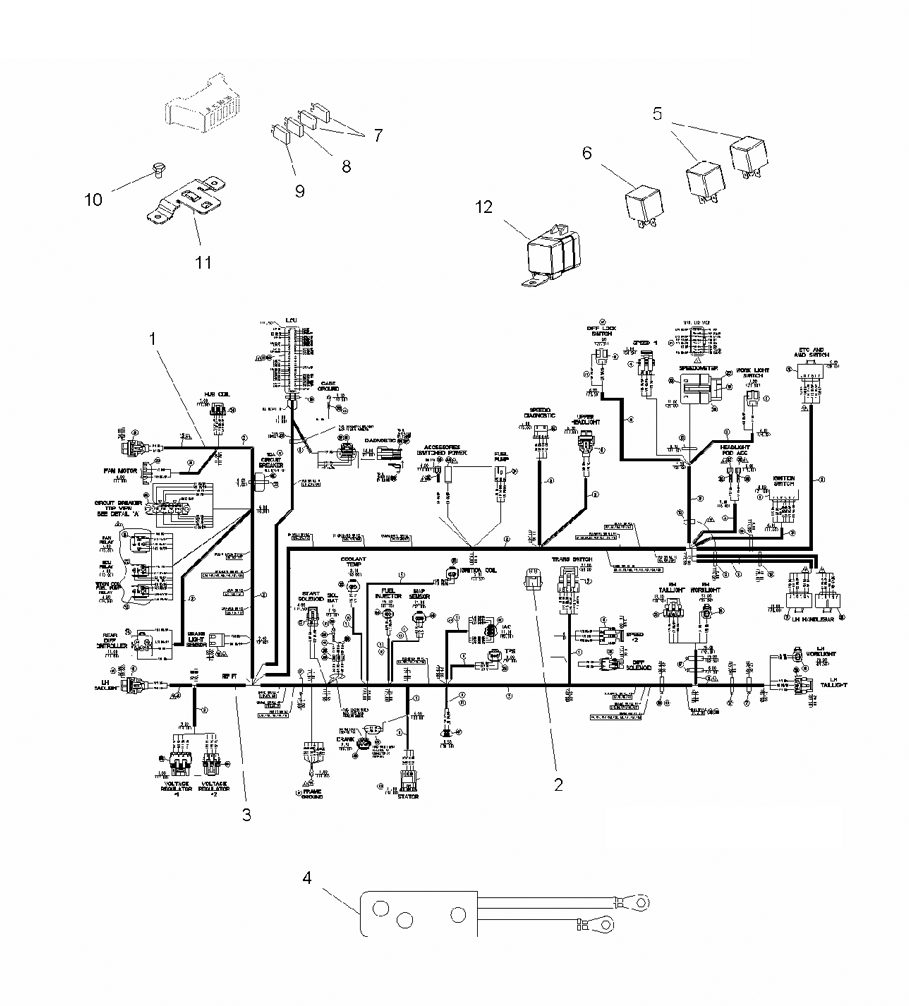

ELECTRICAL COMPONENTS для Polaris SPORTSMAN X2 800 EFI LE (TN76AQ) (CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
12410944 HARNESS-MAIN, TWIN X2HARNESS-MAIN, TWIN X2
-
24010924 MODULE-RESISTORMODULE-RESISTOR
-
32202607 KIT-FUSIBLE LINK, 0.8 MMKIT-FUSIBLE LINK, 0.8 MM
-
32202670 KIT-FUSIBLE LINK, 1.0MMKIT-FUSIBLE LINK, 1.0MM
-
54011141 RELAY-SEALED, SPST, NO MNT TABRELAY-SEALED, SPST, NO MNT TAB
-
64011998 RELAY-MICRO, SPDT, 35/20A, SLD, 12RELAY-MICRO, SPDT, 35/20A, SLD, 12
-
74011683 FUSE-ATC 20 AMPFUSE-ATC 20 AMP
-
84011682 FUSE-ATC 15 AMPFUSE-ATC 15 AMP
-
94011681 FUSE-ATC 5 AMPFUSE-ATC 5 AMP
-
107512024 SCREWSCREW
-
115250236 BRKT-FUSE BLOCKBRKT-FUSE BLOCK
-
124011619 RELAY-DIFF CONTROL, REARRELAY-DIFF CONTROL, REAR
