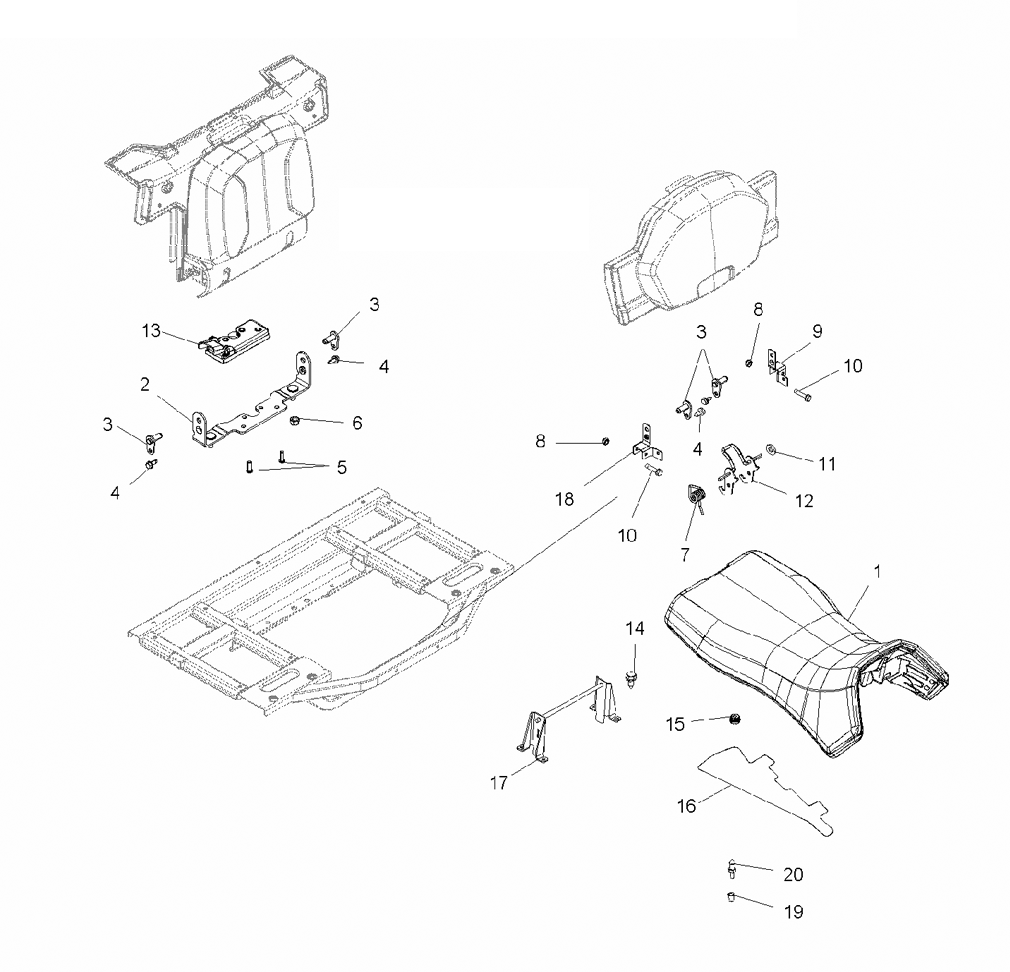

SEAT ASSY. для Polaris SPORTSMAN X2 800 EFI LE (TN76AQ) (CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
-2684135-070 ASM-SEAT, OPERATOR, X2, BLACK [INCL. 15,16]ASM-SEAT, OPERATOR, X2, BLACK [INCL. 15,16]
-
12684134 ASM-COVER, X2, WHITE DECALASM-COVER, X2, WHITE DECAL
-
21015414-067 WELD-PIVOT, PASS SEAT, BLACKWELD-PIVOT, PASS SEAT, BLACK
-
31015413 WELD-PIN, PIVOTWELD-PIN, PIVOT
-
47517386 SCREWSCREW
-
57515177 SCREWSCREW
-
67542343 NUT, FLANGENUT, FLANGE
-
77041370 SPRING, LATCHSPRING, LATCH
-
87542122 NUT-NYLOKNUT-NYLOK
-
95250563 BRACKET-PIVOT, SEAT, LEFT HANDBRACKET-PIVOT, SEAT, LEFT HAND
-
107512130 BOLTBOLT
-
117556091 SPACERSPACER
-
121016335-067 WELD-ROD, PASS SEAT, BLACKWELD-ROD, PASS SEAT, BLACK
-
137081325 LATCH-SEAT, PASS, BACKLATCH-SEAT, PASS, BACK
-
147518239 SCR-1/4-20X3/4 TR/TXSCR-1/4-20X3/4 TR/TX
-
155412994 GROMMET-SEAT LATCHGROMMET-SEAT LATCH
-
165813059 FOIL-SEAT BASE, OPERATORFOIL-SEAT BASE, OPERATOR
-
171015355-067 WELD-LOCKOUT, PASSENGER, BLACKWELD-LOCKOUT, PASSENGER, BLACK
-
185250564 BRACKET-PIVOT, SEAT, RIGHT HANDBRACKET-PIVOT, SEAT, RIGHT HAND
-
197542143 INSERT,INSERT,
-
205910306 LOCK PINLOCK PIN
