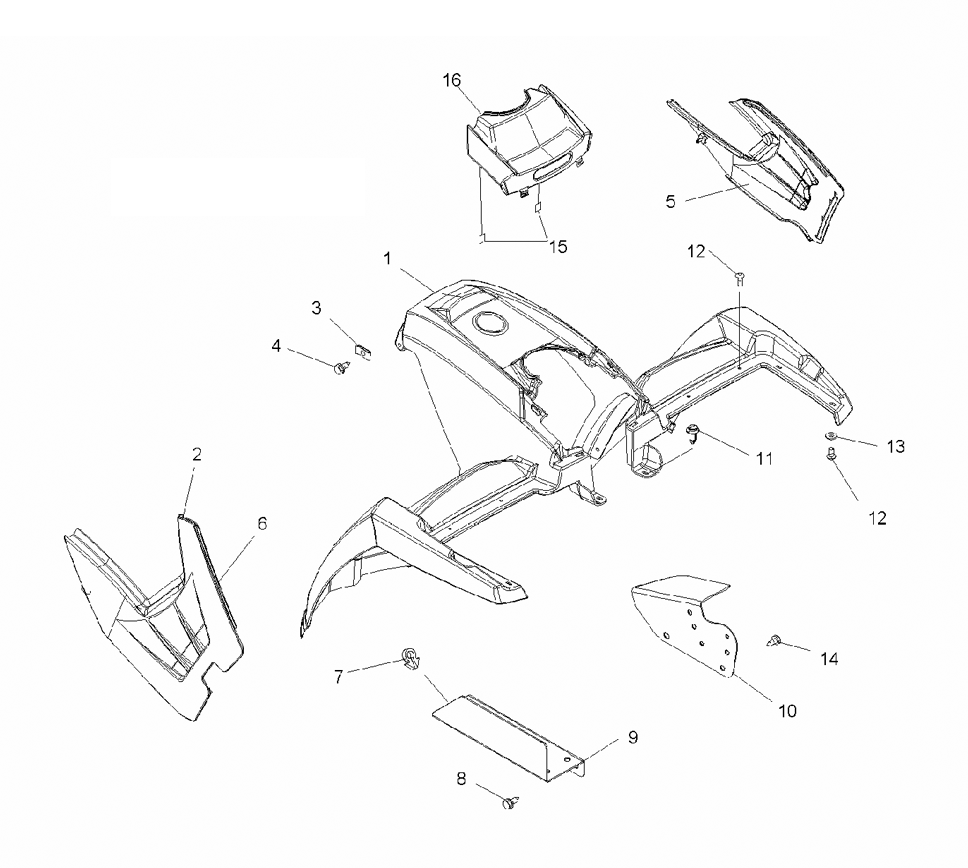

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN X2 800 EFI LE (TN76AQ) (CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
12633788-455 ASM-CAB, FR, SVC, PNTD, STEALTH BK [INCL. WARNING DECALS]ASM-CAB, FR, SVC, PNTD, STEALTH BK [INCL. WARNING DECALS]
-
22633048-455 PANEL/FOIL ASM, RIGHT HAND, NBU SUB CAMO [INCL. 6]PANEL/FOIL ASM, RIGHT HAND, NBU SUB CAMO [INCL. 6]
-
37670057 NUT, SPEEDNUT, SPEED
-
47517219 SCREWSCREW
-
55435919-455 PANEL-SIDE, LEFT HAND, NBU CAMOPANEL-SIDE, LEFT HAND, NBU CAMO
-
65813031 FOIL-SIDE PANEL, L-SHAPEFOIL-SIDE PANEL, L-SHAPE
-
65813041 FOIL-SIDE PANEL, RIGHT HANDFOIL-SIDE PANEL, RIGHT HAND
-
65813055 FOIL-SIDE PANEL, FRONTFOIL-SIDE PANEL, FRONT
-
77670102 CLIPCLIP
-
87517386 SCREWSCREW
-
95248100-329 GUARD-SPLASH, SPMN, RIGHT HAND, E-COATGUARD-SPLASH, SPMN, RIGHT HAND, E-COAT
-
105246872 GUARD, SPLASH LEFT HANDGUARD, SPLASH LEFT HAND
-
117661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
-
127512026 SCREWSCREW
-
137556034 WASHERWASHER
-
147512232 BOLTBOLT
-
157661893 CLIP-TRIM, METALCLIP-TRIM, METAL
-
165436716-455 COVER-FR, NBU SUB CAMOCOVER-FR, NBU SUB CAMO
