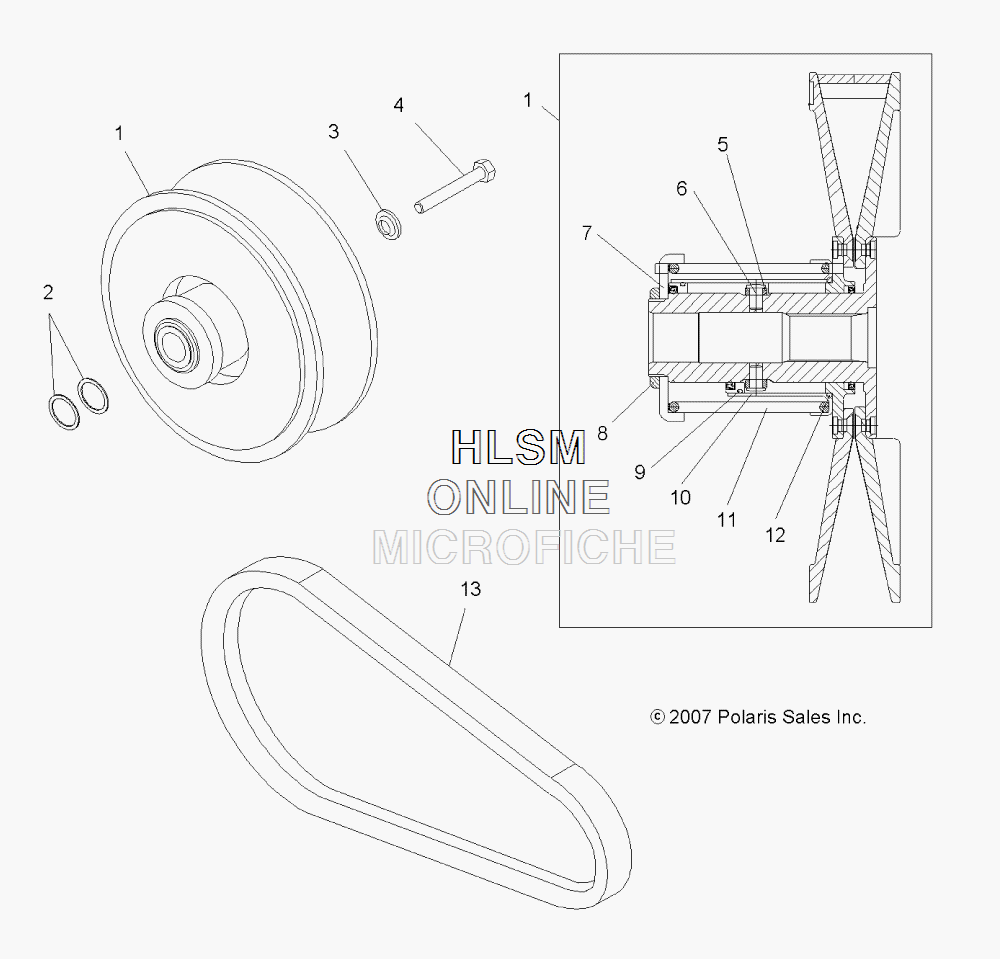

CLUTCH - SECONDARY для Polaris HAWKEYE 300 2X4 (A09LB27AA) (INDY RED) - 2009 года выпуска
-
№АртикулНазвание
-
11322776 ASM., DRIVEN CLUTCH (INCL 3-12)ASM., DRIVEN CLUTCH (INCL 3-12)
-
27556120 BUSHINGBUSHING
-
35220646 WASHER, DOMEDWASHER, DOMED
-
47518471 SCREWSCREW
-
57661888 RING, ROLLERRING, ROLLER
-
65334962 GUIDE, PIN, ROLLERGUIDE, PIN, ROLLER
-
75250813 SEAT, SPRINGSEAT, SPRING
-
87547331 NUTNUT
-
95412972 O-RINGO-RING
-
105250812 SLEEVE, SPRINGSLEEVE, SPRING
-
117043395 SPRINGSPRING
-
125412971 O-RINGO-RING
-
133211131 BELT, DRIVE, MIDSIZEBELT, DRIVE, MIDSIZE
