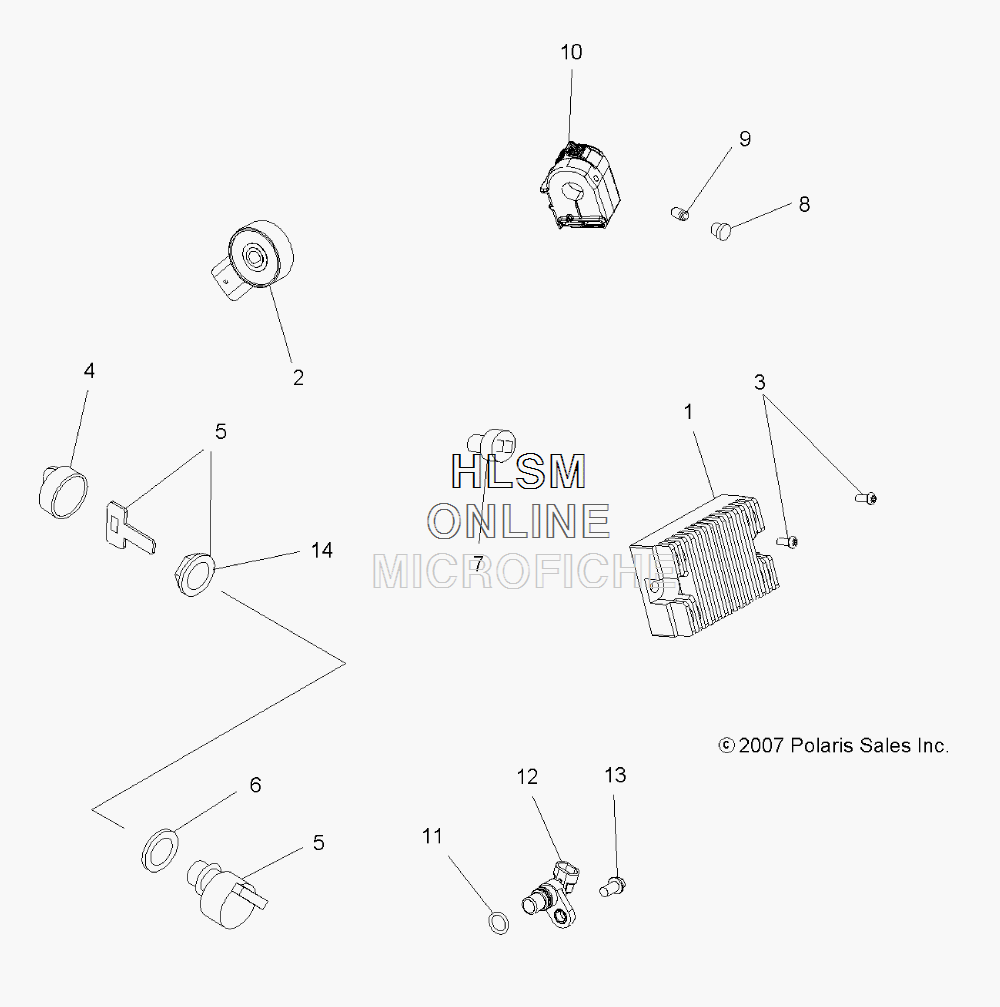

ELECTRICAL COMPONENTS для Polaris HAWKEYE 300 2X4 (A09LB27AA) (INDY RED) - 2009 года выпуска
-
№АртикулНазвание
-
14011182 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
23233835 SWITCH, ROTARY, 6 PINSWITCH, ROTARY, 6 PIN
-
37512024 SCREWSCREW
-
45433534 COVER, KEYCOVER, KEY
-
54012165 SWITCH, KEY (INCL. 4,14) (SEE NOTE)SWITCH, KEY (INCL. 4,14) (SEE NOTE)
-
67556509 BUSHINGBUSHING
-
74110164 SWITCHSWITCH
-
85432952 PLUGPLUG
-
97517625 SCREW, SETSCREW, SET
-
104011655 SWITCH, HANDLEBAR, LEFT HAND, ON/OFFSWITCH, HANDLEBAR, LEFT HAND, ON/OFF
-
113234302 O-RINGO-RING
-
124012167 SENSOR, SPEEDSENSOR, SPEED
-
133234311 SCREWSCREW
-
145433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
