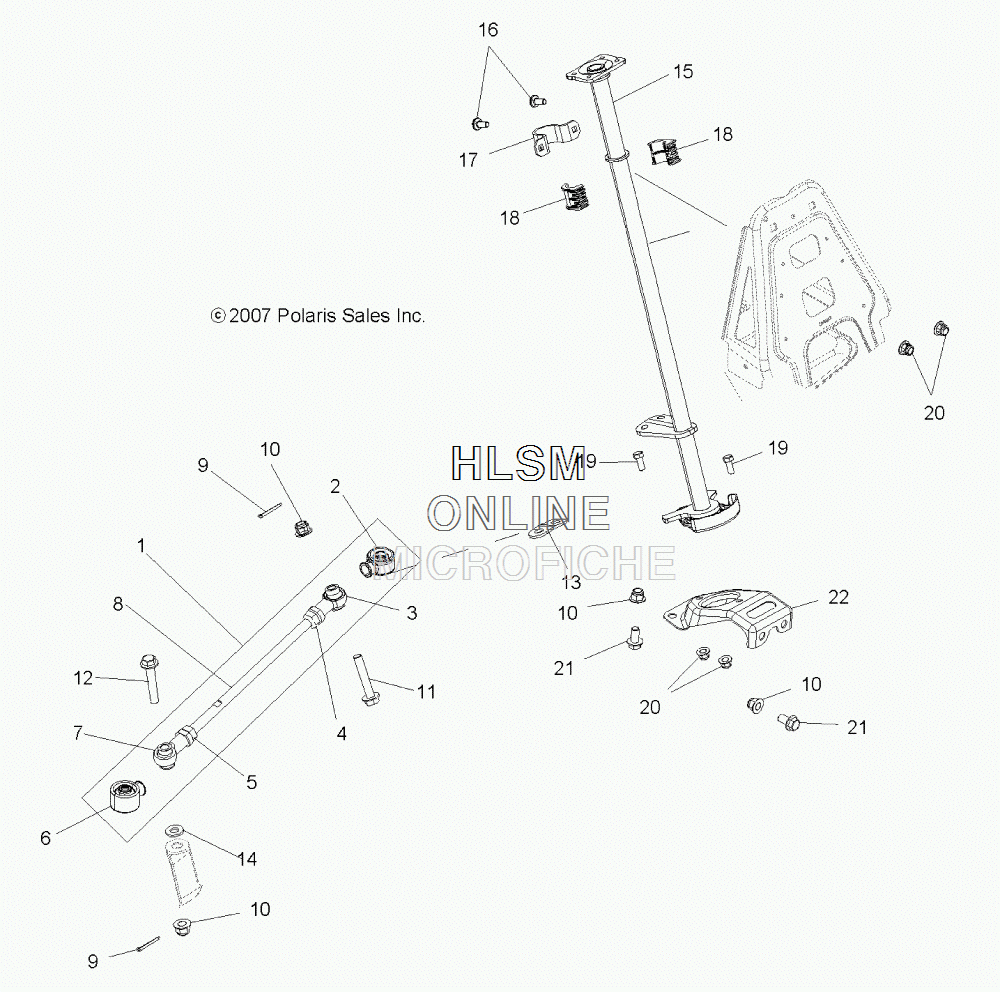

STEERING POST для Polaris HAWKEYE 300 2X4 (A09LB27AA) (INDY RED) - 2009 года выпуска
-
№АртикулНазвание
-
11822955 ASM., TIE ROD (INCL 2-8)ASM., TIE ROD (INCL 2-8)
-
25411291 BOOT, SEALBOOT, SEAL
-
37061134 ROD END, RIGHT HANDROD END, RIGHT HAND
-
47547358 NUT, JAM, RIGHT HANDNUT, JAM, RIGHT HAND
-
57547357 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
65411920 BOOT, SEALBOOT, SEAL
-
77061135 ROD END, LEFT HANDROD END, LEFT HAND
-
85134603 TIE RODTIE ROD
-
97661203 PIN, COTTERPIN, COTTER
-
107547313 NUT, FLANGENUT, FLANGE
-
117518605 SCREW, FLANGESCREW, FLANGE
-
127518682 SCREWSCREW
-
135248353 RETAINERRETAINER
-
147556099 WASHER, FLATWASHER, FLAT
-
151015961 POST, STEERINGPOST, STEERING
-
167518479 BOLT, CARRIAGEBOLT, CARRIAGE
-
175246732 BRACKET, STEERING BUSHING, UPPERBRACKET, STEERING BUSHING, UPPER
-
185433866 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
197518702 BOLT, FLANGEBOLT, FLANGE
-
207547317 NUT, FLANGENUT, FLANGE
-
217518700 BOLT, FLANGEBOLT, FLANGE
-
225249419-067 SUPPORT, STEERING, LOWER (BLACK)SUPPORT, STEERING, LOWER (BLACK)
