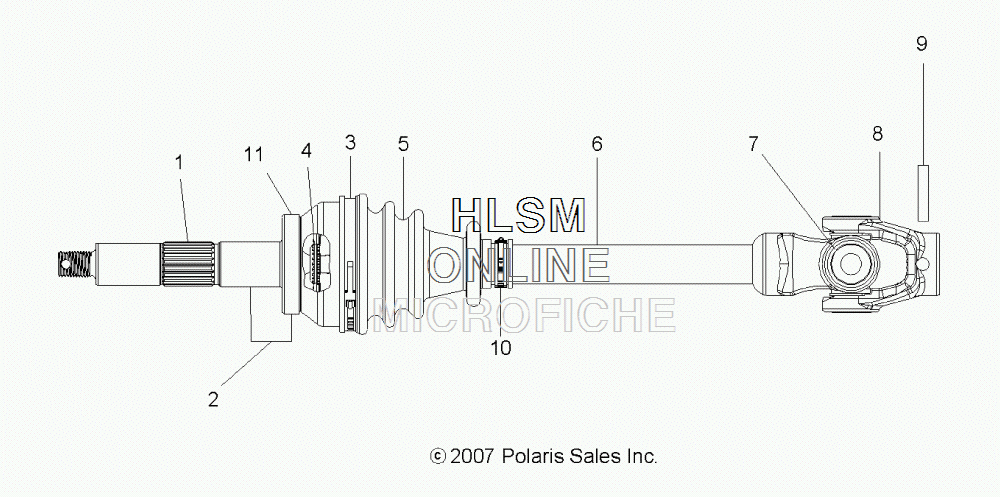

DRIVESHAFT - FRONT для Polaris SCRAMBLER 500 4X4 INTL (A09BG50FA) (SCREAMIN (YELLOW) - 2009 года выпуска
![](/wa-data/public/shop/sheme/polaris/atv/267aa6ae-9357-4cde-9697-0e8cf00a0095.gif)
-
№АртикулНазвание
-
11380215 ASM., DRIVE SHAFT, FRONT (INCL. 4,6-8)ASM., DRIVE SHAFT, FRONT (INCL. 4,6-8)
-
21380118 ASM., CV HOUSING W/SLEEVEASM., CV HOUSING W/SLEEVE
-
33260121 CLAMP, BANDCLAMP, BAND
-
47670092 CIRCLIPCIRCLIP
-
52201015 KIT, REPLACEMENT BOOTKIT, REPLACEMENT BOOT
-
61380060 SHAFT (INCL. 4)SHAFT (INCL. 4)
-
73260104 KIT, CROSS AND BEARINGKIT, CROSS AND BEARING
-
83260101 YOKEYOKE
-
97661913 PIN, SPRINGPIN, SPRING
-
103260123 CLAMP, BANDCLAMP, BAND
-
115222299 SLEEVE, SEALSLEEVE, SEAL
