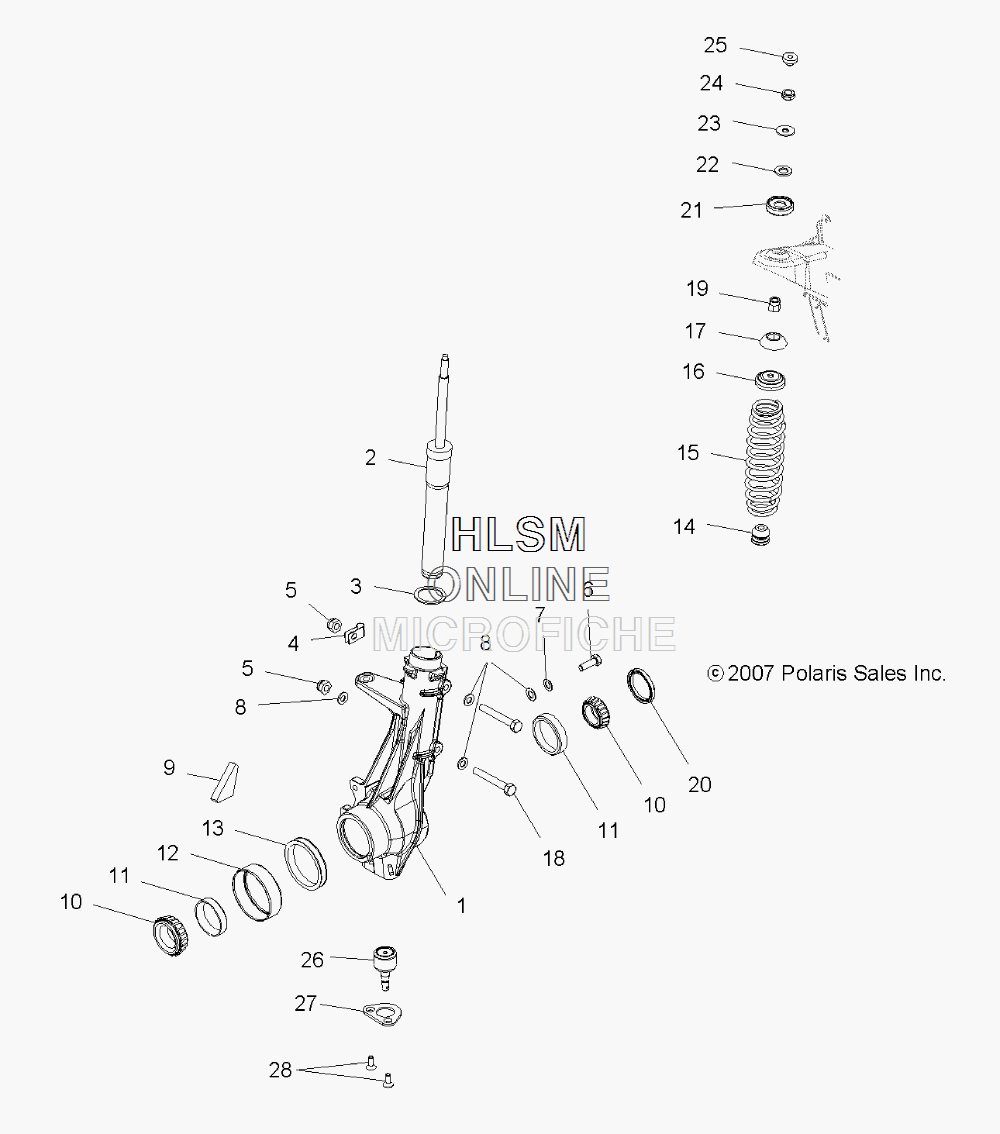

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 500 4X4 INTL (A09BG50FA) (SCREAMIN (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
11822821 ASM., HUBSTRUT, LEFT HAND (INCL. 9,11,12,13,20,26,27,28)ASM., HUBSTRUT, LEFT HAND (INCL. 9,11,12,13,20,26,27,28)
-
11822822 ASM., HUBSTRUT, RIGHT HAND (INCL. 9,11,12,13,20,26,27,28)ASM., HUBSTRUT, RIGHT HAND (INCL. 9,11,12,13,20,26,27,28)
-
27041762 STRUT, FRONTSTRUT, FRONT
-
35211115 WASHERWASHER
-
47080367 CLAMP, CABLECLAMP, CABLE
-
57542324 NUT, NYLOKNUT, NYLOK
-
67512365 SCREW, CAPSCREW, CAP
-
77552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87558402 WASHER, FLATWASHER, FLAT
-
95810439 RETAINER, STRUT CASTING WIRERETAINER, STRUT CASTING WIRE
-
103554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
113554507 BEARING, TAPERED ROLLER CUPBEARING, TAPERED ROLLER CUP
-
125222193 SLEEVE, HUBSTRUT SEALSLEEVE, HUBSTRUT SEAL
-
132410133 COIL, MAGNETICCOIL, MAGNETIC
-
145412665 BUMPERBUMPER
-
157041603-216 SPRING, COMPRESSION (SCREAMIN' YELLOW)SPRING, COMPRESSION (SCREAMIN' YELLOW)
-
165243364 RETAINER, SPRINGRETAINER, SPRING
-
175432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
187515339 BOLTBOLT
-
195132062 SPACERSPACER
-
203610028 SEAL, HUBSTRUTSEAL, HUBSTRUT
-
215432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
225810291 SPACER, RUBBERSPACER, RUBBER
-
237555749 WASHERWASHER
-
247547104 NUTNUT
-
257052028 GROMMETGROMMET
-
267061158 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
275211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
287512284 SCREWSCREW
