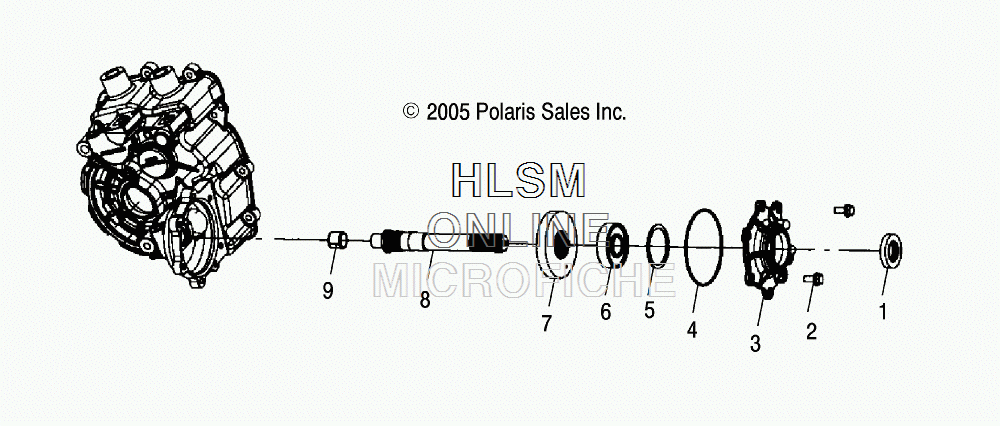

GEARCASE - OUTPUT для Polaris SCRAMBLER 500 4X4 INTL (A09BG50FA) (SCREAMIN (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
1341502 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
23233539 SCREWSCREW
-
33233556 COVER, SNORKELCOVER, SNORKEL
-
43233555 O-RINGO-RING
-
53233554 SHIMSHIM
-
63233020 BEARINGBEARING
-
73233898 GEAR, 25TGEAR, 25T
-
83233899 SHAFT, SNORKELSHAFT, SNORKEL
-
93233552 BUSHINGBUSHING
