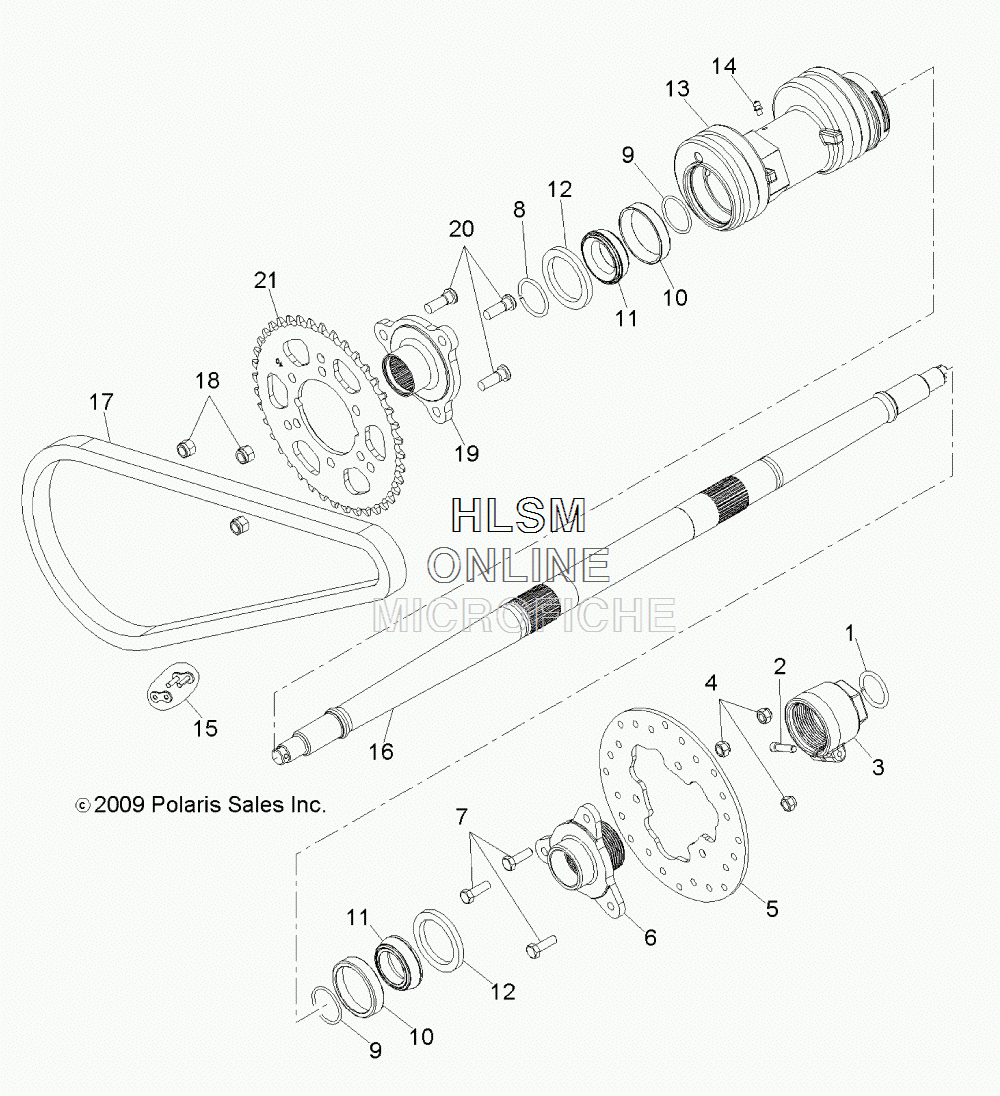

AXLE - REAR W/ HOUSING для Polaris SCRAMBLER 500 4X4 [A12NG50AA] - 2012 года выпуска
-
№АртикулНазвание
-
17670160 RING, RETAININGRING, RETAINING
-
27515102 SCREWSCREW
-
35137563 NUT, AXLENUT, AXLE
-
47547217 NUT, NYLOKNUT, NYLOK
-
55253186 DISC, BRAKEDISC, BRAKE
-
65631457 HUB, BRAKE DISCHUB, BRAKE DISC
-
77512365 SCREW, CAPSCREW, CAP
-
87670161 RING, RETAININGRING, RETAINING
-
95411965 O-RINGO-RING
-
103514679 BEARING, CUP, TAPEREDBEARING, CUP, TAPERED
-
113514680 BEARING, CONE, TAPEREDBEARING, CONE, TAPERED
-
123610070 SEAL, LIPSEAL, LIP
-
135134460 HOUSING, AXLE, REARHOUSING, AXLE, REAR
-
147080306 FITTING, LUBRICATIONFITTING, LUBRICATION
-
153221192 LINK, CONNECTORLINK, CONNECTOR
-
165133967 AXLE, REARAXLE, REAR
-
173221193-076 CHAIN, O-RING (INCL. 15)CHAIN, O-RING (INCL. 15)
-
187542439 NUT, NYLOKNUT, NYLOK
-
191520702 ASM., HUB, SPROCKET (INCL. 20)ASM., HUB, SPROCKET (INCL. 20)
-
207515513 STUDSTUD
-
213222109 SPROCKET, REAR AXLE, 36TSPROCKET, REAR AXLE, 36T
