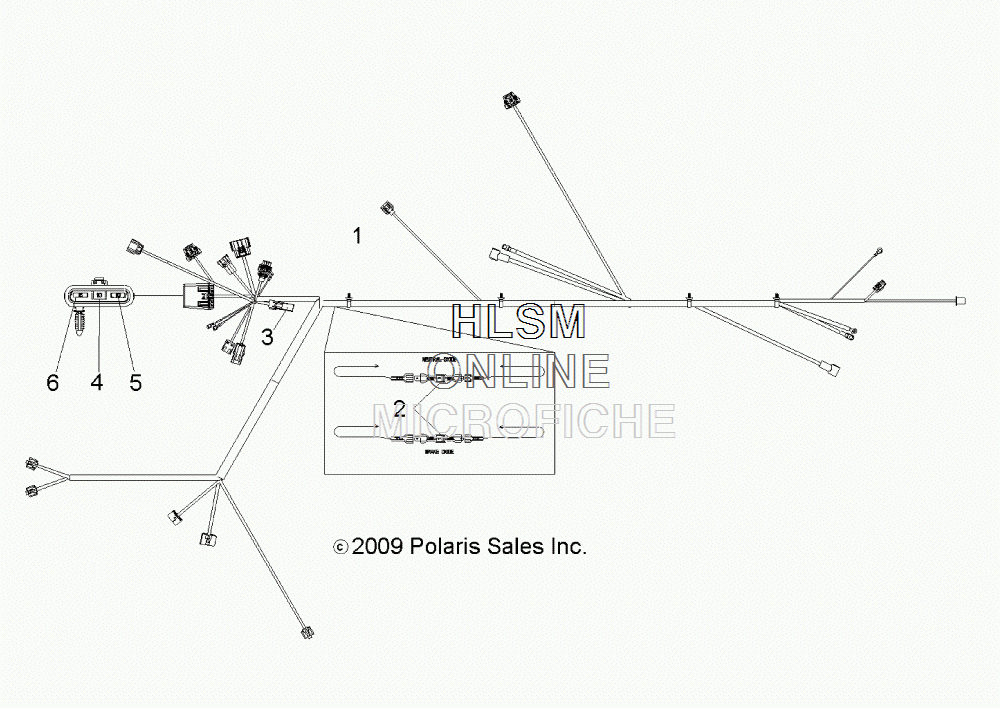

WIRE HARNESS для Polaris SCRAMBLER 500 4X4 [A12NG50AA] - 2012 года выпуска
-
№АртикулНазвание
-
12411229 HARNESS, MAIN (INCL. 1-6, FUSE LINK KIT)HARNESS, MAIN (INCL. 1-6, FUSE LINK KIT)
-
12202147 KIT, FUSIBLE LINK, .5 MMKIT, FUSIBLE LINK, .5 MM
-
12202607 KIT, FUSIBLE LINK, .8 MMKIT, FUSIBLE LINK, .8 MM
-
12202670 KIT, FUSIBLE LINK, 1.0 MMKIT, FUSIBLE LINK, 1.0 MM
-
22411035 DIODE, 6 AMPDIODE, 6 AMP
-
34011998 RELAY, MICRORELAY, MICRO
-
44011371 BREAKER, CIRCUIT, 10 AMPBREAKER, CIRCUIT, 10 AMP
-
52434016 FUSE, IGNITION, 10 AMPFUSE, IGNITION, 10 AMP
-
62410280 FUSE, MINI BLADE, 15 AMPFUSE, MINI BLADE, 15 AMP
