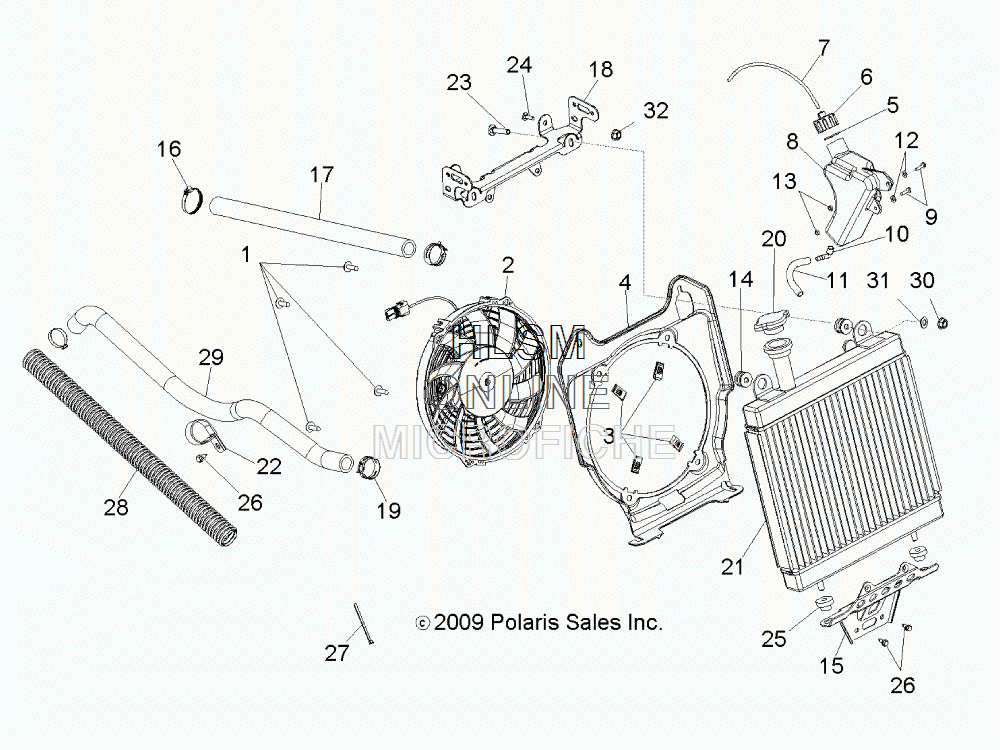

COOLING SYSTEM для Polaris SCRAMBLER 500 4X4 [A12NG50AA] - 2012 года выпуска
-
№АртикулНазвание
-
17517298 SCREWSCREW
-
21240505 ASM., FAN AND MOTORASM., FAN AND MOTOR
-
37670057 NUT, U-TYPE SPEEDNUT, U-TYPE SPEED
-
45438098 SHROUD, FANSHROUD, FAN
-
55810279 GASKETGASKET
-
65437635 CAP, OVERFLOW BOTTLE W/FITTINGCAP, OVERFLOW BOTTLE W/FITTING
-
78360009-600 LINE, FUELLINE, FUEL
-
85433410 TANK, SURGETANK, SURGE
-
97518552 SCREWSCREW
-
107052065 FITTINGFITTING
-
118450003-1525 LINE, FUELLINE, FUEL
-
127555792 WASHERWASHER
-
137556091 SPACERSPACER
-
145413155 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
155253328-329 BRACKET, RADIATOR, LOWER, BLACKBRACKET, RADIATOR, LOWER, BLACK
-
167080696 CLAMP, HOSECLAMP, HOSE
-
175413732 HOSE, ENGINE, UPPERHOSE, ENGINE, UPPER
-
185253329 BRACKET, RADIATOR, UPPERBRACKET, RADIATOR, UPPER
-
197080841 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
201240300 CAP, PRESSURECAP, PRESSURE
-
211240463 RADIATORRADIATOR
-
227080908 CLAMP, HOSECLAMP, HOSE
-
237512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
247512232 SCREWSCREW
-
255410584 BUSHING, RADIATOR MOUNT, LOWERBUSHING, RADIATOR MOUNT, LOWER
-
267517386 SCREWSCREW
-
277080138 CABLE TIECABLE TIE
-
285521731-45 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
295413733 HOSE, ENGINE, LOWERHOSE, ENGINE, LOWER
-
307542122 NUT, NYLOKNUT, NYLOK
-
317555859 WASHER, FLATWASHER, FLAT
-
327542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
