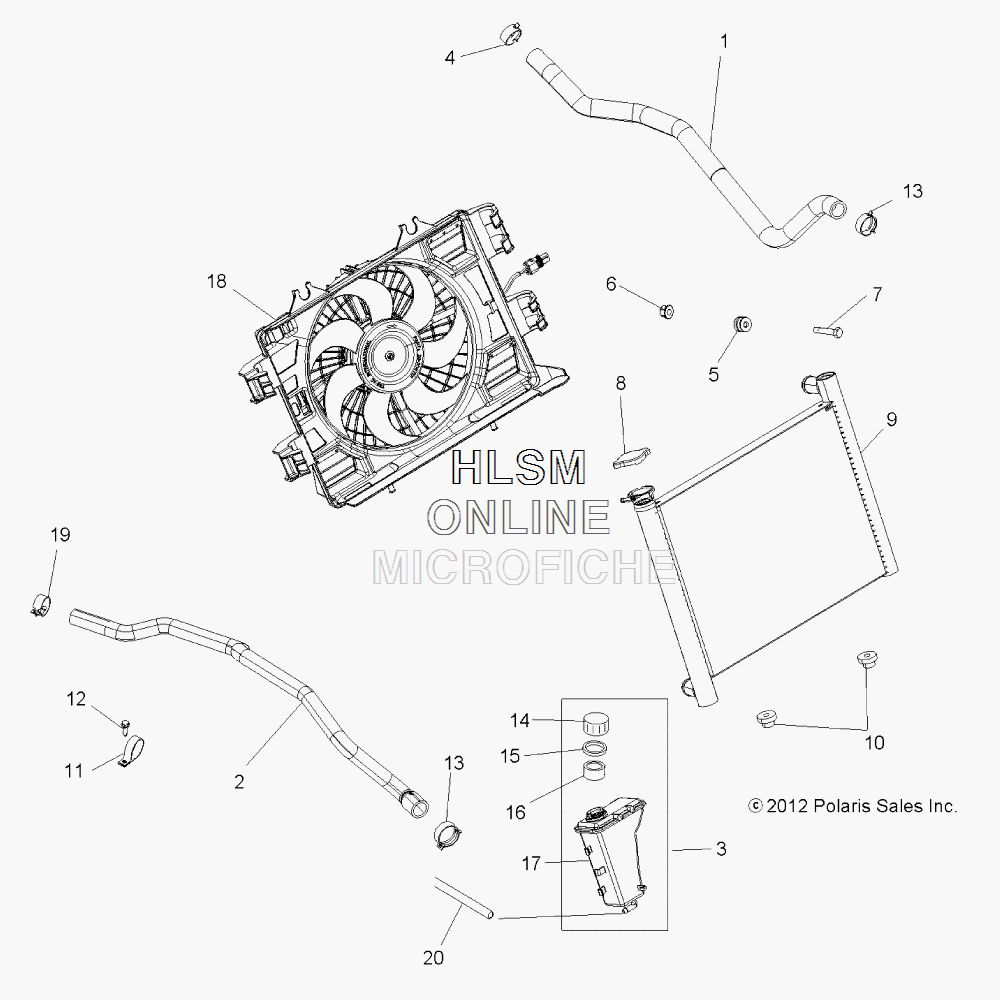

COOLING SYSTEM для Polaris SCRAMBLER 850 XP HO/EPS INTL - VOODOO BLUE [A14GH8EFI] - 2014 года выпуска
-
№АртикулНазвание
-
15414392 HOSE, RADIATOR, ENGINE OUTHOSE, RADIATOR, ENGINE OUT
-
15414505 HOSE, RADIATOR, ENGINE OUTHOSE, RADIATOR, ENGINE OUT
-
25414391 HOSE, RADIATOR, ENGINE INHOSE, RADIATOR, ENGINE IN
-
31240406 ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)
-
47080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
55413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
67547274 NUT, NYLOKNUT, NYLOK
-
77519202 SCREWSCREW
-
81240466 CAP, PRESSURECAP, PRESSURE
-
91240596 ASM., RADIATOR (INCL. 3,5,8-10,18)ASM., RADIATOR (INCL. 3,5,8-10,18)
-
91240404 RADIATORRADIATOR
-
105413510 GROMMET, RADIATOR MOUNT, LOWERGROMMET, RADIATOR MOUNT, LOWER
-
117080851 CLAMP, HOSECLAMP, HOSE
-
127518513 SCREWSCREW
-
137080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
145430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
155810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
165433774 PLUG, CAPPLUG, CAP
-
175437257 BOTTLE, COOLANT RECOVERYBOTTLE, COOLANT RECOVERY
-
182411578 FANFAN
-
197081192 CLAMP, HOSE, WORM DRIVECLAMP, HOSE, WORM DRIVE
-
208450128-27 LINE, COOLANTLINE, COOLANT
