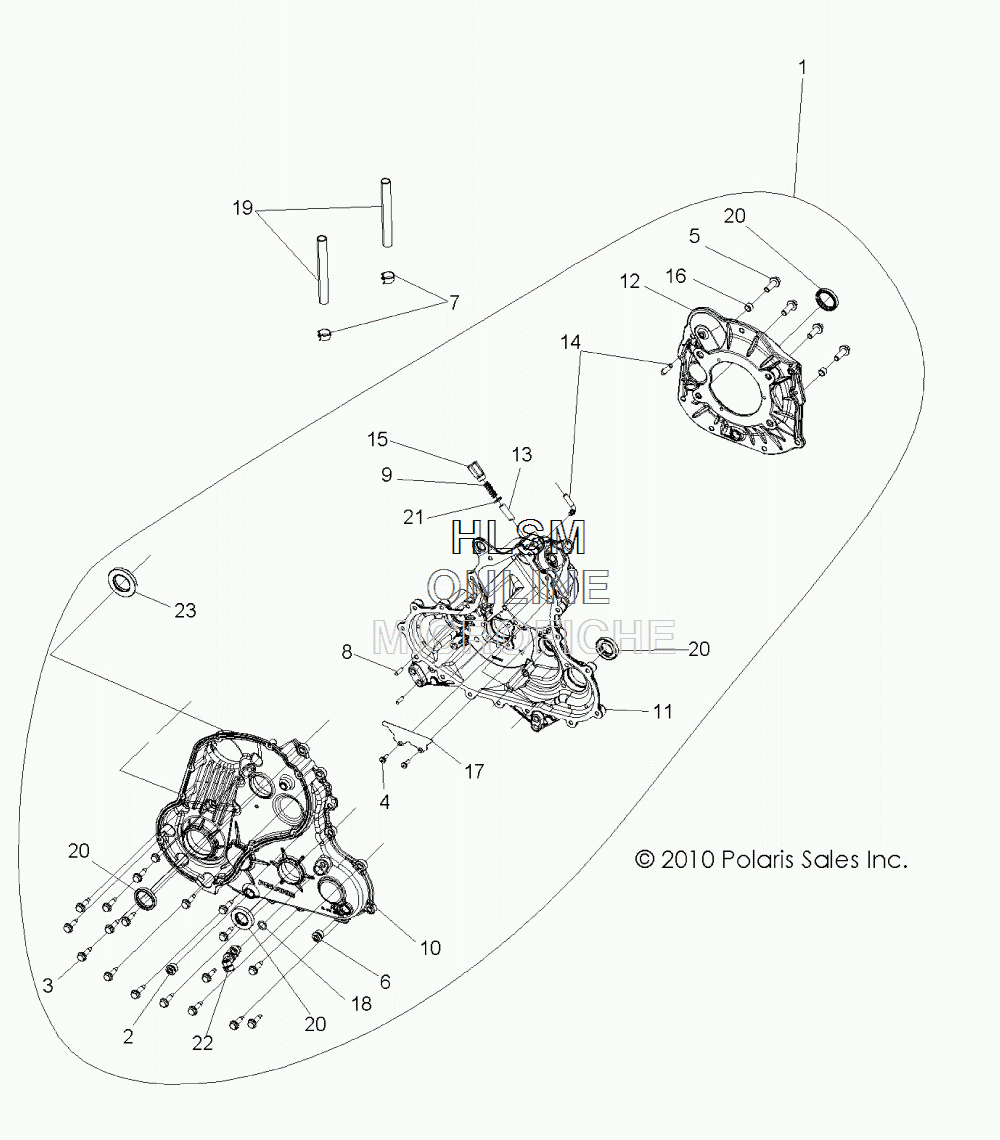

GEARCASE для Polaris SCRAMBLER 850 XP HO/EPS INTL - VOODOO BLUE [A14GH8EFI] - 2014 года выпуска
-
№АртикулНазвание
-
11332848 ASM., TRANSMISSION (INCL. ALL LESS 7,19)ASM., TRANSMISSION (INCL. ALL LESS 7,19)
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234898 SCREW, HEXSCREW, HEX
-
43234309 SCREW, TORXSCREW, TORX
-
53234634 SCREW, HEXSCREW, HEX
-
63234755 PLUG, SOCKET HEADPLUG, SOCKET HEAD
-
77080307 CLAMP, HOSECLAMP, HOSE
-
83234330 PIN, DOWELPIN, DOWEL
-
93234790 SPRING, COMPRESSIONSPRING, COMPRESSION
-
103234689 GEARCASE, GTO COVERGEARCASE, GTO COVER
-
113235428 GEARCASE, MAINGEARCASE, MAIN
-
123235196 BELLEFT HANDOUSINGBELLEFT HANDOUSING
-
133234695 BULLET, DETENTBULLET, DETENT
-
143234230 TUBE, VENTTUBE, VENT
-
153234715 PLUG, DETENTPLUG, DETENT
-
163234765 PIPE, KNOCKPIPE, KNOCK
-
173234725 DEFLECTOR, OILDEFLECTOR, OIL
-
183234302 O-RINGO-RING
-
198450003-1525 LINE, FUELLINE, FUEL
-
203234892 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
213234729 O-RINGO-RING
-
224013908 SENSOR, SPEEDSENSOR, SPEED
-
233234769 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
