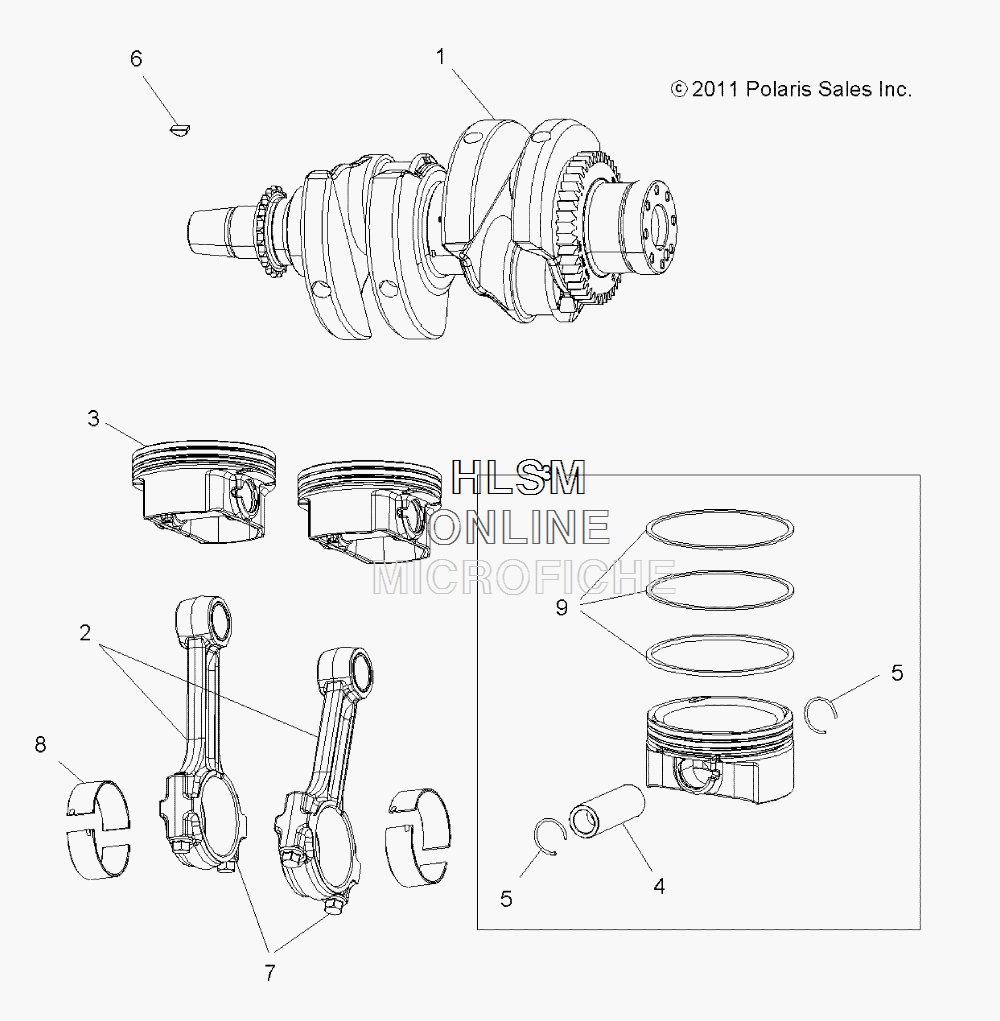

CRANKSHAFT W/ PISTONS для Polaris SCRAMBLER 850 XP HO/EPS INTL - VOODOO BLUE [A14GH8EFI] - 2014 года выпуска
-
№АртикулНазвание
-
12205283 KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS)KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS)
-
22204634 KIT, CONNECTING ROD (INCL. 7,8, ROD, CAP, BUSHING)KIT, CONNECTING ROD (INCL. 7,8, ROD, CAP, BUSHING)
-
27556569 BUSHING, PISTON PINBUSHING, PISTON PIN
-
32204958 KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)
-
43022345 PIN, PISTONPIN, PISTON
-
53022223 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
67721122 KEY, WOODRUFFKEY, WOODRUFF
-
77519263 BOLTBOLT
-
83514645 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83514645-015 BEARING, CONNECTING ROD, REDBEARING, CONNECTING ROD, RED
-
83514645-016 BEARING, CONNECTING ROD, WHITEBEARING, CONNECTING ROD, WHITE
-
83514645-027 BEARING, CONNECTING ROD, BLUEBEARING, CONNECTING ROD, BLUE
-
83514645-053 BEARING, CONNECTING ROD, YELLOWBEARING, CONNECTING ROD, YELLOW
-
92204959 KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)
