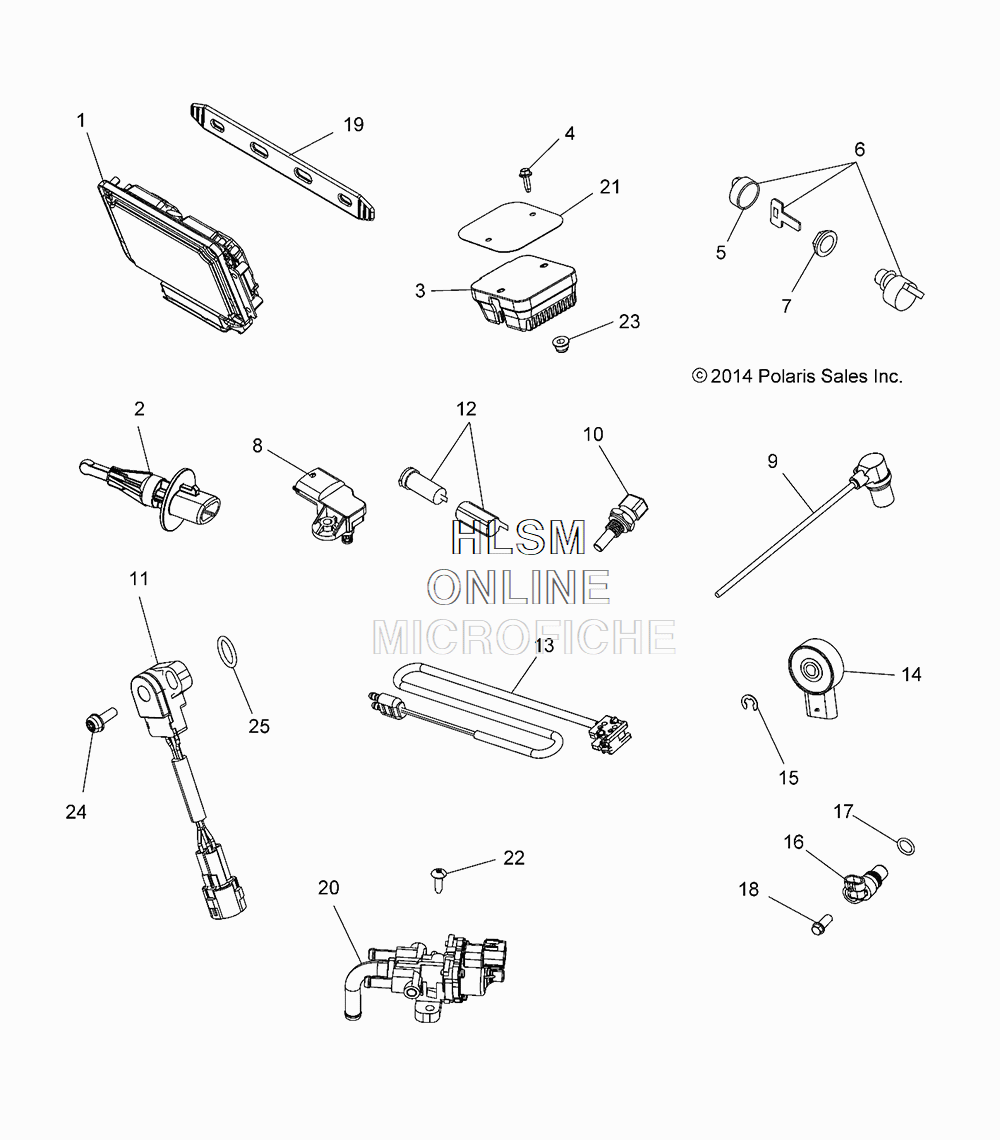

ELECTRICAL COMPONENTS для Polaris SCRAMBLER XP® 1000 HIGH LIFTER EDITION (STEALTH BLACK) [A16SXM95AL] - 2016 года выпуска
-
№АртикулНазвание
-
14012838 ECM, BASE, M17ECM, BASE, M17
-
22410687 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
34012678 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
47518529 SCREW, FLANGESCREW, FLANGE
-
55433534 COVER, KEYCOVER, KEY
-
64015033 SWITCH, KEY, 3 POSITION ((INCL. 5))SWITCH, KEY, 3 POSITION ((INCL. 5))
-
75433733 NUT, IGNITIONNUT, IGNITION
-
82411528 SENSOR, T-MAPSENSOR, T-MAP
-
87518576 SCREWSCREW
-
92411589 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
97518548 SCREWSCREW
-
104010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
112412634 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
124015439 RECEPTACLE, POD, 12 VRECEPTACLE, POD, 12 V
-
132202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
143233835 SWITCH ((GEAR POSITION))SWITCH ((GEAR POSITION))
-
153233834 RING, RETAININGRING, RETAINING
-
164013908 SENSOR, SPEEDSENSOR, SPEED
-
173234302 O-RINGO-RING
-
183234329 SCREWSCREW
-
195414193 STRAP, ECUSTRAP, ECU
-
204013313 VALVE, IACVALVE, IAC
-
202878507 KIT, HARNESS, IACKIT, HARNESS, IAC
-
215253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
227519045 SCREWSCREW
-
237547274 NUT, FLANGENUT, FLANGE
-
243131010 SCREWSCREW
-
253131729 O-RINGO-RING
