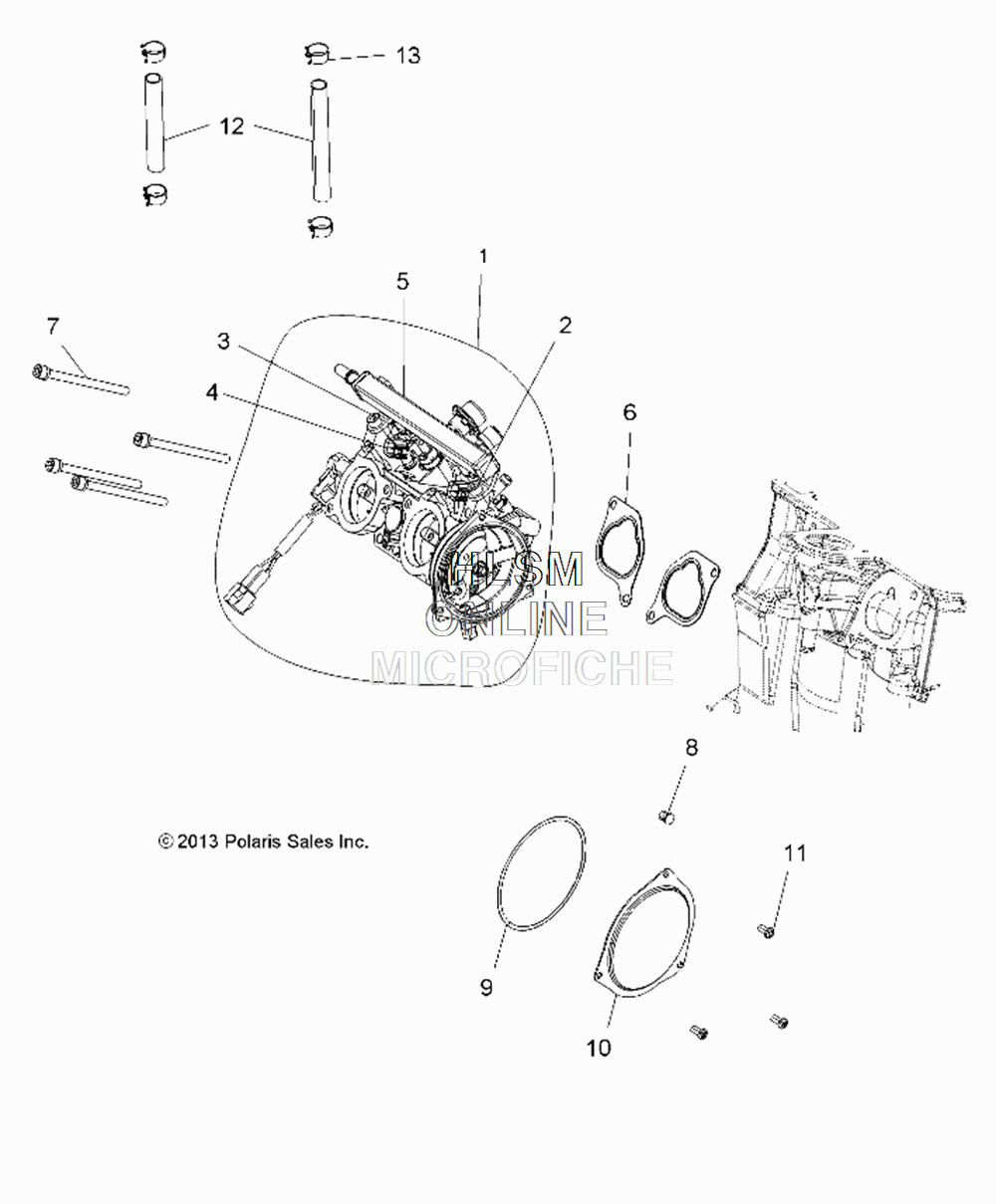

THROTTLE BODY для Polaris SCRAMBLER XP® 1000 HIGH LIFTER EDITION (STEALTH BLACK) [A16SXM95AL] - 2016 года выпуска
-
№АртикулНазвание
-
11204791 ASM., THROTTLE BODY ((INCL. 1-5, SENSORS))ASM., THROTTLE BODY ((INCL. 1-5, SENSORS))
-
23131716 BOLT, FUEL RAILBOLT, FUEL RAIL
-
33131725 CLIP, INJECTORCLIP, INJECTOR
-
41203568 INJECTORINJECTOR
-
65814296 GASKET, ITBGASKET, ITB
-
75137620 SCREWSCREW
-
83130543 GUIDE, CABLEGUIDE, CABLE
-
95413599 O-RING, THROTTLE CAM COVERO-RING, THROTTLE CAM COVER
-
105252518 COVER, THROTTLE CAM ((BUILT 12/11/15 AND BEFORE))COVER, THROTTLE CAM ((BUILT 12/11/15 AND BEFORE))
-
105262110 COVER, THROTTLE CAM ((BUILT 12/12/15 AND AFTER))COVER, THROTTLE CAM ((BUILT 12/12/15 AND AFTER))
-
117519292 SCREWSCREW
-
128450123-56 HOSE, FUELHOSE, FUEL
-
128450123-71 HOSE, FUELHOSE, FUEL
-
137080534 CLAMP, HOSECLAMP, HOSE
