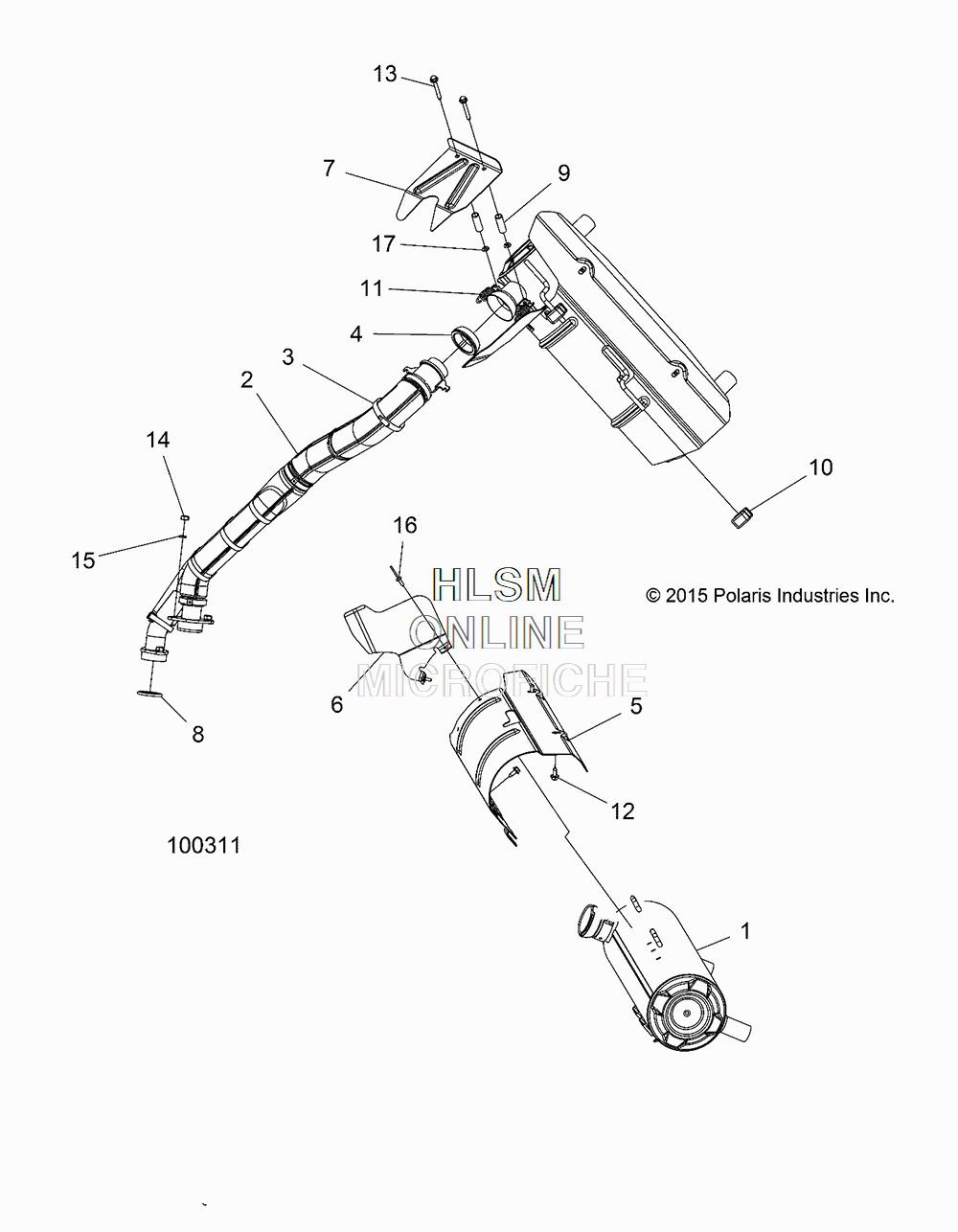

EXHAUST SYSTEM для Polaris SCRAMBLER XP® 1000 HIGH LIFTER EDITION (STEALTH BLACK) [A16SXM95AL] - 2016 года выпуска
-
№АртикулНазвание
-
11262231-489 WELD-EXHAUST SILENCER, BLACK ((DOES NOT INCLUDE SHIELD))WELD-EXHAUST SILENCER, BLACK ((DOES NOT INCLUDE SHIELD))
-
21262820 ASM-EXHAUST PIPE,TWIN ((INCLUDES SHIELDS, 3))ASM-EXHAUST PIPE,TWIN ((INCLUDES SHIELDS, 3))
-
37080809 CLAMP-WORM DRIVE,.44WX2.75 DIACLAMP-WORM DRIVE,.44WX2.75 DIA
-
43610179 SEAL-EXHAUSTSEAL-EXHAUST
-
55252266 SHIELD-BOX,STORAGESHIELD-BOX,STORAGE
-
65252515 SHIELD-EXHAUSTSHIELD-EXHAUST
-
75253865 SHIELD-EXHAUST SPRINGSHIELD-EXHAUST SPRING
-
85257995 GASKET-EXHAUST SEALING,46.50GASKET-EXHAUST SEALING,46.50
-
95336190 SPACER-EXHAUST SHIELD SPRINGSPACER-EXHAUST SHIELD SPRING
-
105413383 GROMMET-SILENCER MOUNTGROMMET-SILENCER MOUNT
-
117041789 SPRING-EXHAUSTSPRING-EXHAUST
-
127518513 BOLT-M6X1.0X15,HXFLG,TAP/R-ODBOLT-M6X1.0X15,HXFLG,TAP/R-OD
-
137519090 SCR-HXFL-M6X1.0X50 TDFM ZPBSCR-HXFL-M6X1.0X50 TDFM ZPB
-
147547076 NUT-HEX-M8X1.25 8 ZPB.NUT-HEX-M8X1.25 8 ZPB.
-
157556111 WASHER-LOCK M8X12.7ODX2MM ZY3WASHER-LOCK M8X12.7ODX2MM ZY3
-
167661637 RIVET-3/16-.090-.290RIVET-3/16-.090-.290
-
177670154 RETAINER-BOLT,1/4-20RETAINER-BOLT,1/4-20
