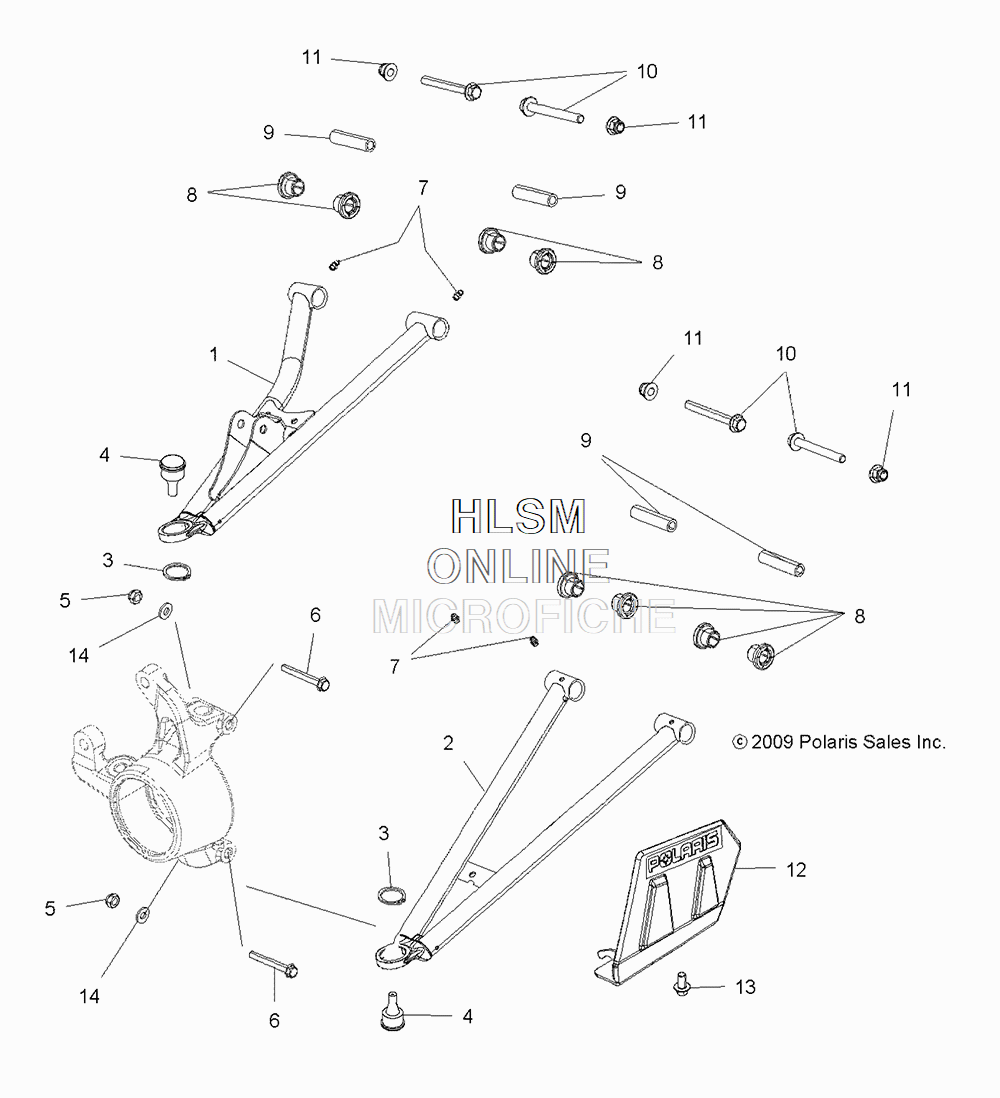

A-ARMS - FRONT для Polaris SCRAMBLER® XP 1000 (TITANIUM MATTE LIME) [A16SVE95AA] - 2016 года выпуска

№

Артикул

Название
1

1019808-630 WELD-UCA, FRONT, LH, LIME SQUEEZE ((AA))

WELD-UCA, FRONT, LH, LIME SQUEEZE ((AA))

27 040 ₽
1

1019809-630 WELD-UCA, FRONT, RH, LIME SQUEEZE ((AA))

WELD-UCA, FRONT, RH, LIME SQUEEZE ((AA))

27 040 ₽
2

1019810-630 WELD-LCA, FRONT, LH, LIME SQUEEZE ((AA))

WELD-LCA, FRONT, LH, LIME SQUEEZE ((AA))

20 800 ₽
2

1019811-630 WELD-LCA, FRONT, RH, LIME SQUEEZE ((AA))

WELD-LCA, FRONT, RH, LIME SQUEEZE ((AA))

20 800 ₽
3

7710533 RING, RETAINING

RING, RETAINING

630 ₽
4

7061220 JOINT, BALL

JOINT, BALL

13 520 ₽
5

7547405 NUT, NYLOK

NUT, NYLOK

150 ₽
6

7519212 SCREW, FLANGE

SCREW, FLANGE

460 ₽
7

7080433 FITTING, LUBRICATING

FITTING, LUBRICATING

250 ₽
8

5439874 BUSHING

BUSHING

630 ₽
9

5137346 SHAFT, A-ARM

SHAFT, A-ARM

2 710 ₽
10

7518466 BOLT, FLANGE

BOLT, FLANGE

630 ₽
11

7547313 NUT, FLANGE

NUT, FLANGE

250 ₽
12

5436657-070 SHIELD, CV, FRONT, LH, BLACK

SHIELD, CV, FRONT, LH, BLACK

1 460 ₽
12

5436658-070 SHIELD, CV, FRONT, RH, BLACK

SHIELD, CV, FRONT, RH, BLACK

1 460 ₽
13

7518529 SCREW

SCREW

250 ₽
14

7556557 WASHER

WASHER

150 ₽
