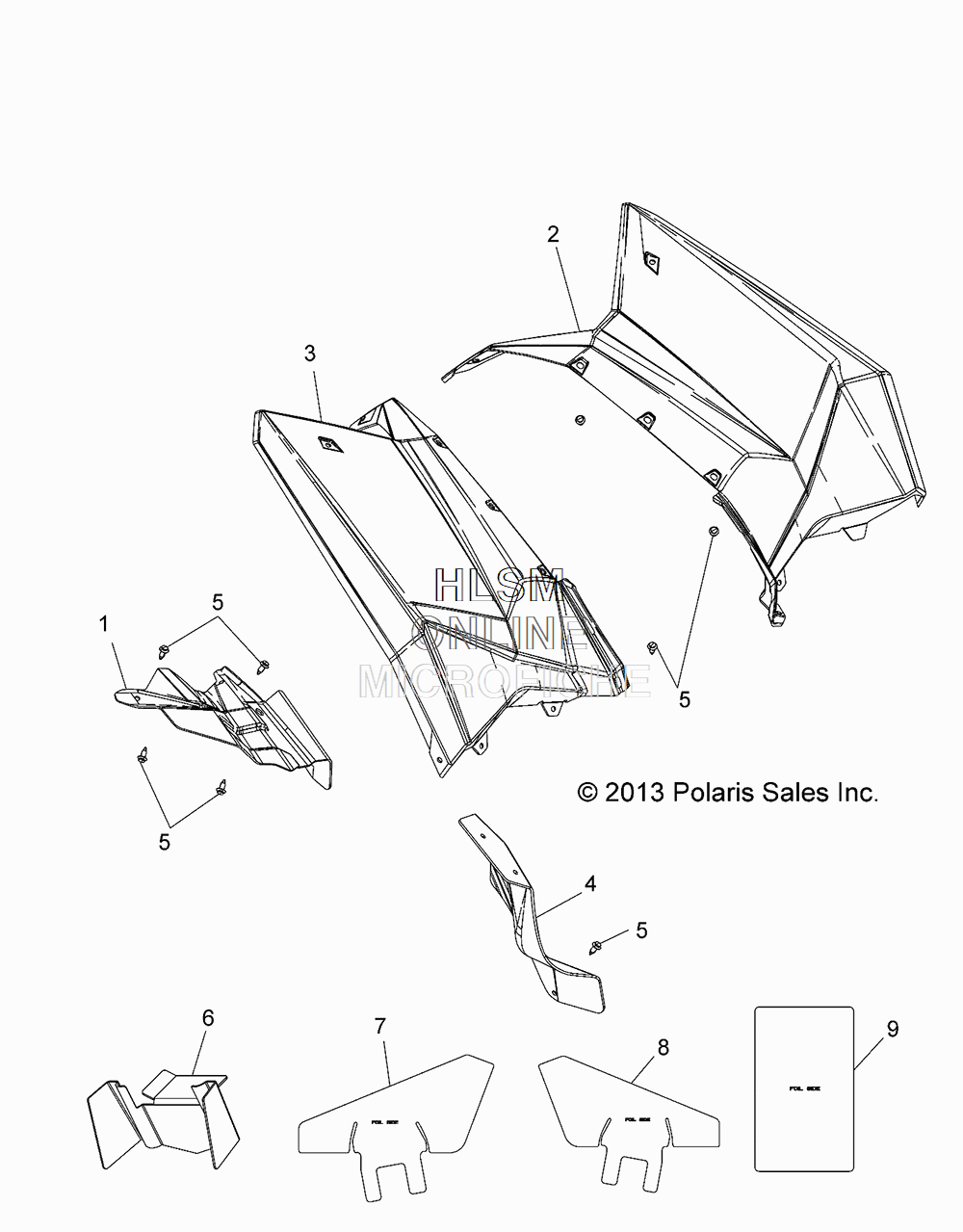

CAB - REAR - HEAT SHIELDS для Polaris SCRAMBLER® XP 1000 (TITANIUM MATTE LIME) [A16SVE95AA] - 2016 года выпуска
-
№АртикулНазвание
-
15256534 SHIELD, HEATSHIELD, HEAT
-
22635065-632 ASM-RR, CAB, LH, SCR, PNTD, M.TITAN ((INCL. WARNING DECALS))ASM-RR, CAB, LH, SCR, PNTD, M.TITAN ((INCL. WARNING DECALS))
-
35439706-632 CAB-RR, RH, SCR 850, PNTD, M.TITANCAB-RR, RH, SCR 850, PNTD, M.TITAN
-
45813924 FOIL, FIBER, BOX, REARFOIL, FIBER, BOX, REAR
-
57661855 RIVETRIVET
-
65259457 SHIELD, HEAT, EXHAUST, CROSSTUBESHIELD, HEAT, EXHAUST, CROSSTUBE
-
75814111 SHIELD, HEAT, FOIL, STORAGE, LHSHIELD, HEAT, FOIL, STORAGE, LH
-
85814112 SHIELD, HEAT, FOIL, STORAGE, RHSHIELD, HEAT, FOIL, STORAGE, RH
-
95814113 SHIELD, HEAT, FOIL, FRAMESHIELD, HEAT, FOIL, FRAME
