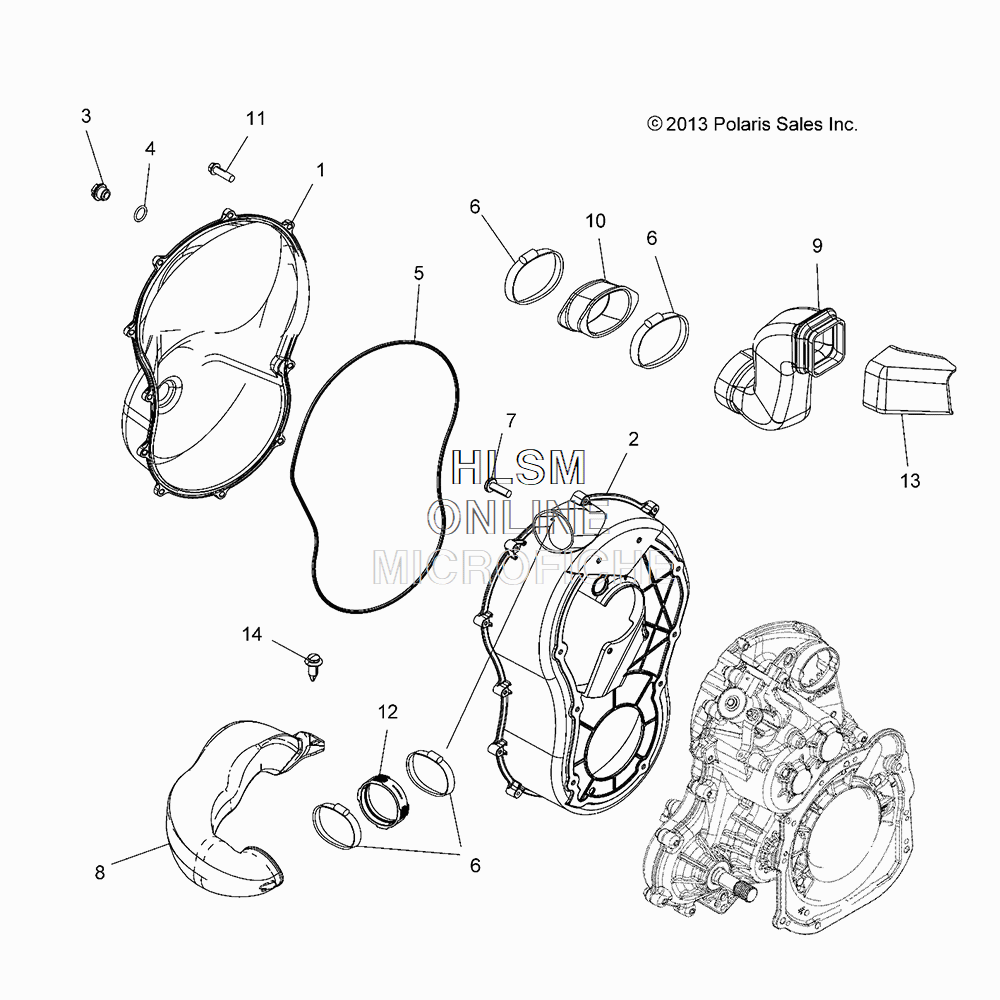

CLUTCH COVER для Polaris SCRAMBLER® XP 1000 (TITANIUM MATTE LIME) [A16SVE95AA] - 2016 года выпуска
-
№АртикулНазвание
-
12633919 ASM., COVER, OUTER ((INCL. OUTER COVER, 3, 4))ASM., COVER, OUTER ((INCL. OUTER COVER, 3, 4))
-
25438127 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
35434264 PLUG, DRAINPLUG, DRAIN
-
45410542 O-RINGO-RING
-
55521802 SEAL, COVER, CLUTCHSEAL, COVER, CLUTCH
-
67081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
77518914 SCREWSCREW
-
82635427 ASM., CLUTCH DUCT, OUTLETASM., CLUTCH DUCT, OUTLET
-
95436820 DUCT, AIR INLETDUCT, AIR INLET
-
105413177 BOOT, CLUTCH, INLETBOOT, CLUTCH, INLET
-
117519849 SCREWSCREW
-
125415255 BOOT, OUTLET, DUCTBOOT, OUTLET, DUCT
-
135413516 BOOT, INLET, DUCTBOOT, INLET, DUCT
-
147621509 RIVETRIVET
