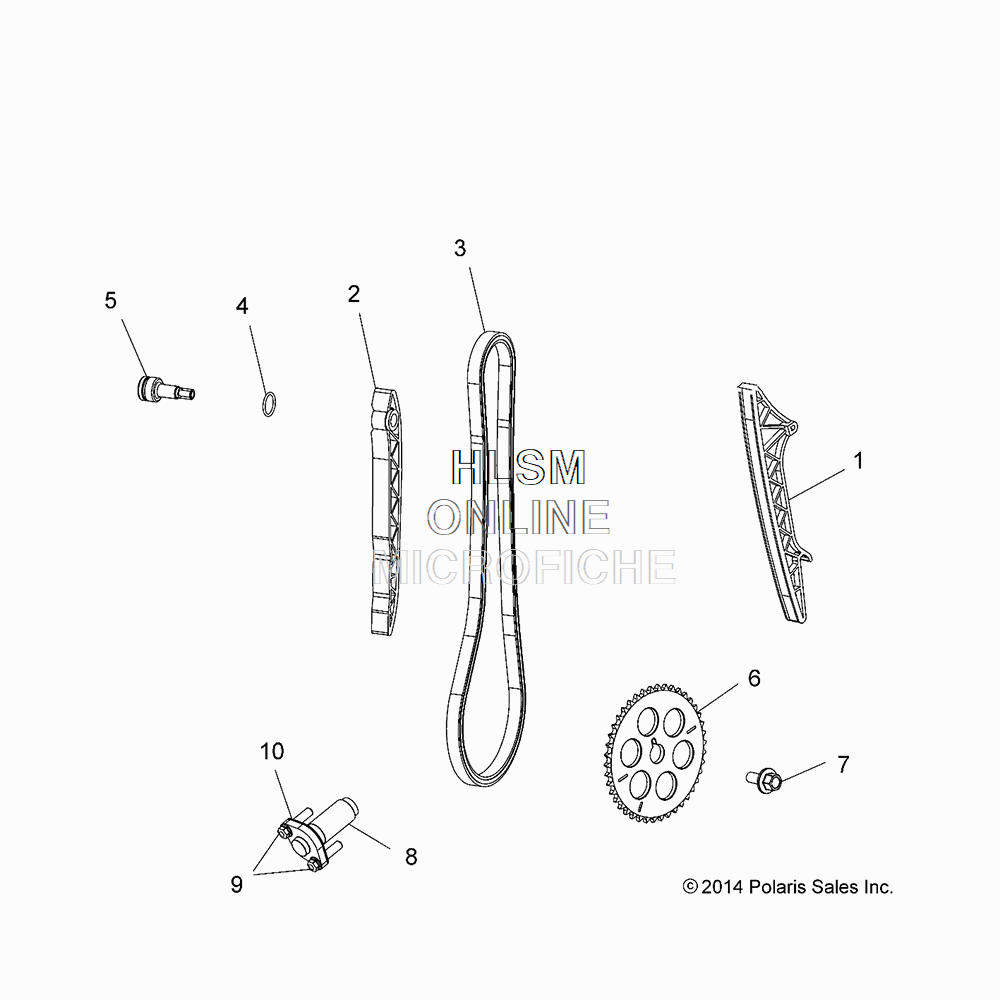

CAM CHAIN AND TENSIONER для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска
-
№АртикулНазвание
-
13022595 GUIDE, FIXEDGUIDE, FIXED
-
23022596 ASM., BLADE CAM DRIVEASM., BLADE CAM DRIVE
-
33222223 CHAIN, CAMSHAFT ROLLERCHAIN, CAMSHAFT ROLLER
-
45412002 O-RINGO-RING
-
55136831 BOLT, SHOULDERBOLT, SHOULDER
-
63222224 SPROCKET, 42TSPROCKET, 42T
-
77518574 SCREWSCREW
-
81205157 ASM-TENSIONER W/GASKET ((INCL. 8,9,10))ASM-TENSIONER W/GASKET ((INCL. 8,9,10))
-
83022597 TENSIONER, HYDRAULIC W/COVER LGBTENSIONER, HYDRAULIC W/COVER LGB
-
97520107 SCREWSCREW
-
105813135 GASKET, TENSIONER COVERGASKET, TENSIONER COVER
