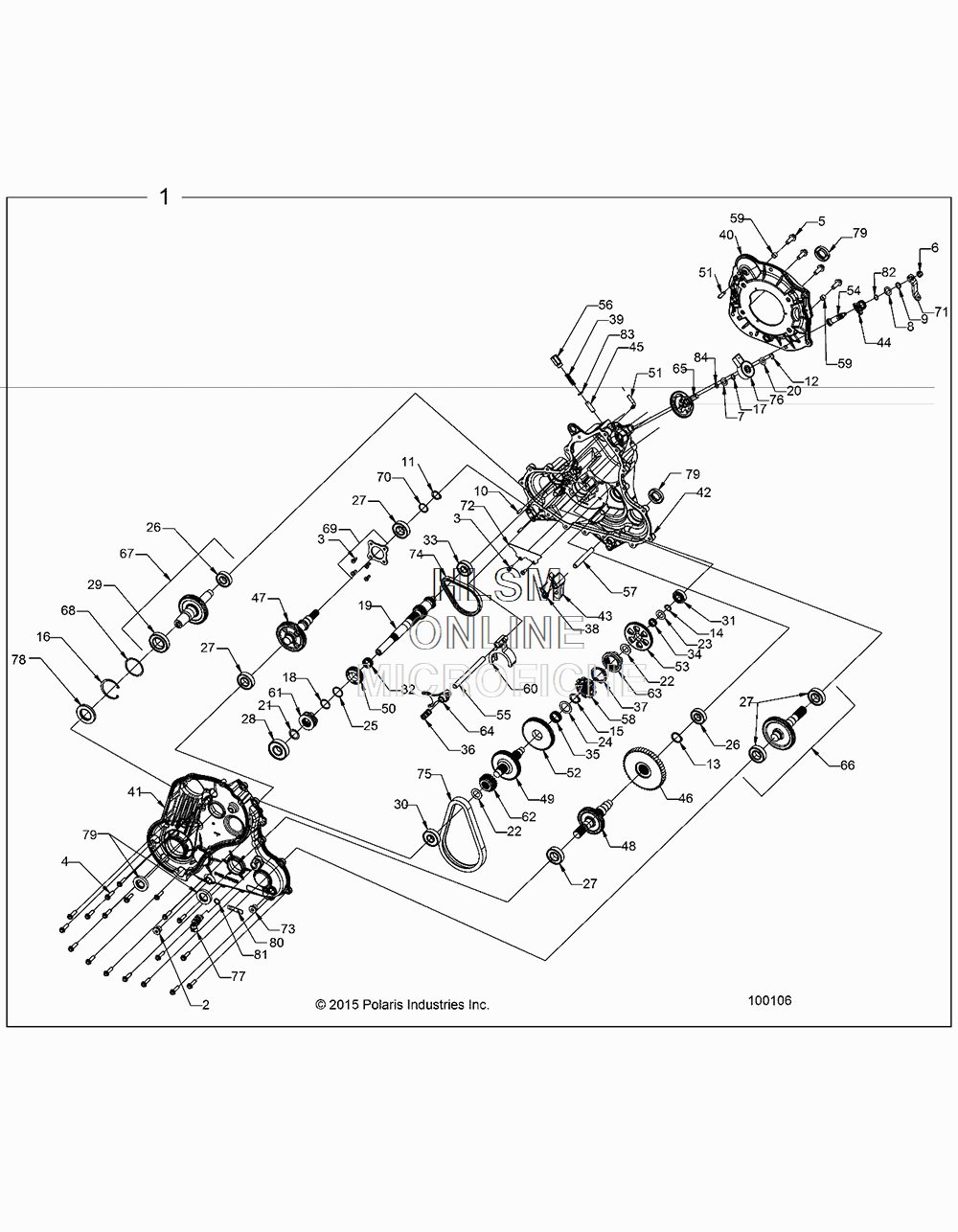

GEARCASE для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска
-
№АртикулНазвание
-
11333361 ASM-TRANS,BOSS/LUK,SUPLOWASM-TRANS,BOSS/LUK,SUPLOW
-
23234756 PLUG, M18 X 1.5 MAGNETICPLUG, M18 X 1.5 MAGNETIC
-
33234309 SCREW, TORX PAN HD M6 X 1 X 16SCREW, TORX PAN HD M6 X 1 X 16
-
43234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
53234634 SCREW, HEX FLANGE HEAD M10 X 1.5 X 30SCREW, HEX FLANGE HEAD M10 X 1.5 X 30
-
63233961 NUT, LOCK HEX FLANGE NYLON 5/16-24NUT, LOCK HEX FLANGE NYLON 5/16-24
-
73234636 WASHER, THRUST .500 X .937 X .063WASHER, THRUST .500 X .937 X .063
-
83234637 WASHER, THRUST .625 X 1.000 X .063WASHER, THRUST .625 X 1.000 X .063
-
93235508 WASHER, RIBBEDWASHER, RIBBED
-
103234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
113233106 RING, RETAINING BASIC EXTERNAL .984RING, RETAINING BASIC EXTERNAL .984
-
123233834 RING, SNAPRING, SNAP
-
133233699 RING RETAINING, IRR 7200-118RING RETAINING, IRR 7200-118
-
143234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
153234327 RING, RETAINING BASIC EXTERNAL SHR-106RING, RETAINING BASIC EXTERNAL SHR-106
-
163234741 RING, RETAINING BASIC INTERNAL, 62MMRING, RETAINING BASIC INTERNAL, 62MM
-
173234639 RING, RETAINING BASIC EXTERNAL, SHR-50RING, RETAINING BASIC EXTERNAL, SHR-50
-
183234641 RING, RETAINING EXTERNAL USC-112RING, RETAINING EXTERNAL USC-112
-
193235063 SHAFT, INPUT 25T REMSHAFT, INPUT 25T REM
-
203234642 WASHER, THRUST .446 X .88 X .025WASHER, THRUST .446 X .88 X .025
-
213234248 WASHER, THRUST 1.300 X .995 X .065WASHER, THRUST 1.300 X .995 X .065
-
223234643 SHIM, 1.35 OD X .818 IDSHIM, 1.35 OD X .818 ID
-
233234644 SHIM, 1.170 OD X .675 IDSHIM, 1.170 OD X .675 ID
-
243234646 WASHER, THRUST 1.568 OD X .1.110 IDWASHER, THRUST 1.568 OD X .1.110 ID
-
253234757 WASHER, THRUST DIA. 33 X DIA. 29 X 1.5WASHER, THRUST DIA. 33 X DIA. 29 X 1.5
-
263233018 BEARING, BALL, 6204 C3 20X47X14BEARING, BALL, 6204 C3 20X47X14
-
273233019 BEARING, BALL, 6205 C3 25X52X15BEARING, BALL, 6205 C3 25X52X15
-
283233020 BEARING, BALL, 6305 C3, 25 X 62 X 17BEARING, BALL, 6305 C3, 25 X 62 X 17
-
293233265 BEARING BALL 6007 C3 35 X 62 X 14BEARING BALL 6007 C3 35 X 62 X 14
-
303234651 BEARING, BALL, 6304 C3 20X52X15BEARING, BALL, 6304 C3 20X52X15
-
313234274 BEARING, BALL, 6203 C3 17X40X12BEARING, BALL, 6203 C3 17X40X12
-
323234759 BEARING, NEEDLE, SPLIT CAGEBEARING, NEEDLE, SPLIT CAGE
-
333234652 BEARING, BALL 6303, 17 X 47 X 14BEARING, BALL 6303, 17 X 47 X 14
-
343234655 BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10
-
353234656 BEARING, NEEDLE, 28 X 33 X 13BEARING, NEEDLE, 28 X 33 X 13
-
363234687 SPRING, COMPRESSION, .648 O.D. X 1.33SPRING, COMPRESSION, .648 O.D. X 1.33
-
373234688 SPRING, WAVE, 1.60 ID X .375SPRING, WAVE, 1.60 ID X .375
-
383234787 SPRING, PARK PAWL TORSIONSPRING, PARK PAWL TORSION
-
393234790 SPRING, COMPRESSION .450 OD X 1.58SPRING, COMPRESSION .450 OD X 1.58
-
403235196 BELLHOUSING, MACHBELLHOUSING, MACH
-
413235729 GEARCASE GTO , COVER, MACH.GEARCASE GTO , COVER, MACH.
-
423235615 GEARCASE, MAIN, GTO MACHGEARCASE, MAIN, GTO MACH
-
433234692 PAWL, PARKPAWL, PARK
-
443234694 GEAR, SECTOR 38TGEAR, SECTOR 38T
-
453234695 BULLET, DETENTBULLET, DETENT
-
462204332 SPROCKET, 47 TOOTHSPROCKET, 47 TOOTH
-
473235194 SHAFT, INPUTSHAFT, INPUT
-
483235195 SHAFT, OUTPUT REARSHAFT, OUTPUT REAR
-
493235612 SHAFT, REVERSE 61TSHAFT, REVERSE 61T
-
503235613 GEAR, HELICAL 33TGEAR, HELICAL 33T
-
513234230 TUBE, VENT, 90 -1/4'' HOSETUBE, VENT, 90 -1/4'' HOSE
-
523234706 GEAR, 67TGEAR, 67T
-
533234707 SPROCKET 48T, 6-FACESPROCKET 48T, 6-FACE
-
543234712 SHAFT, SHIFT BELLCRANKSHAFT, SHIFT BELLCRANK
-
553234714 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
563234715 PLUG, DETENTPLUG, DETENT
-
573234716 RAIL, PARK SHAFTRAIL, PARK SHAFT
-
583234718 DOG, ENGAGEMENT GTO, LOWDOG, ENGAGEMENT GTO, LOW
-
593234765 KNOCK PIPEKNOCK PIPE
-
603234766 FORK, SHIFTFORK, SHIFT
-
613235190 DOG, ENGAGEMENT GTO, HIGHDOG, ENGAGEMENT GTO, HIGH
-
622204331 SPROCKET, 19TSPROCKET, 19T
-
633235341 DOG, ENGAGEMENT GTO, REV/LOWDOG, ENGAGEMENT GTO, REV/LOW
-
643235342 FORK, SHIFTFORK, SHIFT
-
653234767 SUBASSY, SWITCH SHAFTSUBASSY, SWITCH SHAFT
-
663234723 SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)
-
673235191 SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#26 AND #29)SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#26 AND #29)
-
682204268 KIT, GTO, PRIMARY SHIM PACKKIT, GTO, PRIMARY SHIM PACK
-
693535198 SUBASSY BEARING COVER W/SCREWS (#3)SUBASSY BEARING COVER W/SCREWS (#3)
-
702204343 KIT, LUK INPUT SHAFT PACKKIT, LUK INPUT SHAFT PACK
-
713234724 BELLCRANK, 15T SPLINEBELLCRANK, 15T SPLINE
-
723234725 DEFLECTOR, OILDEFLECTOR, OIL
-
733234755 PLUG, M18 X 1.5PLUG, M18 X 1.5
-
743234737 CHAIN, SILENT, TYPE 101, .25P X .40W X 58LCHAIN, SILENT, TYPE 101, .25P X .40W X 58L
-
753235245 CHAIN SILENT, .75 X .375 X 64PCHAIN SILENT, .75 X .375 X 64P
-
763233835 SWITCH, ROTARY 6-PIN ITWSWITCH, ROTARY 6-PIN ITW
-
774012167 SENSOR, SPEEDSENSOR, SPEED
-
783234769 SEAL, 35 X 62 X 8SEAL, 35 X 62 X 8
-
793234892 SEAL, TRIPLE LIP 0.984X1.850X0.315 VITONSEAL, TRIPLE LIP 0.984X1.850X0.315 VITON
-
802877606 LABEL, OILLABEL, OIL
-
813234302 O-RING, -113O-RING, -113
-
823233828 O-RING, -014 VITONO-RING, -014 VITON
-
833234729 O-RING, .530 I.D X .082 WIDEO-RING, .530 I.D X .082 WIDE
-
843234730 O-RING - N70, 9.5 MM X 2 MMO-RING - N70, 9.5 MM X 2 MM
