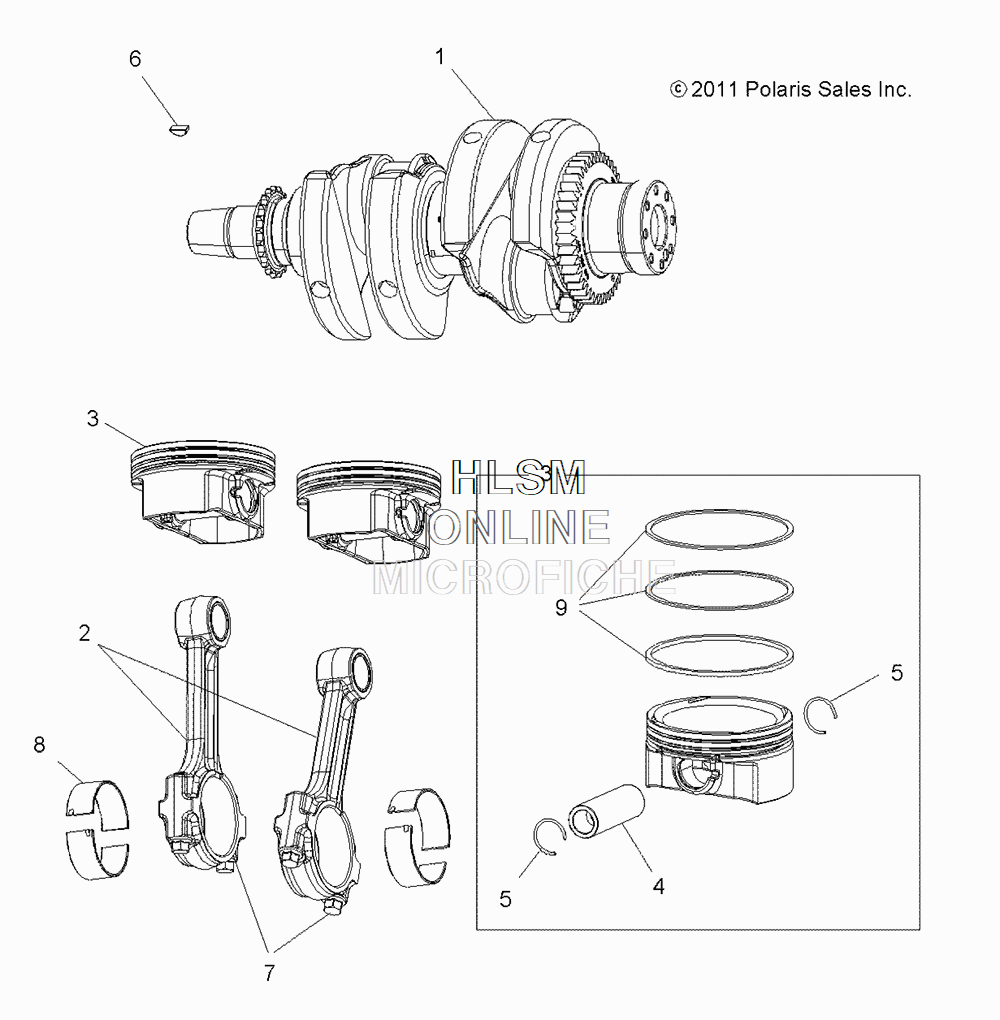

CRANKSHAFT W/ CYLINDER для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска
-
№АртикулНазвание
-
12205283 KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/6/15 AND AFTER))KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/6/15 AND AFTER))
-
12204233 KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/5/15 AND BEFORE))KIT, CRANKSHAFT ((INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/5/15 AND BEFORE))
-
22204634 KIT, CONNECTING ROD ((INCL. 7,8, ROD, CAP, BUSHING))KIT, CONNECTING ROD ((INCL. 7,8, ROD, CAP, BUSHING))
-
27556569 BUSHING, PISTON PINBUSHING, PISTON PIN
-
32204958 KIT, PISTON ((INCL. PISTON, PIN, CLIPS, ALL RINGS))KIT, PISTON ((INCL. PISTON, PIN, CLIPS, ALL RINGS))
-
43022345 PIN, PISTONPIN, PISTON
-
53022223 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
67721122 KEY, WOODRUFFKEY, WOODRUFF
-
77519263 BOLTBOLT
-
83514645 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83514645-015 BEARING, CONNECTING ROD, REDBEARING, CONNECTING ROD, RED
-
83514645-016 BEARING, CONNECTING ROD, WHITEBEARING, CONNECTING ROD, WHITE
-
83514645-027 BEARING, CONNECTING ROD, BLUEBEARING, CONNECTING ROD, BLUE
-
83514645-053 BEARING, CONNECTING ROD, YELLOWBEARING, CONNECTING ROD, YELLOW
-
92204959 KIT, PISTON RINGS ((CONTAINS UPPER, LOWER, OIL CONTROL RING))KIT, PISTON RINGS ((CONTAINS UPPER, LOWER, OIL CONTROL RING))
