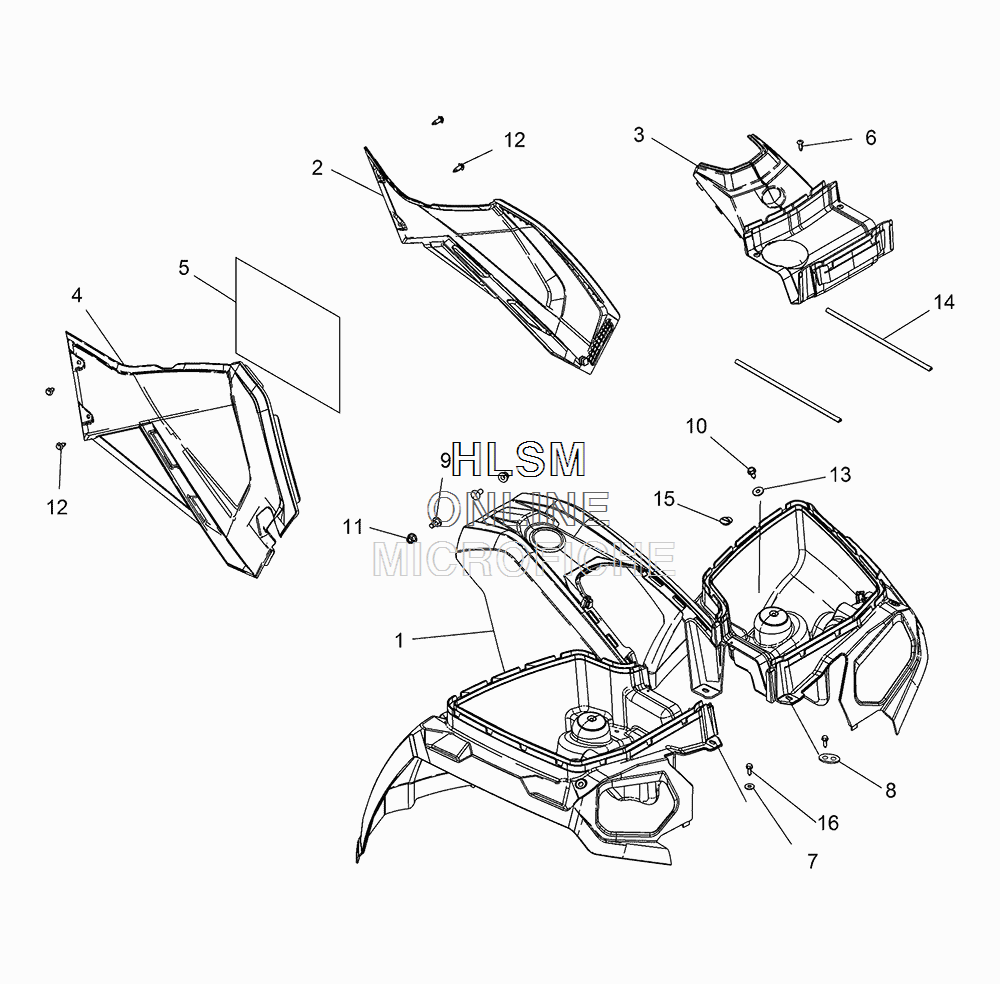

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN® X2 570 EPS (INDY RED) [A16SWE57A7] - 2016 года выпуска
-
№АртикулНазвание
-
12634163-293 ASM., CAB, FRONT, INDY RED ((A7) (INCL.WARNING DECALS))ASM., CAB, FRONT, INDY RED ((A7) (INCL.WARNING DECALS))
-
25450530-293 PANEL, SIDE, LH, INDY RED ((A7))PANEL, SIDE, LH, INDY RED ((A7))
-
35439069-293 COVER, FRONT, INDY RED ((A7))COVER, FRONT, INDY RED ((A7))
-
42635299-293 ASM., PANEL/FOIL, RH, INDY RED ((A7) (INCL. 5))ASM., PANEL/FOIL, RH, INDY RED ((A7) (INCL. 5))
-
55814317 FOIL, SIDE PANELFOIL, SIDE PANEL
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
167512232 SCREWSCREW
