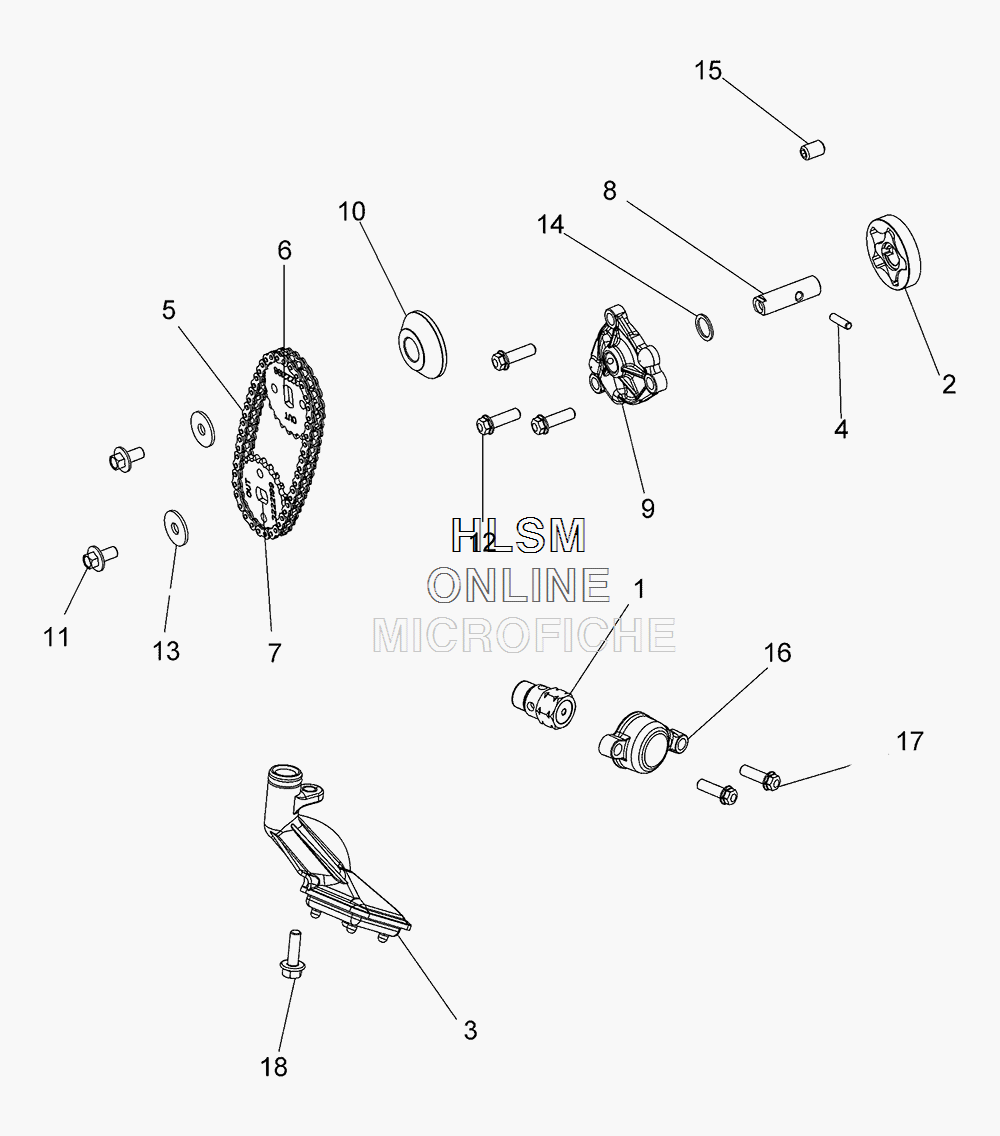

OIL PUMP для Polaris SPORTSMAN® X2 570 EPS (INDY RED) [A16SWE57A7] - 2016 года выпуска
-
№АртикулНазвание
-
12521459 ASM., REGULATOR VALVEASM., REGULATOR VALVE
-
21204293 ASM., GEROTORASM., GEROTOR
-
32521451 PICKUP, OILPICKUP, OIL
-
43022308 PIN, SOLIDPIN, SOLID
-
53222216 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
63222198 SPROCKET, 23T, DRIVESPROCKET, 23T, DRIVE
-
73222199 SPROCKET, 21T, DRIVENSPROCKET, 21T, DRIVEN
-
85138077 SHAFT, OIL PUMPSHAFT, OIL PUMP
-
95138320 COVER, OIL PUMPCOVER, OIL PUMP
-
105137451 SPACER, SPROCKETSPACER, SPROCKET
-
117517257 SCREWSCREW
-
127518576 SCREWSCREW
-
137556054 WASHERWASHER
-
147556570 WASHERWASHER
-
152540080 JET, OIL, OIL PUMPJET, OIL, OIL PUMP
-
165138339 COVERCOVER
-
177518576 SCREWSCREW
-
187516822 SCREWSCREW
