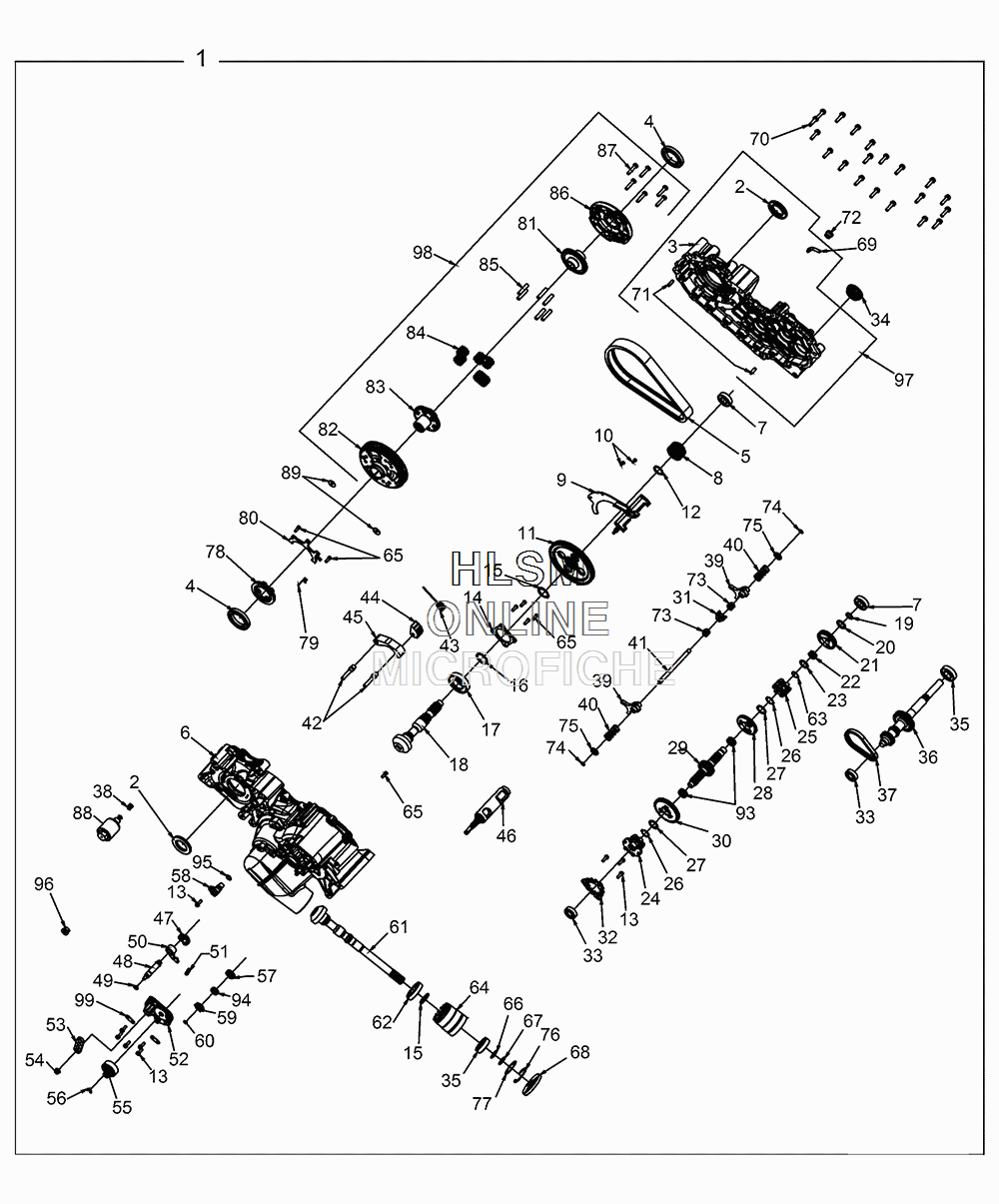

GEARCASE для Polaris SPORTSMAN® X2 570 EPS (INDY RED) [A16SWE57A7] - 2016 года выпуска
-
№АртикулНазвание
-
11333475 ASM-TRANS,PDS,DIFF,BOSS ((INCL. ALL))ASM-TRANS,PDS,DIFF,BOSS ((INCL. ALL))
-
23234300 SEAL, TRIPLE LIP 40 X 70 X 7SEAL, TRIPLE LIP 40 X 70 X 7
-
33234260 COVER, LEFT HAND MACHCOVER, LEFT HAND MACH
-
43234275 BEARING, BALL 6010 C3 50 X 80 X 10BEARING, BALL 6010 C3 50 X 80 X 10
-
53234057 CHAIN, SILENT, 17 WIDE X 1 X 86PCHAIN, SILENT, 17 WIDE X 1 X 86P
-
63235593 CASE, RIGHT HAND MACHCASE, RIGHT HAND MACH
-
73233018 BEARING, BALL, 6204 C3 20X47X14BEARING, BALL, 6204 C3 20X47X14
-
83234060 SPROCKET 19TSPROCKET 19T
-
93234061 DEFLECTOR, OILDEFLECTOR, OIL
-
103233749 SCREW, TAPPING TORX, 11902 X 0.5SCREW, TAPPING TORX, 11902 X 0.5
-
113234062 GEAR OUTPUT 91TGEAR OUTPUT 91T
-
123233699 RTNG RING, REAR 7200-118RTNG RING, REAR 7200-118
-
133234247 SCREW, TAPPING HEX 43834 UNC X 0.75SCREW, TAPPING HEX 43834 UNC X 0.75
-
143234063 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
153233364 RING, RETAININGRING, RETAINING
-
163234271 SHIM 1.700 X 1.385SHIM 1.700 X 1.385
-
173234065 BEARING, BALL 6207BEARING, BALL 6207
-
183234263 PINION, 13T CENTER DRIVEPINION, 13T CENTER DRIVE
-
193234067 RING, RETAINING SHR-75RING, RETAINING SHR-75
-
203233176 WASHER THRUST, 1.270 X 0.793 X 0.065WASHER THRUST, 1.270 X 0.793 X 0.065
-
213235783 GEAR, HELICAL-35TGEAR, HELICAL-35T
-
223233009 BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10
-
233233855 WASHER, 1.250 X 0.876 X 0.05WASHER, 1.250 X 0.876 X 0.05
-
243234257 DOG, L/PDOG, L/P
-
253234258 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
263233306 RING, RETAINING BASIC EXT 0.938RING, RETAINING BASIC EXT 0.938
-
273234248 WASHER, THRUST 1.300 X 0.995 X 0.065WASHER, THRUST 1.300 X 0.995 X 0.065
-
283234290 SPROCKET, 38T 6-FACESPROCKET, 38T 6-FACE
-
293234280 SHAFT, REVERSE 26TSHAFT, REVERSE 26T
-
303234291 GEAR, 33T 6-FACEGEAR, 33T 6-FACE
-
313234073 COLLAR, SHIFTCOLLAR, SHIFT
-
323233915 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
333234274 BEARING, BALL 6203 17 X 40 X 12BEARING, BALL 6203 17 X 40 X 12
-
343234851 SEAL, DUAL LIP 25 X 47SEAL, DUAL LIP 25 X 47
-
353233019 BEARING, BALL 6205 C3 25 X 52 X 15BEARING, BALL 6205 C3 25 X 52 X 15
-
363235782 SHAFT, INPUT-39T BOSSSHAFT, INPUT-39T BOSS
-
373234264 SILENT CHAIN, .25P X 0.4 W X 50LSILENT CHAIN, .25P X 0.4 W X 50L
-
383234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
393234077 FORK, SHIFTFORK, SHIFT
-
403234078 COMPRESSION, SPRING .92 O.D X 2COMPRESSION, SPRING .92 O.D X 2
-
413234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
423233432 PINPIN
-
433233431 TORSION SPRINGTORSION SPRING
-
443233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
453233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
463234360 DRUM, SHIFTDRUM, SHIFT
-
473233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
483233831 SHAFT, SHIFTSHAFT, SHIFT
-
493233869 O-RING, -014O-RING, -014
-
503233829 PAWL, DETENTPAWL, DETENT
-
513234578 SPRING, COMPRESSION DETENTSPRING, COMPRESSION DETENT
-
523234188 COVER, SECTOR GEAR MACHCOVER, SECTOR GEAR MACH
-
533234584 BELLCRANK, .510 HOLE 92~BELLCRANK, .510 HOLE 92~
-
543233961 NUT, LOCK, HEX FLANGE NYLON 45428NUT, LOCK, HEX FLANGE NYLON 45428
-
557661999 SWITCH, ROTARY 2-PIN ITWSWITCH, ROTARY 2-PIN ITW
-
563233834 RING, RETAINING, BASIC EXT.RING, RETAINING, BASIC EXT.
-
573233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
584013908 SENSOR, SPEEDSENSOR, SPEED
-
593233909 STAR, DETENTSTAR, DETENT
-
603233076 O-RING, -012O-RING, -012
-
613234262 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
623233265 BEARING, BALL 6007 C3 35 X 62 X 14BEARING, BALL 6007 C3 35 X 62 X 14
-
633234336 RING, RETAINING BASIC EXT N 22RING, RETAINING BASIC EXT N 22
-
643234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
653234086 SCREW, TORX PAN HD 43834 X 0.75SCREW, TORX PAN HD 43834 X 0.75
-
663234272 SHIM 1.180 X 0.995SHIM 1.180 X 0.995
-
673233106 RING, RETAININGRING, RETAINING
-
683234113 SEAL, TRIPLE LIP, 25 X 80 X 10SEAL, TRIPLE LIP, 25 X 80 X 10
-
693234230 TUBE, VENT 90~ 1/4'' LINETUBE, VENT 90~ 1/4'' LINE
-
703234114 SCREW, TAPPING, HEX WASHER HDSCREW, TAPPING, HEX WASHER HD
-
713234244 PIN, DOWEL 5/16 X 1PIN, DOWEL 5/16 X 1
-
723233794 PLUG, 3/4-16 HOLLOW HEXPLUG, 3/4-16 HOLLOW HEX
-
733234089 COMPRESSION, SPRINGCOMPRESSION, SPRING
-
743234090 RETAINING, RINGRETAINING, RING
-
753234091 WASHER, CUPWASHER, CUP
-
763234269 RING, RETAININGRING, RETAINING
-
773234273 SHIM, 2.040 X 1.63SHIM, 2.040 X 1.63
-
783234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
793234276 TORSION SPRINGTORSION SPRING
-
803234285 FORK, SHIFTFORK, SHIFT
-
813234363 SIDE, GEAR 36T, SUBASSEMBLYSIDE, GEAR 36T, SUBASSEMBLY
-
823234470 CARRIER SUBASSEMBLYCARRIER SUBASSEMBLY
-
833234362 SIDE, GEAR 36T DISCONNECT, SUBASSEMBLYSIDE, GEAR 36T DISCONNECT, SUBASSEMBLY
-
843234469 GEAR SUBASSEMBLYGEAR SUBASSEMBLY
-
853234238 PIN, DOWEL 10 X 45PIN, DOWEL 10 X 45
-
863234471 COVERSUBASSEMBLYCOVERSUBASSEMBLY
-
873234267 SCREW, CAP HH 45428 X 1.5SCREW, CAP HH 45428 X 1.5
-
883235478 SOLENOIDSOLENOID
-
893234268 WASHER, FENDER .284X1.363X.048WASHER, FENDER .284X1.363X.048
-
933233103 BEARING, NEEDLE 25 X 29 X 10BEARING, NEEDLE 25 X 29 X 10
-
943235243 SPACERSPACER
-
953234302 O-RING, -113O-RING, -113
-
963234529 MAGNETIC PLUG, 3/4-16 INTERNAL HEXMAGNETIC PLUG, 3/4-16 INTERNAL HEX
-
973235595 SUBASSEMBLY PDS LHCOVERSUBASSEMBLY PDS LHCOVER
-
983235594 1 INCH PDS1 INCH PDS
-
993235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
