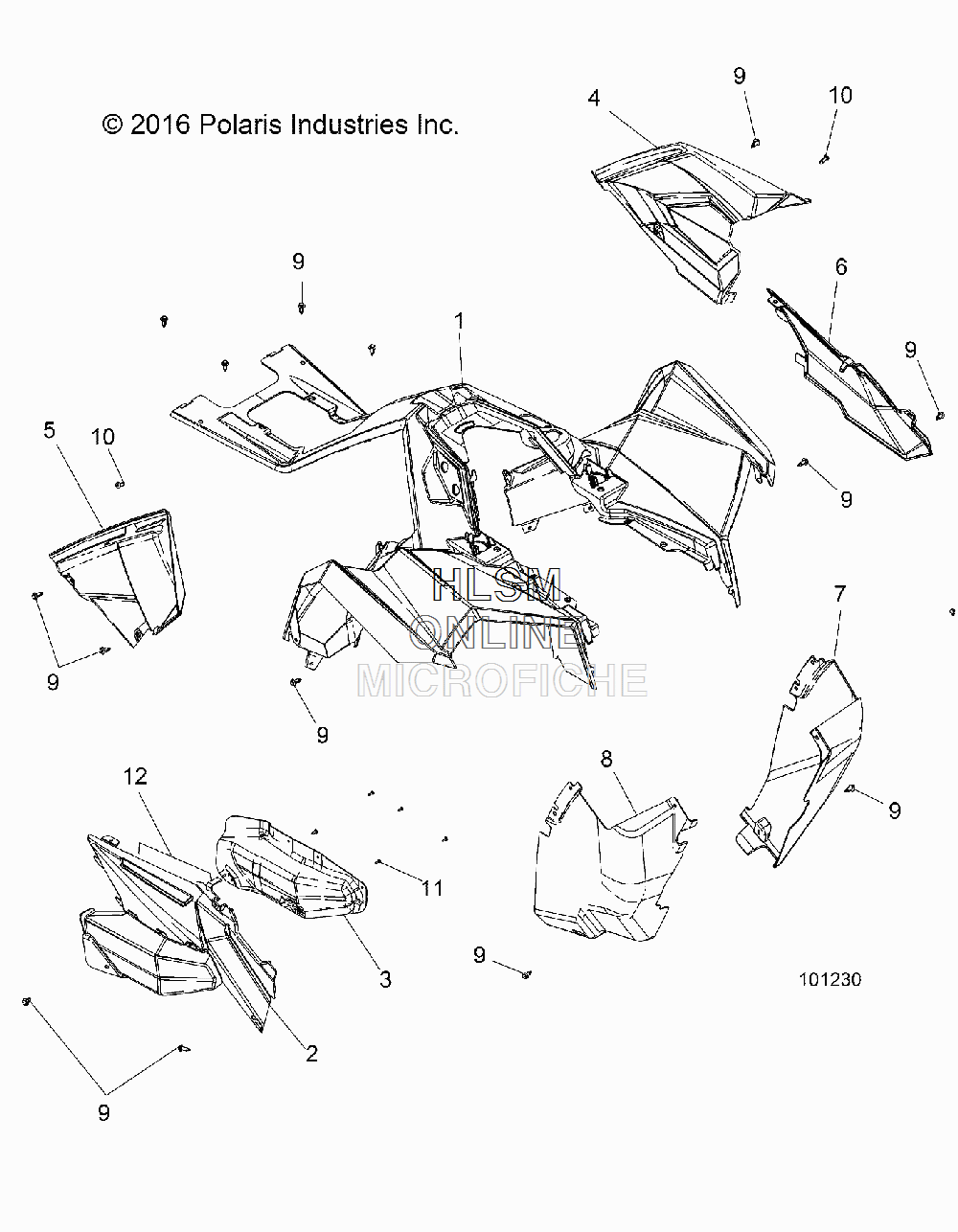

CAB - FRONT W/ SIDE PANELS для Polaris SCRAMBLER 1000 TRACTOR TITANIUM METALLIC [A17SVS95CM] - 2017 года выпуска
-
№АртикулНазвание
-
12636134-632 ASM-CAB FR,TRC,1 OC,PNT,M.TTN [INCL. WARNING DECALS]ASM-CAB FR,TRC,1 OC,PNT,M.TTN [INCL. WARNING DECALS]
-
12881953 K-FRONT MUD GUARDS,SCRM,1000,BLKK-FRONT MUD GUARDS,SCRM,1000,BLK
-
25451832-070 PANEL-SIDE,LOWER,RH,BLKPANEL-SIDE,LOWER,RH,BLK
-
35264199 SHIELD-HEAT,EXHAUST,RHSHIELD-HEAT,EXHAUST,RH
-
45439321-070 PANEL, SIDE, UPPER, LH, BLACKPANEL, SIDE, UPPER, LH, BLACK
-
55439322-070 PANEL, SIDE, UPPER, RH, BLACKPANEL, SIDE, UPPER, RH, BLACK
-
65439323-070 PANEL, SIDE, LOWER, LH, BLACKPANEL, SIDE, LOWER, LH, BLACK
-
68360164-460 TRIM-EDGE,SCRM,8MTRIM-EDGE,SCRM,8M
-
75437062-070 GUARD, MUD, FRONT, LH, BLACKGUARD, MUD, FRONT, LH, BLACK
-
85437063-070 GUARD, MUD, FRONT, RH, BLACKGUARD, MUD, FRONT, RH, BLACK
-
97661855 RIVETRIVET
-
107519045 SCREWSCREW
-
117512076 SCR-#10X1/2-HI/LO-TRX-YSCR-#10X1/2-HI/LO-TRX-Y
-
125814214 FOIL-SHIELD,CLUTCH-DUCTFOIL-SHIELD,CLUTCH-DUCT
