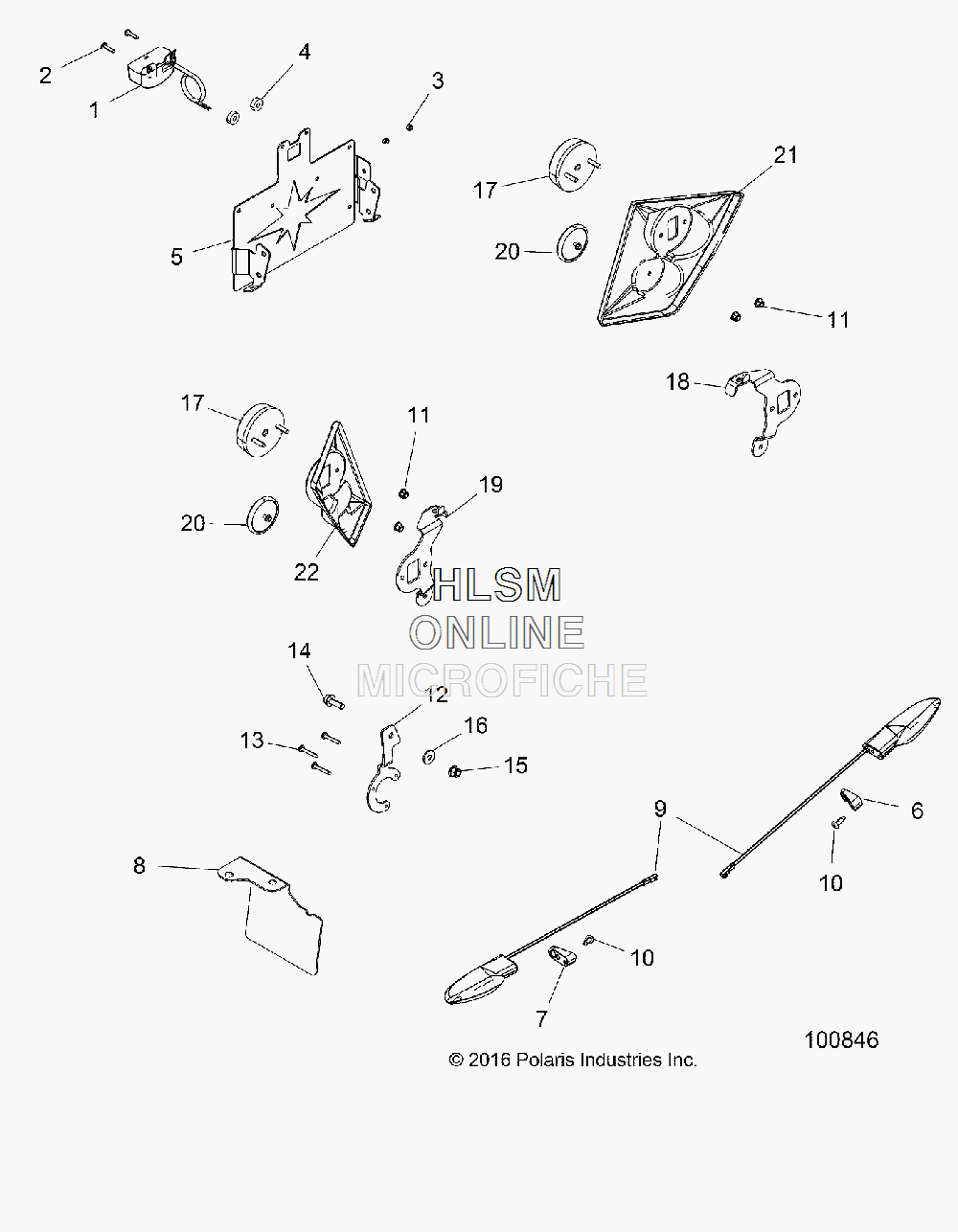

TURN SIGNALS AND LICENSE PLATE для Polaris SCRAMBLER 1000 TRACTOR TITANIUM METALLIC [A17SVS95CM] - 2017 года выпуска
-
№АртикулНазвание
-
12411278 LIGHT-LICENSE PLATE,TRACTR,BLKLIGHT-LICENSE PLATE,TRACTR,BLK
-
27512018 SCR-#10-24X3/4,PN/TR RD-TORX-YSCR-#10-24X3/4,PN/TR RD-TORX-Y
-
37546601 NUT-M5X.8,HX NYL-YNUT-M5X.8,HX NYL-Y
-
47555932 WASHER-.28 X.75 X.25-NYLON-BWASHER-.28 X.75 X.25-NYLON-B
-
55263375-458 BRKT-LIC.PLATE,RR,SCRM,TRC,BLKBRKT-LIC.PLATE,RR,SCRM,TRC,BLK
-
65416070 SUPPORT-FRONT,SIGNAL,SCRM,LHSUPPORT-FRONT,SIGNAL,SCRM,LH
-
75416071 SUPPORT-FRONT,SIGNAL,SCRM,RHSUPPORT-FRONT,SIGNAL,SCRM,RH
-
85261971-458 BRKT-VIN,PLATE,M.BLKBRKT-VIN,PLATE,M.BLK
-
92413531 SIGNAL-TURN,FRONT,TRSIGNAL-TURN,FRONT,TR
-
107519248 SCR-TXPH-M6X1.0X25 8.8 ZCSCR-TXPH-M6X1.0X25 8.8 ZC
-
117547274 NUT-M6 FLANGE,NYLOCNUT-M6 FLANGE,NYLOC
-
125263450-458 BRKT-TRAILER SOCKET,M.BLKBRKT-TRAILER SOCKET,M.BLK
-
137512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
-
147518514 SCR-HXFL-M8X1.25X25 8.8 ZODSCR-HXFL-M8X1.25X25 8.8 ZOD
-
157547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
167555960 WASHER-.327X.875X.090,FL-YWASHER-.327X.875X.090,FL-Y
-
175813106 FOIL-AIRBOX FOR USE RH SIDE 2413655FOIL-AIRBOX FOR USE RH SIDE 2413655
-
185263175-458 BRKT-SCRM,TAIL LIGHT,LH,M.BLKBRKT-SCRM,TAIL LIGHT,LH,M.BLK
-
195263176-458 BRKT-SCRM,TAIL LIGHT,RH,M.BLKBRKT-SCRM,TAIL LIGHT,RH,M.BLK
-
205452126 REFLECTOR-RED,CIRCLEREFLECTOR-RED,CIRCLE
-
215453665 PANEL-TAILLIGHT,SCRM,EU,LHPANEL-TAILLIGHT,SCRM,EU,LH
-
225453666 PANEL-TAILLIGHT,SCRM,EU,RHPANEL-TAILLIGHT,SCRM,EU,RH
