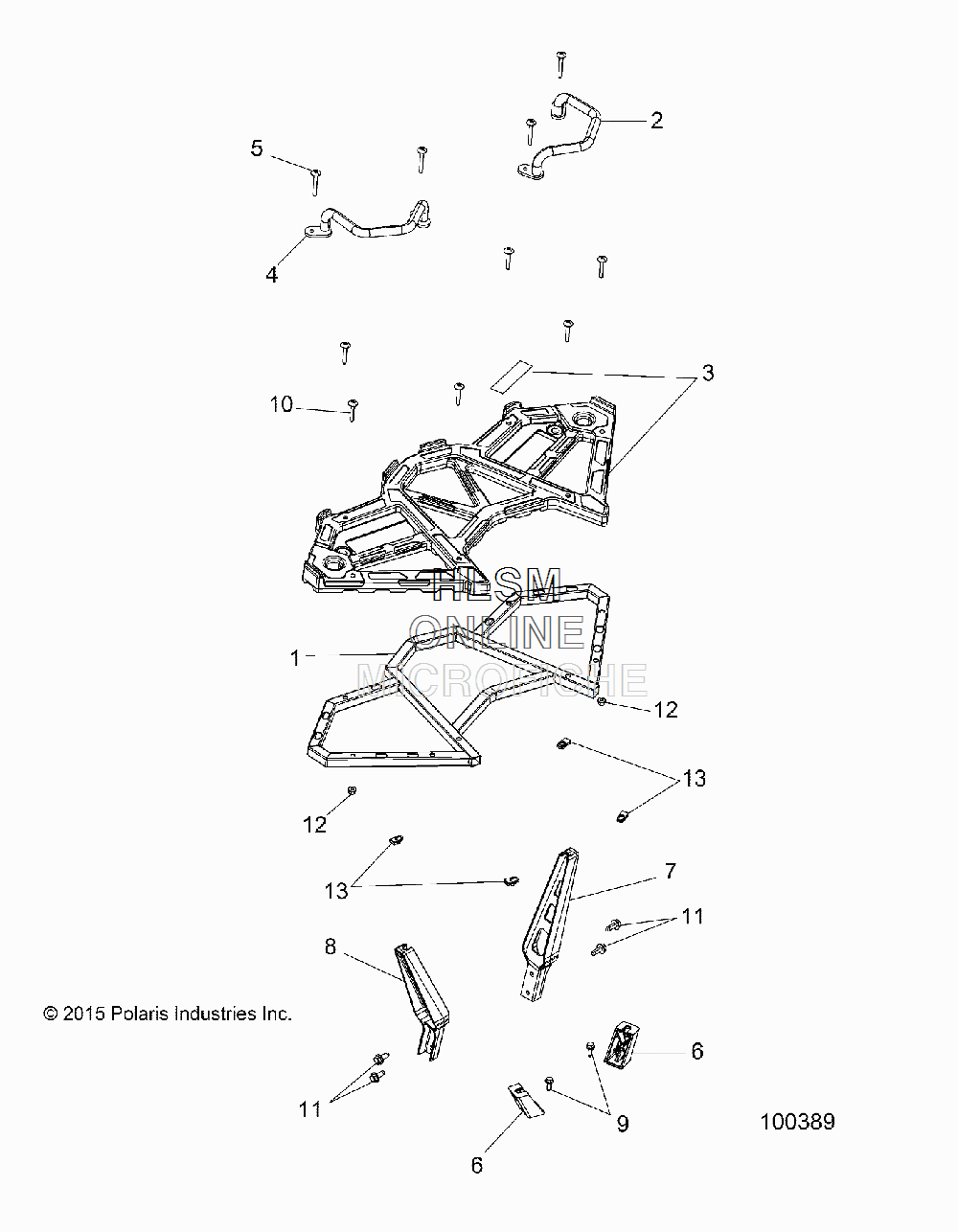

RACK - REAR для Polaris SCRAMBLER 1000 TRACTOR TITANIUM METALLIC [A17SVS95CM] - 2017 года выпуска
-
№АртикулНазвание
-
11018901-329 RACK, REAR, BLACKRACK, REAR, BLACK
-
21021597-458 WELD-HAND GRIP,PASS,LH,M.BLKWELD-HAND GRIP,PASS,LH,M.BLK
-
32635754-070 ASM-RACK,REAR,EU,BLK [INCL. WARNING DECAL]ASM-RACK,REAR,EU,BLK [INCL. WARNING DECAL]
-
41021598-458 WELD-HAND GRIP,PASS,RH,M.BLKWELD-HAND GRIP,PASS,RH,M.BLK
-
57519220 SCR-TXTH-M6X1.0X50, 8.8, ZPBSCR-TXTH-M6X1.0X50, 8.8, ZPB
-
65632708 BRACKET, RACK SUPPORT, FRONTBRACKET, RACK SUPPORT, FRONT
-
65632708 BRACKET, RACK SUPPORT, FRONTBRACKET, RACK SUPPORT, FRONT
-
75632709 BRACKET RACK SUPPORT, REAR, LHBRACKET RACK SUPPORT, REAR, LH
-
85632710 BRACKET RACK SUPPORT, REAR, RHBRACKET RACK SUPPORT, REAR, RH
-
97518529 SCREWSCREW
-
107519001 SCREWSCREW
-
117519780 SCREWSCREW
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137547366 CLIP, UCLIP, U
