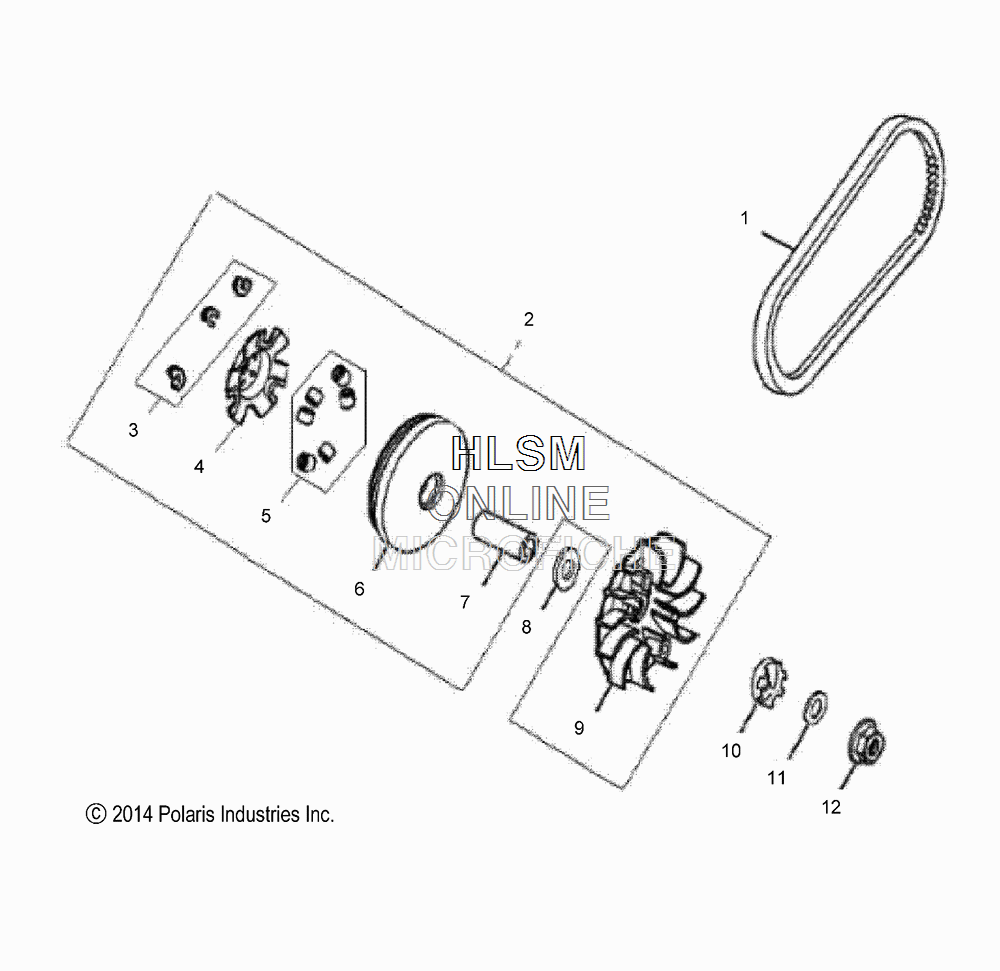

CLUTCH - PRIMARY для Polaris PHOENIX 200 (AVALANCHE GREY) [A18YAP20A8] - 2018 года выпуска
-
№АртикулНазвание
-
10452496 BELT, DRIVEBELT, DRIVE
-
20452465 ASM., DRIVE CLUTCH [INCL. 3-7,9]ASM., DRIVE CLUTCH [INCL. 3-7,9]
-
30455004 BUSHING, SLIDE,PHOENIXBUSHING, SLIDE,PHOENIX
-
40452472 PLATE, SHEAVEPLATE, SHEAVE
-
50455005 ASM., ROLLER,PHOENIXASM., ROLLER,PHOENIX
-
60452468 ASM., SHEAVEASM., SHEAVE
-
70453756 SHAFT, DRIVESHAFT, DRIVE
-
80454864 SPACER, CVTSPACER, CVT
-
90452466 SHEAVE, MOVEABLE, DRIVESHEAVE, MOVEABLE, DRIVE
-
100452474 BUSHING, KICK STARTBUSHING, KICK START
-
110452792 WASHER, PLAINWASHER, PLAIN
-
120450529 NUT, FLANGENUT, FLANGE
