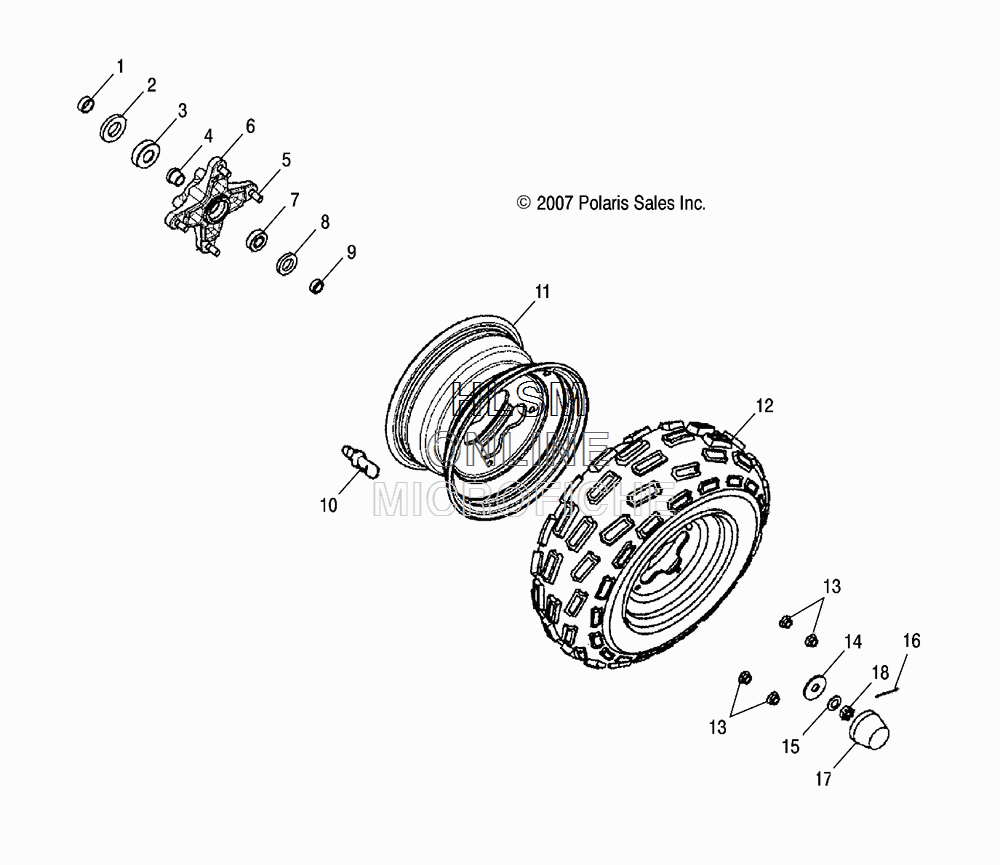

WHEEL - FRONT для Polaris PHOENIX 200 (AVALANCHE GREY) [A18YAP20A8] - 2018 года выпуска
-
№АртикулНазвание
-
10453005 SPACER, COLLAR, INSIDESPACER, COLLAR, INSIDE
-
20453008 SEAL, OIL, OUTSIDESEAL, OIL, OUTSIDE
-
30454238 BEARING, BALLBEARING, BALL
-
40453006 SPACER, COLLAR, CENTERSPACER, COLLAR, CENTER
-
50453054 BOLT, STUD, WHEELBOLT, STUD, WHEEL
-
60452273 ASM., HUB, FRONT [INCL. 5]ASM., HUB, FRONT [INCL. 5]
-
70453004 BEARING, BALLBEARING, BALL
-
80453003 SEAL, OILSEAL, OIL
-
90453007 SPACER, COLLAR, OUTSIDESPACER, COLLAR, OUTSIDE
-
100450401 VALVE, RIMVALVE, RIM
-
110453000-067 RIM, WHEEL,PHOENIX, BLACKRIM, WHEEL,PHOENIX, BLACK
-
120452786 TIRE, DURO, 21X7-10TIRE, DURO, 21X7-10
-
130453213 NUT, LOCKNUT, LOCK
-
140453001 WASHER, FLATWASHER, FLAT
-
150452663 WASHERWASHER
-
160450395 PIN, COTTERPIN, COTTER
-
170452661 CAP, HUBCAP, HUB
-
180453002 NUTNUT
Все узлы модели:
- AIR INTAKE SYSTEM
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER - FRONT
- CAB - SEAT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CRANKCASE
- CRANKCASE COVER- LEFT HAND
- CRANKCASE COVER- RIGHT
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MANUAL - OWNERS
- STARTING MOTOR W/ GENERATOR
- STEERING POST W/ TIE RODS
- SUSPENSION - A-ARM W/ FOOTREST
- SUSPENSION - SHOCKS
- SWING ARM
- TRANSMISSION - DRIVE CHAIN
- • WHEEL - FRONT
- WHEEL - REAR
