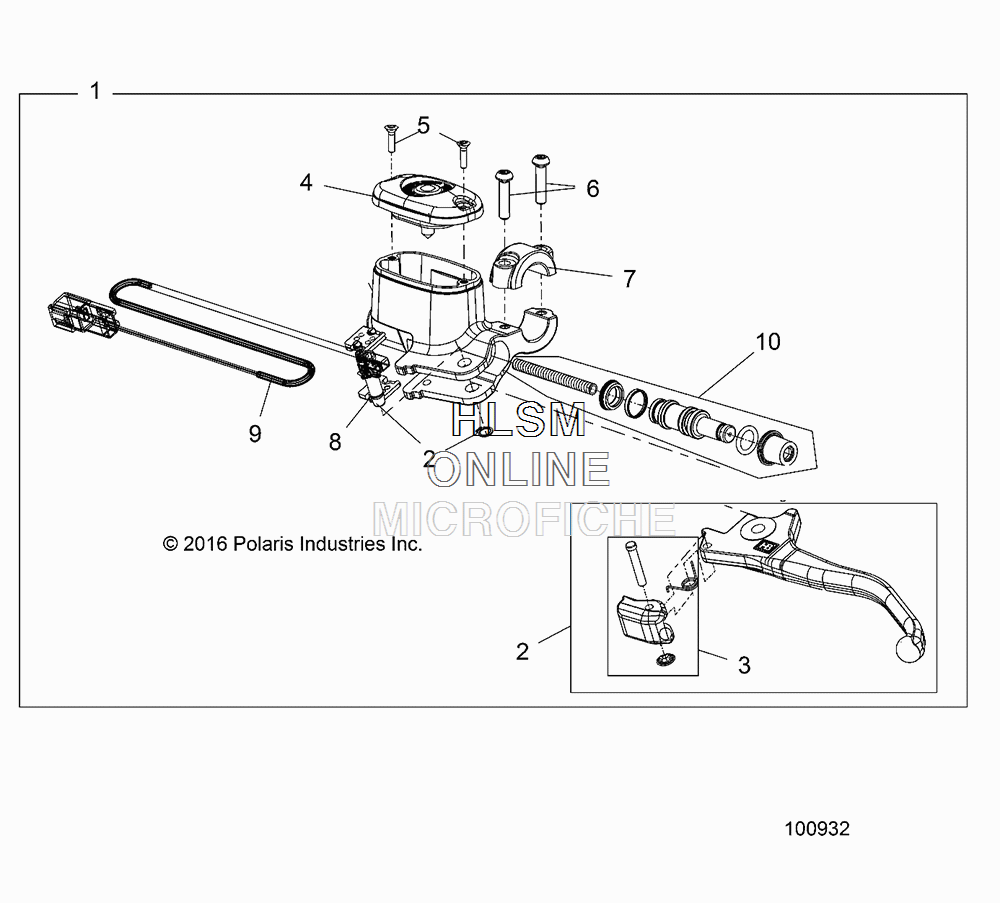

BRAKE - FRONT MASTER CYLINDER для Polaris SCRAMBLER 1000 TRACTOR (HAVASU RED PEARL) [A18SVS95CR] - 2018 года выпуска
-
№АртикулНазвание
-
12010444 ASM-M/CYL, HB, 11/16 IN, SW, B/U-RING (INCL. ALL)ASM-M/CYL, HB, 11/16 IN, SW, B/U-RING (INCL. ALL)
-
22203053 KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)
-
32203054 KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)
-
42203055 KIT, MASTER CYLINDER COVER (INCL. COVER W/SEAL)KIT, MASTER CYLINDER COVER (INCL. COVER W/SEAL)
-
52203056 KIT, SCREW, COVER (INCL. 2 SCREWS)KIT, SCREW, COVER (INCL. 2 SCREWS)
-
62203093 KIT, CLAMP, 11/16 IN (INCL. CLAMP ONLY)KIT, CLAMP, 11/16 IN (INCL. CLAMP ONLY)
-
72203058 KIT, SCREW, CLAMP (INCL. 2 SCREWS)KIT, SCREW, CLAMP (INCL. 2 SCREWS)
-
82203059 KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER, PIN, SNAP RING)KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER, PIN, SNAP RING)
-
92206566 SWITCH, STOP LIGHTSWITCH, STOP LIGHT
-
102206551 KIT, PISTON, 11/16 IN (INCL. PISTON, SEALS, SPRING, BODY)KIT, PISTON, 11/16 IN (INCL. PISTON, SEALS, SPRING, BODY)
