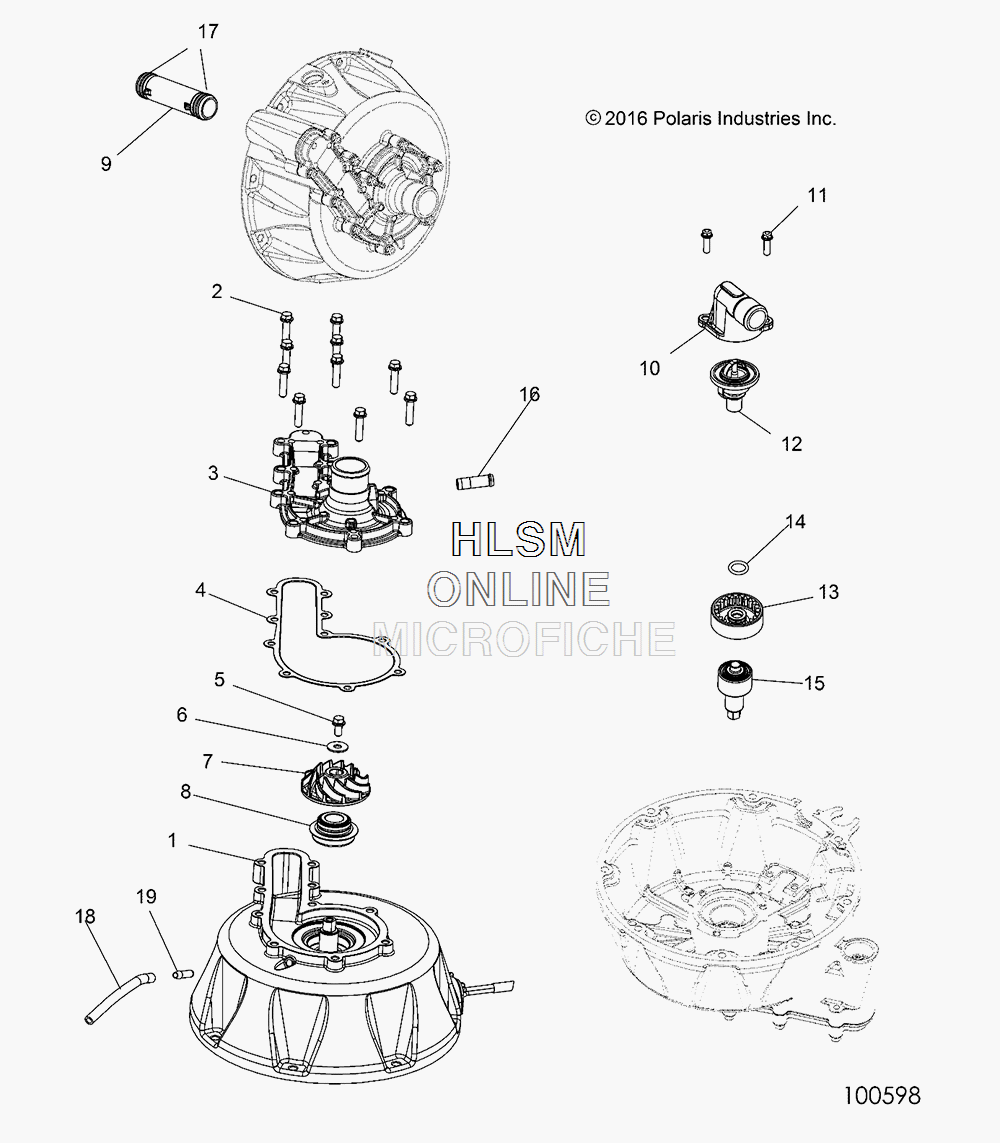

COOLING SYSTEM - WATER PUMP для Polaris SCRAMBLER 1000 TRACTOR (HAVASU RED PEARL) [A18SVS95CR] - 2018 года выпуска
-
№АртикулНазвание
-
15140038 COVER-STATOR W/ WATERPUMPCOVER-STATOR W/ WATERPUMP
-
27518855 SCREWSCREW
-
32204955 COVER, WATER PUMP (INCL. COVER, FITTING, GASKET)COVER, WATER PUMP (INCL. COVER, FITTING, GASKET)
-
45412954 GASKET, COVERGASKET, COVER
-
57518854 BOLTBOLT
-
67556451 WASHER, FLATWASHER, FLAT
-
75632427 IMPELLER, WATER PUMP, CAST, 60MMIMPELLER, WATER PUMP, CAST, 60MM
-
83610136 SEAL, 16MMSEAL, 16MM
-
95453707 TUBE, WATER TRANSFER (INCL. O-RINGS)TUBE, WATER TRANSFER (INCL. O-RINGS)
-
105632606 COVER, THERMOSTATCOVER, THERMOSTAT
-
117518576 SCREWSCREW
-
127052561 THERMOSTAT, 180 DEGTHERMOSTAT, 180 DEG
-
125413948 SEAL, THERMOSTATSEAL, THERMOSTAT
-
135140079 COUPLER-SPLINE INT WP BEARINGCOUPLER-SPLINE INT WP BEARING
-
145414286 O-RINGO-RING
-
153514921 BEARING-W/SHAFT, WATERPUMP OPCBEARING-W/SHAFT, WATERPUMP OPC
-
175412955 O-RINGO-RING
-
188360077 TUBING, NYLON, 5MMX144MMTUBING, NYLON, 5MMX144MM
-
197052463 FITTING-6MMFITTING-6MM
