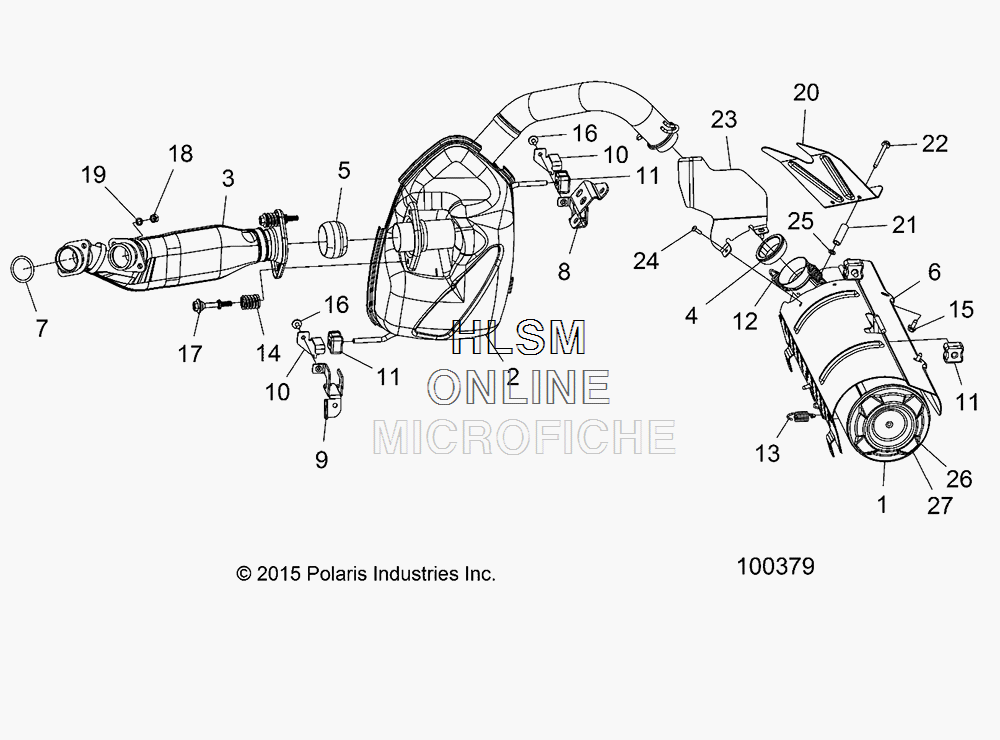

EXHAUST SYSTEM для Polaris SCRAMBLER 1000 TRACTOR (HAVASU RED PEARL) [A18SVS95CR] - 2018 года выпуска
-
№АртикулНазвание
-
11262232-489 WELD-EXHAUST SILENCER, BLACKWELD-EXHAUST SILENCER, BLACK
-
21262788 ASM-EXHAUST SILENCER, PRIMARYASM-EXHAUST SILENCER, PRIMARY
-
31262866 ASM-EXHAUST PIPE, TWIN, TRACTORASM-EXHAUST PIPE, TWIN, TRACTOR
-
43610179 SEAL-EXHAUSTSEAL-EXHAUST
-
53610248 GASKET-DOUBLE SPHERICAL, 2 INGASKET-DOUBLE SPHERICAL, 2 IN
-
65263617-489 SHIELD-BOX, STORAGE, BLACKSHIELD-BOX, STORAGE, BLACK
-
75257995 GASKET-EXHAUST SEALING, 46.50GASKET-EXHAUST SEALING, 46.50
-
85260166-458 BRKT-EXHAUST, UPR, SUPPORT, MATTE BLACKBRKT-EXHAUST, UPR, SUPPORT, MATTE BLACK
-
95260069-458 BRKT-EXHAUST, LWR, SUPPORT, MATTE BLACKBRKT-EXHAUST, LWR, SUPPORT, MATTE BLACK
-
105260359-458 BRKT-EXHAUST, GROMMET, MATTE BLACKBRKT-EXHAUST, GROMMET, MATTE BLACK
-
115413383 GROMMET-SILENCER MOUNTGROMMET-SILENCER MOUNT
-
127041789 SPRING-EXHAUSTSPRING-EXHAUST
-
137041804 SPRING-EXHAUSTSPRING-EXHAUST
-
147044274 SPRING-SPHERICAL, EXHAUSTSPRING-SPHERICAL, EXHAUST
-
157518513 BOLT-M6X1.0X15, HXFLG, TAP/R-ODBOLT-M6X1.0X15, HXFLG, TAP/R-OD
-
167518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
177520079 STUD-SPHERICAL, EXHAUSTSTUD-SPHERICAL, EXHAUST
-
187547076 NUT-HEX-M8X1.25 8 ZPB.NUT-HEX-M8X1.25 8 ZPB.
-
197556111 WASHER-LOCK M8X12.7ODX2MM ZY3WASHER-LOCK M8X12.7ODX2MM ZY3
-
205261312 SHIELD-EXHAUST SPRINGSHIELD-EXHAUST SPRING
-
215336190 SPACER-EXHAUST SHIELD SPRINGSPACER-EXHAUST SHIELD SPRING
-
227519090 SCR-HXFL-M6X1.0X50 TDFM ZPBSCR-HXFL-M6X1.0X50 TDFM ZPB
-
235261990 SHIELD-EXHAUSTSHIELD-EXHAUST
-
247661637 RIVET-3/16-.090-.290RIVET-3/16-.090-.290
-
257670154 RETAINER-BOLT, 1/4-20RETAINER-BOLT, 1/4-20
-
267512666 BOLT-CLEAN OUTBOLT-CLEAN OUT
-
277556230 WASHER-CLEAN OUTWASHER-CLEAN OUT
