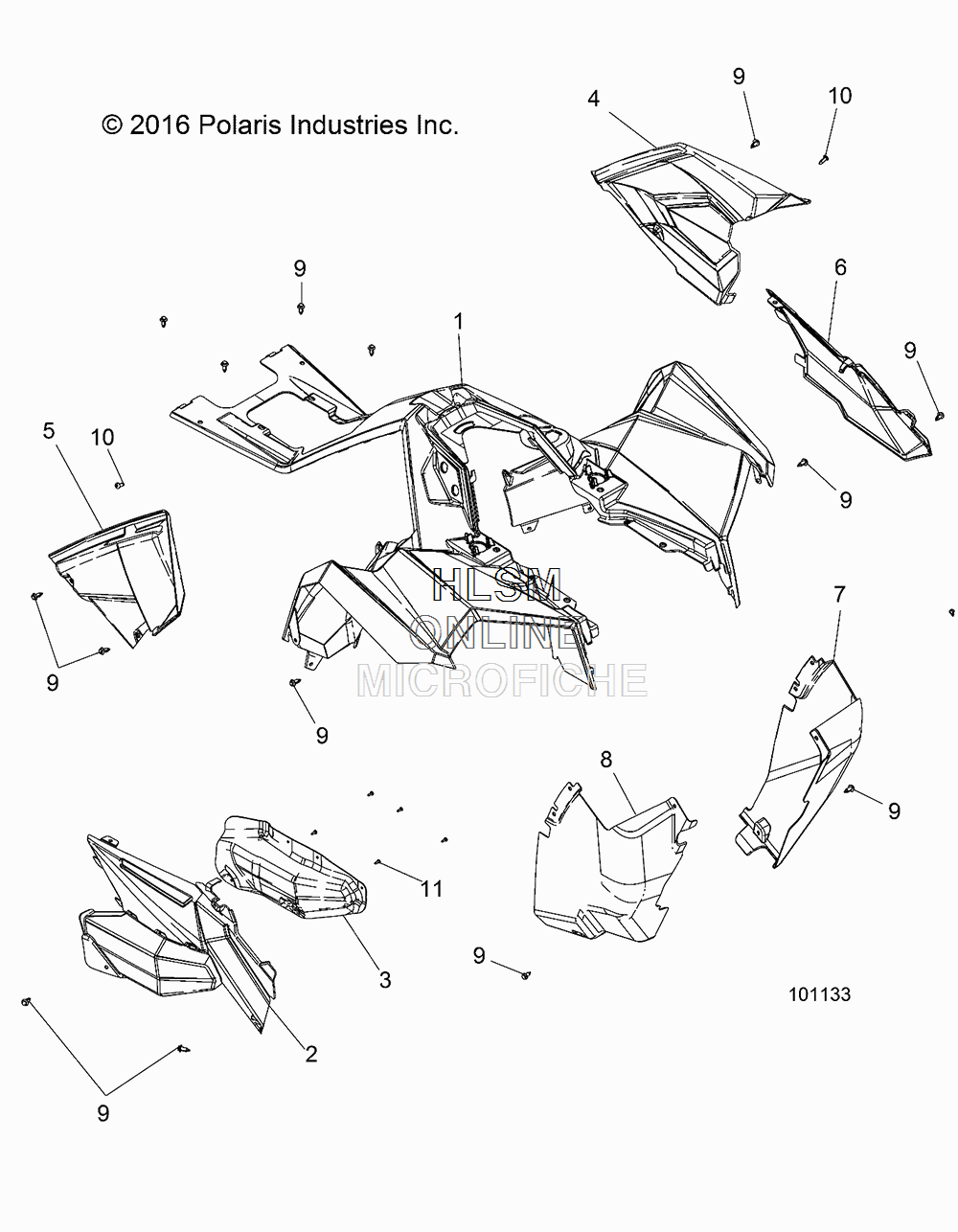

CAB - FRONT W/ SIDE PANELS для Polaris SCRAMBLER 1000 XP EU (HAVASU RED PEARL) [A18SVE95FR] - 2018 года выпуска
-
№АртикулНазвание
-
12636649-649 ASM-CAB FR, EU, 2 OC, HAVASU RED PEARL (INCL. WARNING DECALS)ASM-CAB FR, EU, 2 OC, HAVASU RED PEARL (INCL. WARNING DECALS)
-
25454391-070 PANEL-SIDE, LOWER, RIGHT HAND, BASIC, BLACKPANEL-SIDE, LOWER, RIGHT HAND, BASIC, BLACK
-
35260678 SHIELD-HEAT, EXHAUST, RIGHT HANDSHIELD-HEAT, EXHAUST, RIGHT HAND
-
45439321-070 PANEL, SIDE, UPPER, LEFT HAND, BLACKPANEL, SIDE, UPPER, LEFT HAND, BLACK
-
55439322-070 PANEL, SIDE, UPPER, RIGHT HAND, BLACKPANEL, SIDE, UPPER, RIGHT HAND, BLACK
-
65439323-070 PANEL, SIDE, LOWER, LEFT HAND, BLACKPANEL, SIDE, LOWER, LEFT HAND, BLACK
-
75437062-070 GUARD, MUD, FRONT, LEFT HAND, BLACKGUARD, MUD, FRONT, LEFT HAND, BLACK
-
85437063-070 GUARD, MUD, FRONT, RIGHT HAND, BLACKGUARD, MUD, FRONT, RIGHT HAND, BLACK
-
97661855 RIVETRIVET
-
107519045 SCREWSCREW
-
117520769 SCR-7-19 DBL LD X.500 WASH HDSCR-7-19 DBL LD X.500 WASH HD
