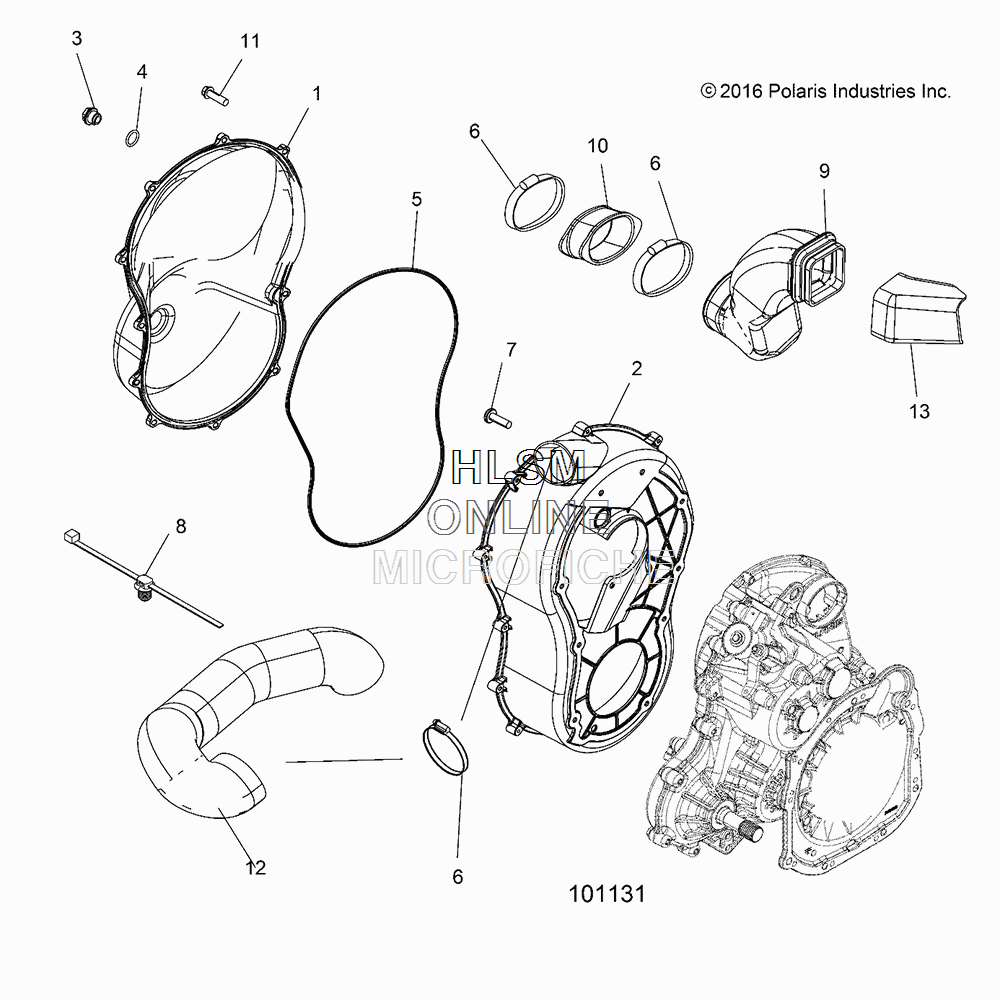

CLUTCH COVER для Polaris SCRAMBLER 1000 XP EU (HAVASU RED PEARL) [A18SVE95FR] - 2018 года выпуска
-
№АртикулНазвание
-
12633919 ASM., COVER, OUTERASM., COVER, OUTER
-
25438127 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
35434264 PLUG, DRAINPLUG, DRAIN
-
45410542 O-RINGO-RING
-
55521802 SEALSEAL
-
67081279 CLAMP, NARROW BAND, 70-90MMCLAMP, NARROW BAND, 70-90MM
-
77518914 SCREWSCREW
-
87082264 CLIP-DUCT, OUTLETCLIP-DUCT, OUTLET
-
95452432 DUCT-AIR INLET, CLUTCH, ETCDUCT-AIR INLET, CLUTCH, ETC
-
105413177 BOOT, CLUTCH, INLETBOOT, CLUTCH, INLET
-
117519849 SCREWSCREW
-
125415566 DUCT-OUTLET, CLUTCHDUCT-OUTLET, CLUTCH
-
135413516 BOOT, INLET, DUCTBOOT, INLET, DUCT
