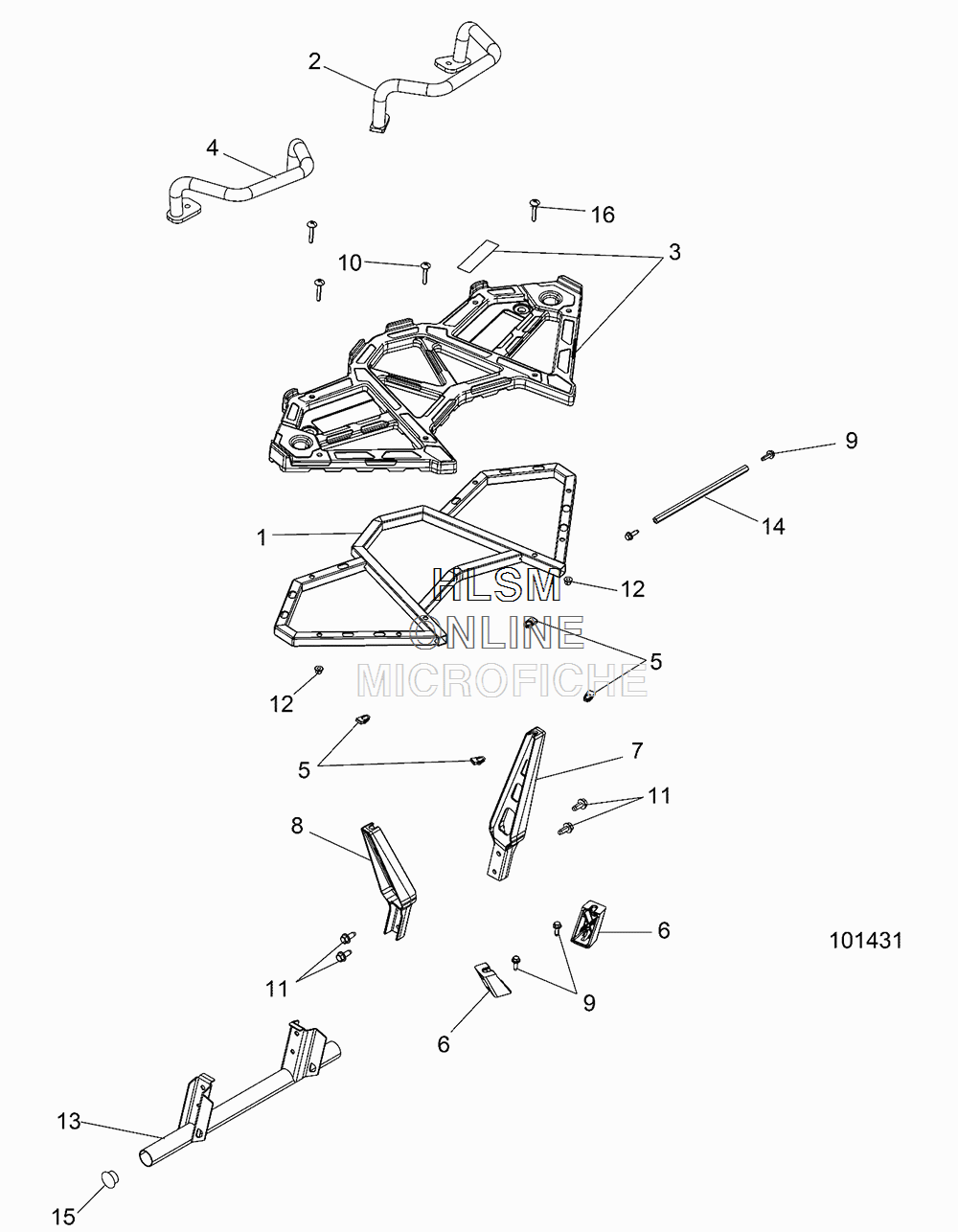

RACK - REAR для Polaris SCRAMBLER 1000 XP EU (HAVASU RED PEARL) [A18SVE95FR] - 2018 года выпуска
-
№АртикулНазвание
-
11018901-329 RACK, REAR, BLACKRACK, REAR, BLACK
-
21021597-458 WELD-HAND GRIP, PASS, LEFT HAND, MATTE BLACKWELD-HAND GRIP, PASS, LEFT HAND, MATTE BLACK
-
32635754-070 ASM-RACK, REAR, EU, BLACK (INCL. WARNING DECAL)ASM-RACK, REAR, EU, BLACK (INCL. WARNING DECAL)
-
41021598-458 WELD-HAND GRIP, PASS, RIGHT HAND, MATTE BLACKWELD-HAND GRIP, PASS, RIGHT HAND, MATTE BLACK
-
57547366 CLIP, UCLIP, U
-
65632708 BRACKET, RACK SUPPORT, FRONTBRACKET, RACK SUPPORT, FRONT
-
75632709 BRACKET RACK SUPPORT, REAR, LEFT HANDBRACKET RACK SUPPORT, REAR, LEFT HAND
-
85632710 BRACKET RACK SUPPORT, REAR, RIGHT HANDBRACKET RACK SUPPORT, REAR, RIGHT HAND
-
97518529 SCREWSCREW
-
107519001 SCREWSCREW
-
117519780 SCREWSCREW
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
131018900-458 WELD-GRAB BAR, MATTE BLACKWELD-GRAB BAR, MATTE BLACK
-
145138253 TUBE-RACK SUPPORT STRAPTUBE-RACK SUPPORT STRAP
-
155450305 PLUG-END CAP, 1.25 IN DIA, RIBBEDPLUG-END CAP, 1.25 IN DIA, RIBBED
-
167519220 SCR-TXTH-M6X1.0X50, 8.8, ZPBSCR-TXTH-M6X1.0X50, 8.8, ZPB
