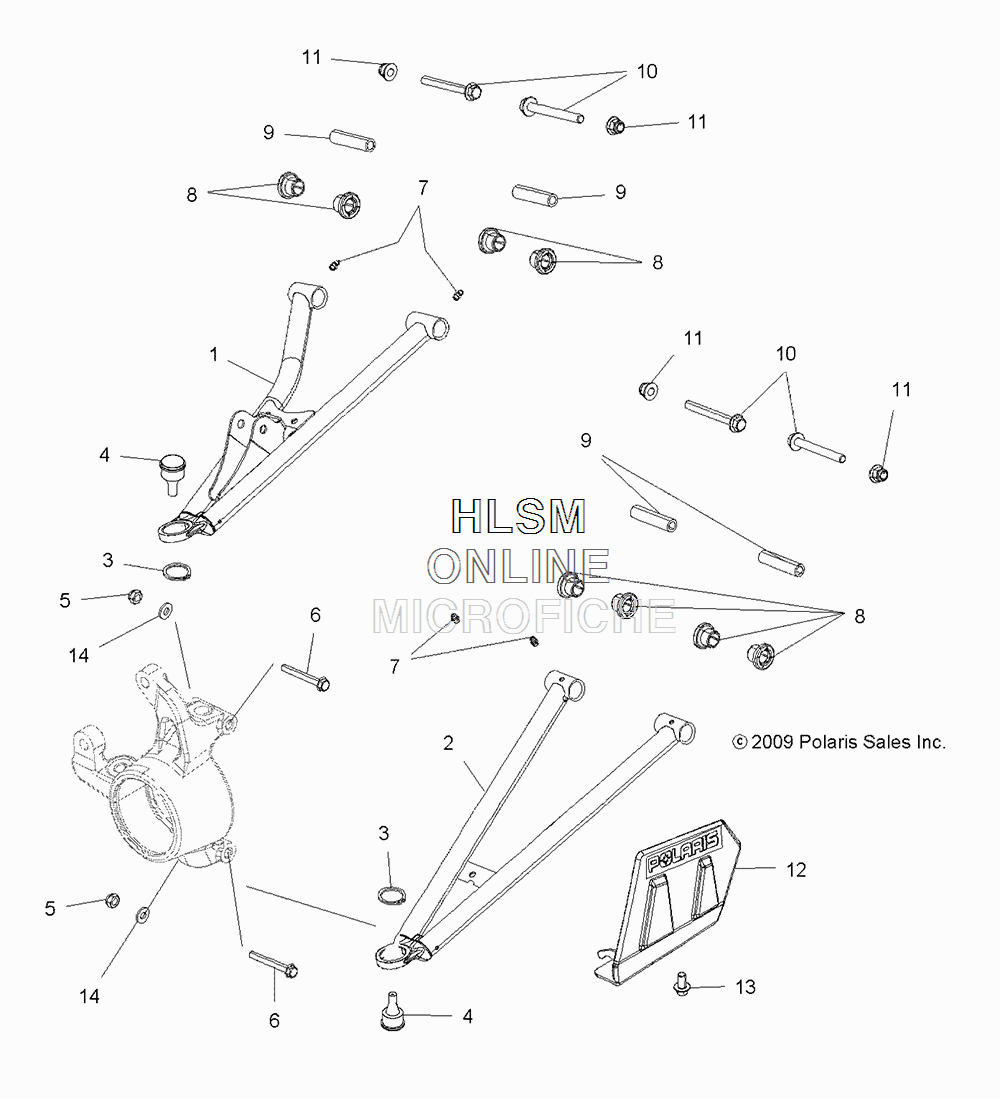

A-ARMS - FRONT для Polaris SPORTSMAN 850 TOURING SP (RADAR BLUE) [A18SYE85BB] - 2018 года выпуска
-
№АртикулНазвание
-
11019808-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND, BLACKARM, CONTROL, UPPER, FRONT, LEFT HAND, BLACK
-
11019809-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND, BLACKARM, CONTROL, UPPER, FRONT, RIGHT HAND, BLACK
-
21019810-067 ARM, CONTROL, LOWER, FRONT, LEFT HAND, BLACKARM, CONTROL, LOWER, FRONT, LEFT HAND, BLACK
-
21019811-067 ARM, CONTROL, LOWER, FRONT, RIGHT HAND, BLACKARM, CONTROL, LOWER, FRONT, RIGHT HAND, BLACK
-
37710533 RING, RETAININGRING, RETAINING
-
47061220 JOINT, BALL,8MMJOINT, BALL,8MM
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
85439874 BUSHINGBUSHING
-
95137346 SHAFT, A-ARM,63.5MMSHAFT, A-ARM,63.5MM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
125436657-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
125436658-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
137518529 SCREWSCREW
-
147556557 WASHERWASHER
