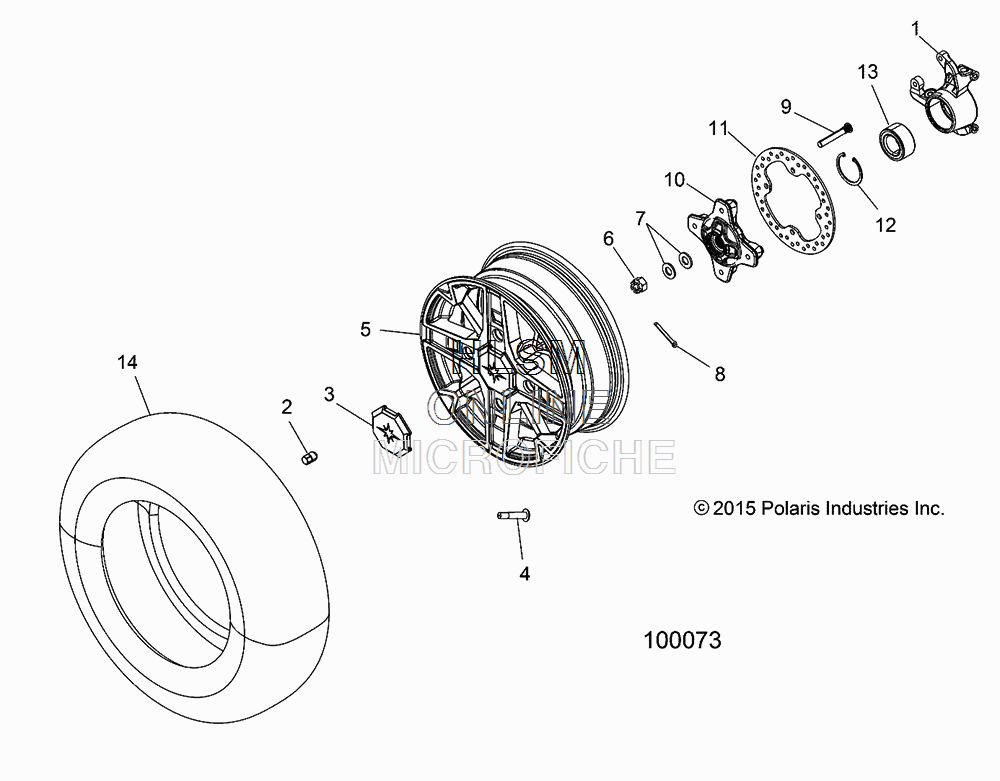

WHEEL - FRONT W/ HUB для Polaris SPORTSMAN 850 TOURING SP (RADAR BLUE) [A18SYE85BB] - 2018 года выпуска
-
№АртикулНазвание
-
11822945 ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]
-
11822946 ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]
-
15136733 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
15136734 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
27547361 NUT, WHEELNUT, WHEEL
-
31521999-458 CAP-RIM, MATTE BLACKCAP-RIM, MATTE BLACK
-
41525017 VALVE, RIMVALVE, RIM
-
51522529-458 RIM-FR,CST,NO MACH,14X5.5-46.7 [INCL. 3]RIM-FR,CST,NO MACH,14X5.5-46.7 [INCL. 3]
-
67547406 NUT, CASTLENUT, CASTLE
-
77555796 WASHER, CONEWASHER, CONE
-
87661404 PIN, COTTERPIN, COTTER
-
97518671 STUD, WHEELSTUD, WHEEL
-
105135499 HUB, WHEELHUB, WHEEL
-
115250205 DISC, BRAKE,246MM OD,4.75DISC, BRAKE,246MM OD,4.75
-
127710440 RING, RETAININGRING, RETAINING
-
133514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
145415600 TIRE-26X8-14,WILD THANGTIRE-26X8-14,WILD THANG
