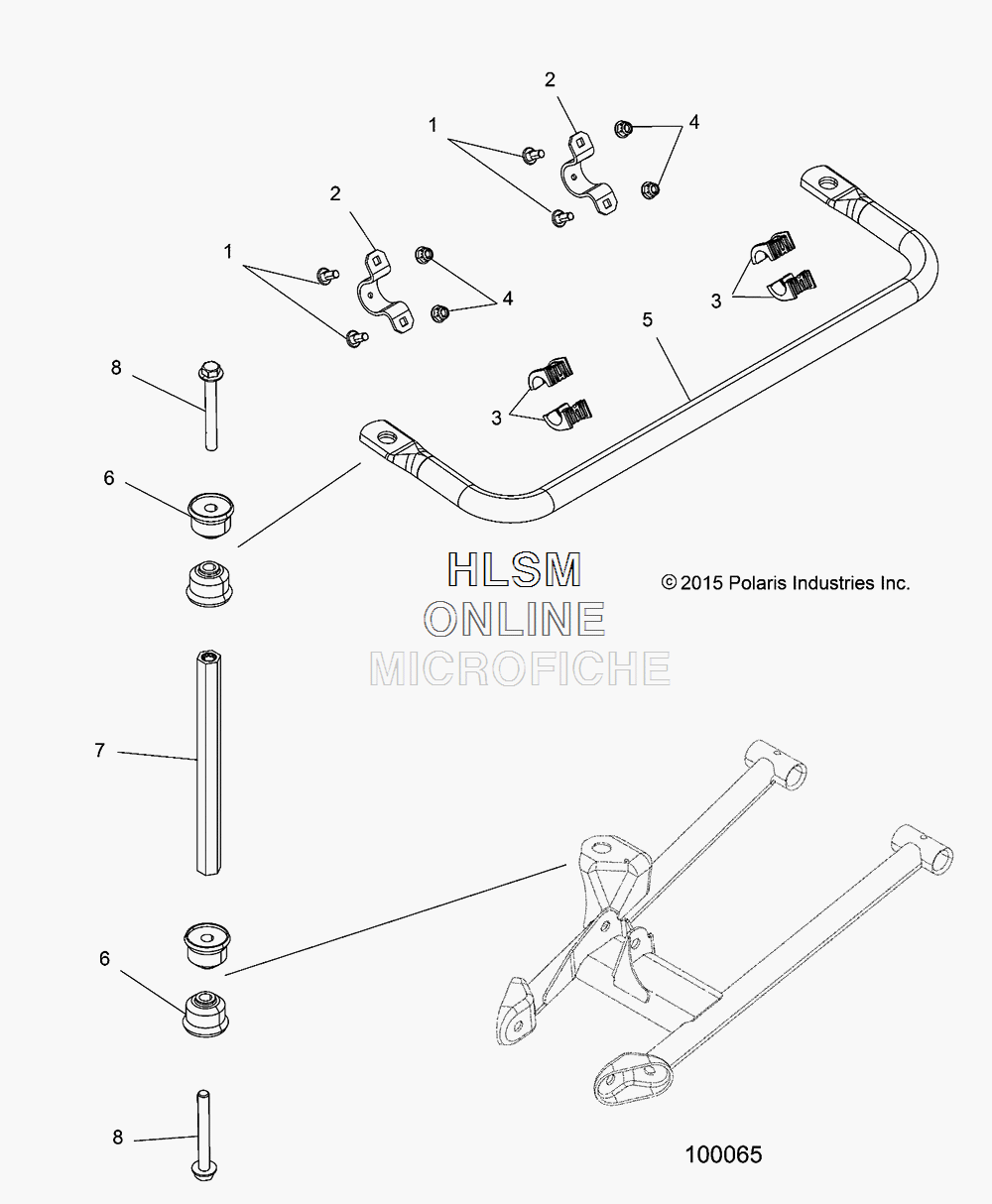

SUSPENSION - TORSION BAR для Polaris SPORTSMAN 850 TOURING SP (RADAR BLUE) [A18SYE85BB] - 2018 года выпуска
-
№АртикулНазвание
-
17519324 BOLT, CARRIAGEBOLT, CARRIAGE
-
25257028 BRACKET, STEERING BUSHING, UPPERBRACKET, STEERING BUSHING, UPPER
-
35439731 BUSHING TORSION BAR,1 INBUSHING TORSION BAR,1 IN
-
47547317 NUT, FLANGENUT, FLANGE
-
55336853-067 TUBE, STABILIZER, FORMED, BLACKTUBE, STABILIZER, FORMED, BLACK
-
65414877 BUSHINGBUSHING
-
75138936 ROD, LINKAGEROD, LINKAGE
-
87519896 SCREWSCREW
