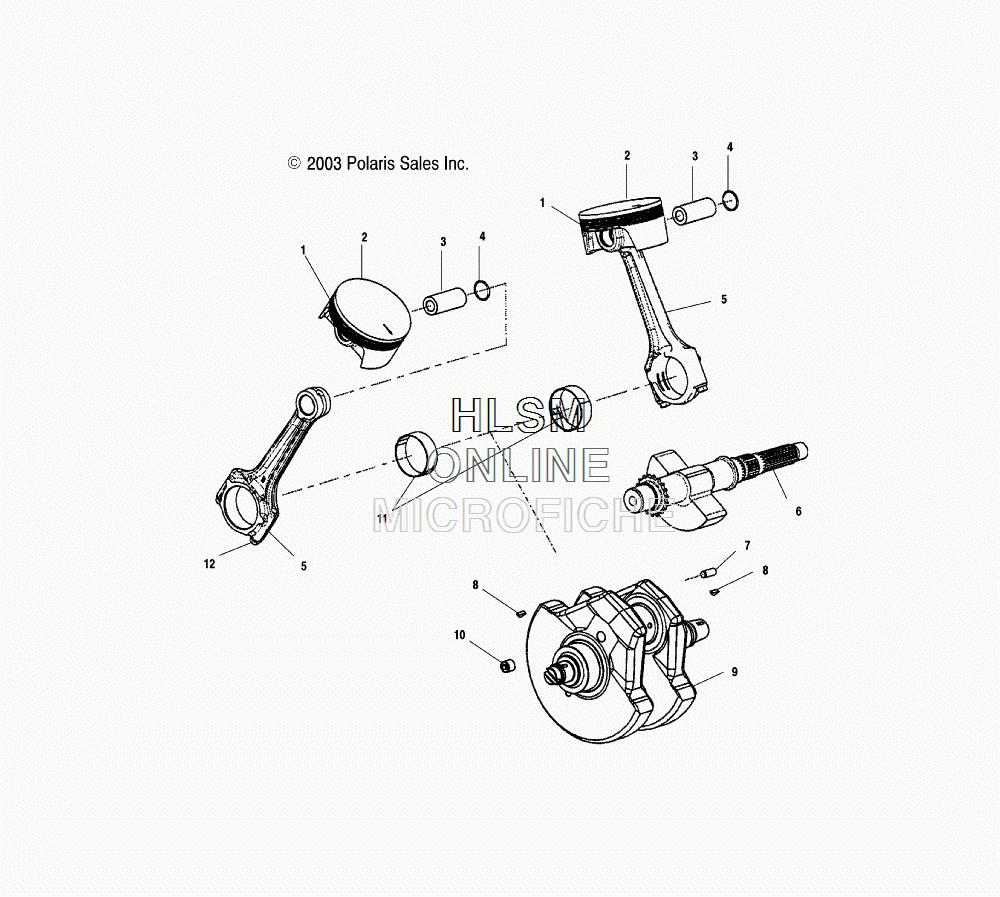

CRANKSHAFT для Polaris VICTORY VEGAS NESS (49 STATE) [V04NC16DN] - 2004 года выпуска
-
№АртикулНазвание
-
12202393 KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
23021419 ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)
-
35131860 PIN, WRISTPIN, WRIST
-
47710479 RING, RETAININGRING, RETAINING
-
53021196 ASM., CONNECTING ROD (INCL. 12)ASM., CONNECTING ROD (INCL. 12)
-
65133674 SHAFT, BALANCESHAFT, BALANCE
-
77661045 PIN, SOLIDPIN, SOLID
-
87721122 KEYKEY
-
93021274 ASM., CRANKSHAFT (INCL. 8,10)ASM., CRANKSHAFT (INCL. 8,10)
-
107052320 PLUGPLUG
-
113514390-067 BEARING, ROD, BLACKBEARING, ROD, BLACK
-
113514390-159 BEARING, ROD, ORANGEBEARING, ROD, ORANGE
-
113514390-027 BEARING, ROD, BLUEBEARING, ROD, BLUE
-
127517937 SCREWSCREW
