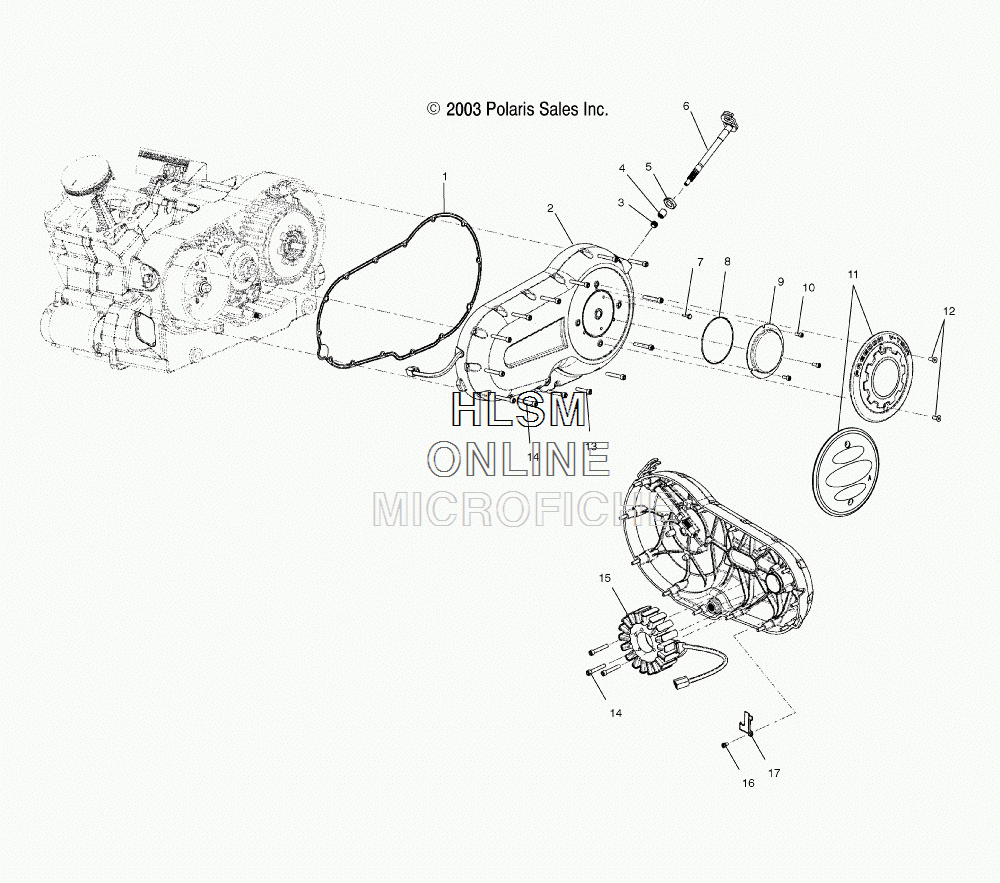

PRIMARY COVER для Polaris VICTORY VEGAS NESS (49 STATE) [V04NC16DN] - 2004 года выпуска
-
№АртикулНазвание
-
15830223 GASKET, PRIMARY COVERGASKET, PRIMARY COVER
-
15830227 KIT, GASKET, BEADED PAPERKIT, GASKET, BEADED PAPER
-
23021305 ASM. PRIMARY COVER, CHROME (INCL. 3,4,5)ASM. PRIMARY COVER, CHROME (INCL. 3,4,5)
-
33512106 BEARING, NEEDLEBEARING, NEEDLE
-
43552105 BEARING, NEEDLEBEARING, NEEDLE
-
53610059 SEALSEAL
-
61013770 PINION, CLUTCHPINION, CLUTCH
-
77517499 SCREWSCREW
-
85412230 O-RINGO-RING
-
95246387 PLATE, CAP SEALPLATE, CAP SEAL
-
107517483 SCREWSCREW
-
115245960 COVER, PRIMARY CAP, CHROMECOVER, PRIMARY CAP, CHROME
-
115134063 COVER, PRIMARY, NESSCOVER, PRIMARY, NESS
-
127517754 SCREWSCREW
-
137517301 SCREWSCREW
-
147517261 SCREWSCREW
-
154010436 STATORSTATOR
-
167517515 SCREWSCREW
-
175245036 BRACKET, STATOR WIREBRACKET, STATOR WIRE
