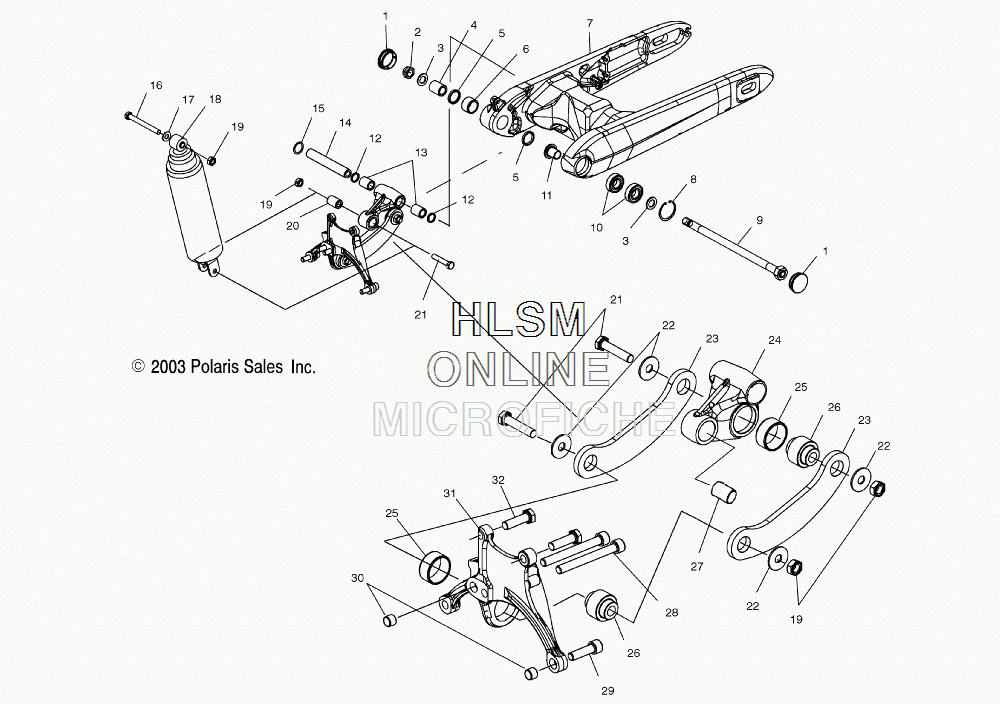

SWING ARM AND REAR SUSPENSION для Polaris VICTORY VEGAS NESS (49 STATE) [V04NC16DN] - 2004 года выпуска
-
№АртикулНазвание
-
15434637 CAPCAP
-
27547048 NUT, FLEXLOCNUT, FLEXLOC
-
37556236 WASHER, FLATWASHER, FLAT
-
45133475 BUSHINGBUSHING
-
53610096 SEALSEAL
-
63514413 BEARINGBEARING
-
71014408-156 ASM., SWING ARM W/BEARINGS (CHROME)ASM., SWING ARM W/BEARINGS (CHROME)
-
71014408-385 ASM., SWING ARM W/BEARINGS (SILVER)ASM., SWING ARM W/BEARINGS (SILVER)
-
87670149 RING, RETAININGRING, RETAINING
-
91013916 SHAFT, SWING ARM PIVOTSHAFT, SWING ARM PIVOT
-
103514414 BEARING, BALLBEARING, BALL
-
115631478 BUSHINGBUSHING
-
123610095 SEALSEAL
-
133514411 BEARING, NEEDLEBEARING, NEEDLE
-
145134101 BUSHINGBUSHING
-
157710544 RING, RETAININGRING, RETAINING
-
167518206 SCREWSCREW
-
177556155 WASHER, FLATWASHER, FLAT
-
197547268 NUT, NYLOKNUT, NYLOK
-
205133473 BUSHING, SUSPENSION, SHORTBUSHING, SUSPENSION, SHORT
-
217517946 SCREWSCREW
-
227556260 WASHER, FLATWASHER, FLAT
-
235247519 LINK, SUSPENSION STRAPLINK, SUSPENSION STRAP
-
245134080-067 LINK, SUSPENSION PIVOTLINK, SUSPENSION PIVOT
-
253514459 BEARINGBEARING
-
265134096 BUSHING, SUSPENSION, PLAIN BEARINGBUSHING, SUSPENSION, PLAIN BEARING
-
273514412 BEARING, NEEDLEBEARING, NEEDLE
-
287518202 SCREWSCREW
-
297518032 SCREWSCREW
-
307663008 DOWELDOWEL
-
315134079-067 MOUNT, MINOR PIVOTMOUNT, MINOR PIVOT
-
327517827 SCREWSCREW
