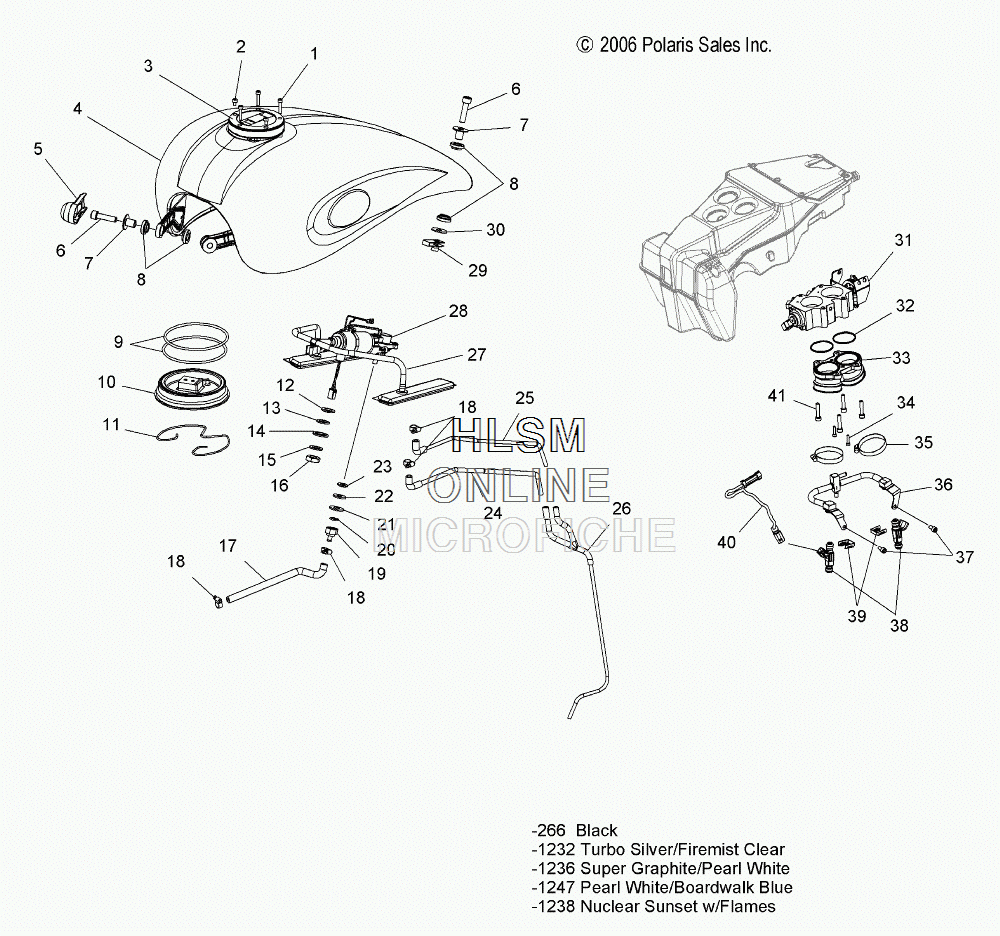

FUEL SYSTEM для Polaris KINGPIN (49 STATE) [V07CB26DA] - 2007 года выпуска
-
№АртикулНазвание
-
17518086 SCREWSCREW
-
27517845 SCREWSCREW
-
41014739-266 TANK, FUEL, SPINE (BLACK)TANK, FUEL, SPINE (BLACK)
-
41014739-1232 TANK, FUEL, SPINE (SILVER/FIREMIST)TANK, FUEL, SPINE (SILVER/FIREMIST)
-
41014739-1236 TANK, FUEL, SPINE (GRAPHITE/WHITE)TANK, FUEL, SPINE (GRAPHITE/WHITE)
-
41014739-1238 TANK, FUEL, SPINE (WHITE/SUNSET/COSMIC FLAME)TANK, FUEL, SPINE (WHITE/SUNSET/COSMIC FLAME)
-
41014739-1247 TANK, FUEL, SPINE (WHITE/BLUE)TANK, FUEL, SPINE (WHITE/BLUE)
-
55412414 COVER, MOUNT, LEFT HANDCOVER, MOUNT, LEFT HAND
-
55412415 COVER, MOUNT, RIGHT HANDCOVER, MOUNT, RIGHT HAND
-
67517525 SCREWSCREW
-
75134160 BUSHINGBUSHING
-
85412480 BUSHING, FLANGEBUSHING, FLANGE
-
95412071 O-RINGO-RING
-
105133613 PLUGPLUG
-
117710515 RING, RETAININGRING, RETAINING
-
125412096 GROMMETGROMMET
-
135412095 GROMMETGROMMET
-
147556193 WASHERWASHER
-
157556192 WASHERWASHER
-
167547186 NUTNUT
-
175412332 HOSEHOSE
-
187081151 CLAMP, HOSECLAMP, HOSE
-
192520251 FITTINGFITTING
-
205411869 O-RINGO-RING
-
217556131 WASHERWASHER
-
225412093 GROMMETGROMMET
-
235412094 GROMMETGROMMET
-
245435763 LINE FUEL VENTLINE FUEL VENT
-
255435764 LINE, WATER DRAINLINE, WATER DRAIN
-
265435771 LINE, WATER/FUEL TO GROUNDLINE, WATER/FUEL TO GROUND
-
272520322 ASM., FUEL LINE, FILTERASM., FUEL LINE, FILTER
-
282520733 ASM., FUEL PUMPASM., FUEL PUMP
-
282520678 THERMISTOR, FUEL PUMP (LEVEL SENSOR)THERMISTOR, FUEL PUMP (LEVEL SENSOR)
-
297547233 U-NUTU-NUT
-
307556260 WASHER, FLATWASHER, FLAT
-
311253363 ASM., THROTTLE BODYASM., THROTTLE BODY
-
315411886 CAP, FITTINGCAP, FITTING
-
325412259 O-RINGO-RING
-
331203277 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
347516610 SCREWSCREW
-
357080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
362520207 ASM., FUEL RAILASM., FUEL RAIL
-
377517405 SCREWSCREW
-
381253405 INJECTOR, FUELINJECTOR, FUEL
-
381500198 O-RINGO-RING
-
397670129 CLIP, INJECTOR CLOCKINGCLIP, INJECTOR CLOCKING
-
417517259 SCREWSCREW
