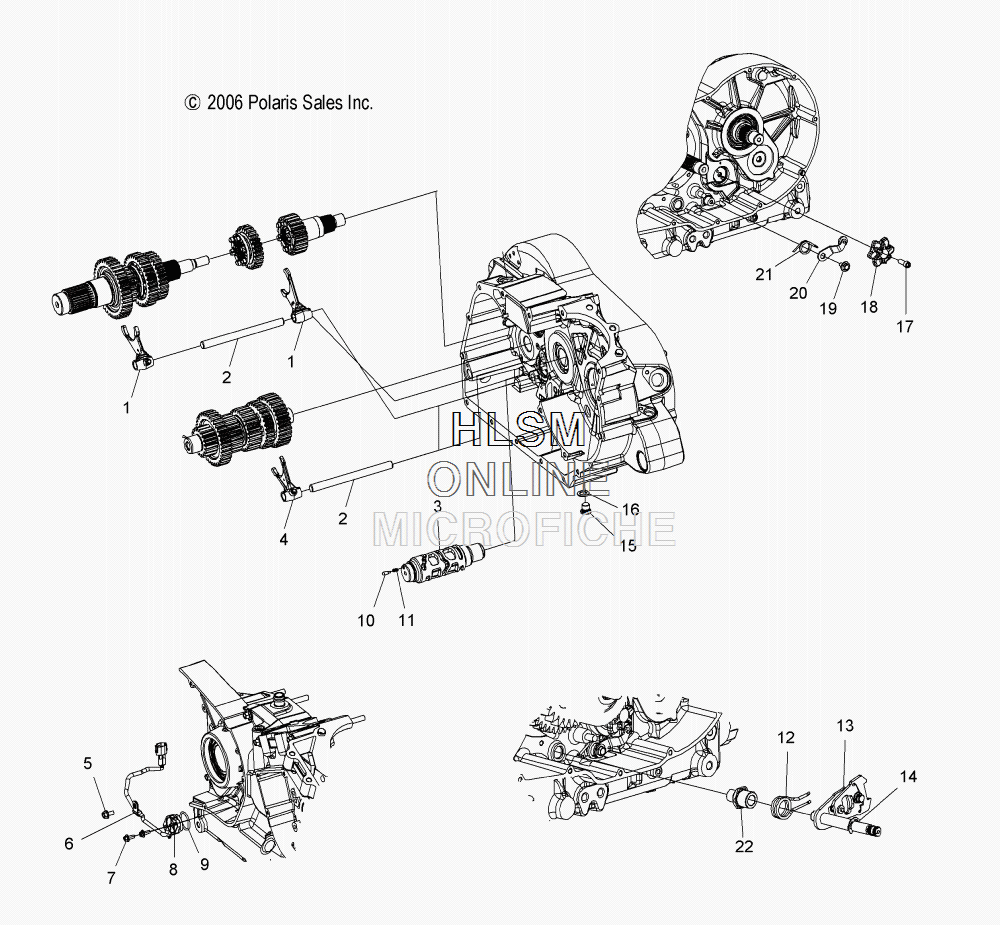

TRANSMISSION- SHIFT FORKS/DRUM для Polaris KINGPIN (49 STATE) [V07CB26DA] - 2007 года выпуска
-
№АртикулНазвание
-
15134292 FORK, SHIFT, MAINSHAFTFORK, SHIFT, MAINSHAFT
-
25134294 RAIL, SHIFT FORKRAIL, SHIFT FORK
-
31341511 ASM., SHIFTER DRUM (6 SPEED) (INCL. BEARING, DRUM, PINS)ASM., SHIFTER DRUM (6 SPEED) (INCL. BEARING, DRUM, PINS)
-
37661023 PIN, SOLIDPIN, SOLID
-
31341512 ASM., SHIFTER DRUM (5 SPEED)ASM., SHIFTER DRUM (5 SPEED)
-
45134293 FORK, SHIFT, COUNTERSHAFTFORK, SHIFT, COUNTERSHAFT
-
57517257 SCREWSCREW
-
67081164 CLAMPCLAMP
-
77518338 SCREWSCREW
-
95412530 O-RINGO-RING
-
105334457 PIN, INDICATOR, SHIFT DRUMPIN, INDICATOR, SHIFT DRUM
-
117042307 SPRING, PINSHIFT INDICATORSPRING, PINSHIFT INDICATOR
-
127041583 SPRINGSPRING
-
131341416 ASM., SHIFTER RATCHET (INCL. 12)ASM., SHIFTER RATCHET (INCL. 12)
-
147710534 RING, RETAININGRING, RETAINING
-
157052306 PLUG, SOCKETPLUG, SOCKET
-
165812232 WASHER, COPPERWASHER, COPPER
-
177517384 SCREWSCREW
-
185133254 STAR, SHIFTERSTAR, SHIFTER
-
197518069 SCREWSCREW
-
201341402 ASM., ROLLER FOLLOWERASM., ROLLER FOLLOWER
-
217042087 SPRING, TENSIONSPRING, TENSION
-
225132139 ADAPTOR, SHIFT SHAFTADAPTOR, SHIFT SHAFT
