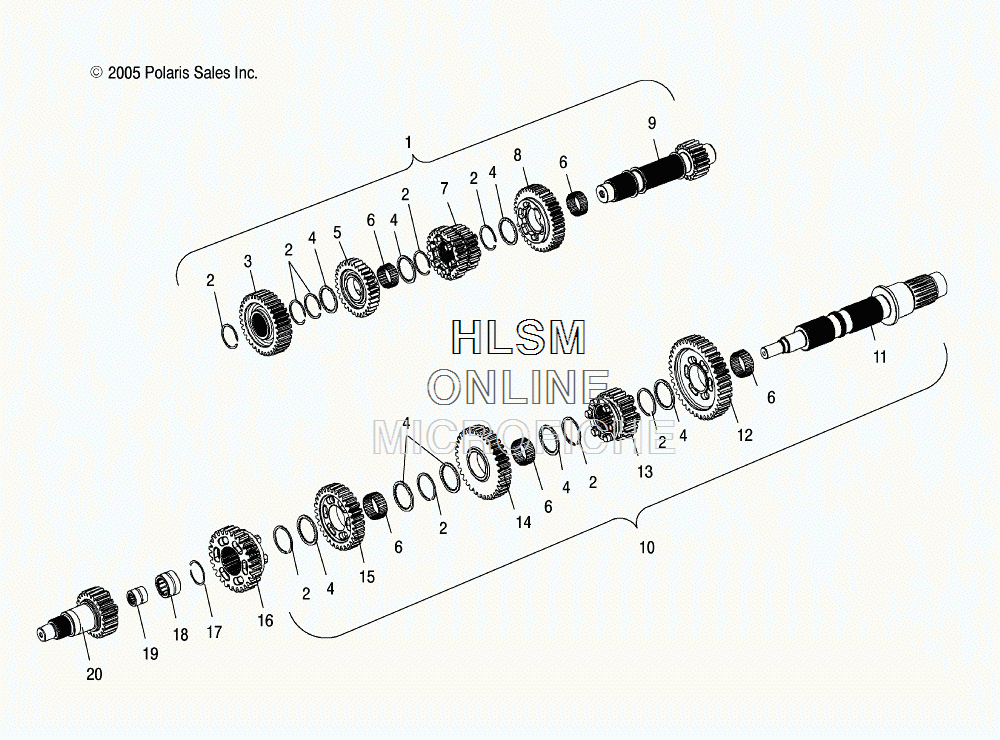

TRANSMISSION (6 SPEED) для Polaris KINGPIN (49 STATE) [V07CB26DA] - 2007 года выпуска
-
№АртикулНазвание
-
11332377 ASM., COUNTERSHAFT, 6 SPEED (INCL. 2-9)ASM., COUNTERSHAFT, 6 SPEED (INCL. 2-9)
-
27710525 RING, RETAININGRING, RETAINING
-
36230285 GEAR, COMMON, COUNTERSHAFTGEAR, COMMON, COUNTERSHAFT
-
45247690 WASHER, THRUSTWASHER, THRUST
-
56230296 GEAR, 4TH COUNTERSHAFTGEAR, 4TH COUNTERSHAFT
-
63584006 BEARING, ROLLERBEARING, ROLLER
-
76230294 GEAR, 2ND/3RD, COUNTERSHAFTGEAR, 2ND/3RD, COUNTERSHAFT
-
86230293 GEAR 6TH COUNTERSHAFTGEAR 6TH COUNTERSHAFT
-
96230281 SHAFT, COUNTERSHAFT, COUNTER
-
101332370 ASM., MAINSHAFT, 6 SPEED (INCL. 2,4,6,11-15)ASM., MAINSHAFT, 6 SPEED (INCL. 2,4,6,11-15)
-
116230292 SHAFT, MAINSHAFT, MAIN
-
126230276 GEAR, 1ST MAINSHAFTGEAR, 1ST MAINSHAFT
-
136230279 GEAR, 6TH MAINSHAFTGEAR, 6TH MAINSHAFT
-
146230277 GEAR, 2ND MAINSHAFTGEAR, 2ND MAINSHAFT
-
156230278 GEAR, 3RD MAINSHAFTGEAR, 3RD MAINSHAFT
-
166230280 GEAR, 4TH MAINSHAFTGEAR, 4TH MAINSHAFT
-
177710548 RING, RETAININGRING, RETAINING
-
201341506 ASM., CLUTCHSHAFT (INCL. 17,18,19)ASM., CLUTCHSHAFT (INCL. 17,18,19)
