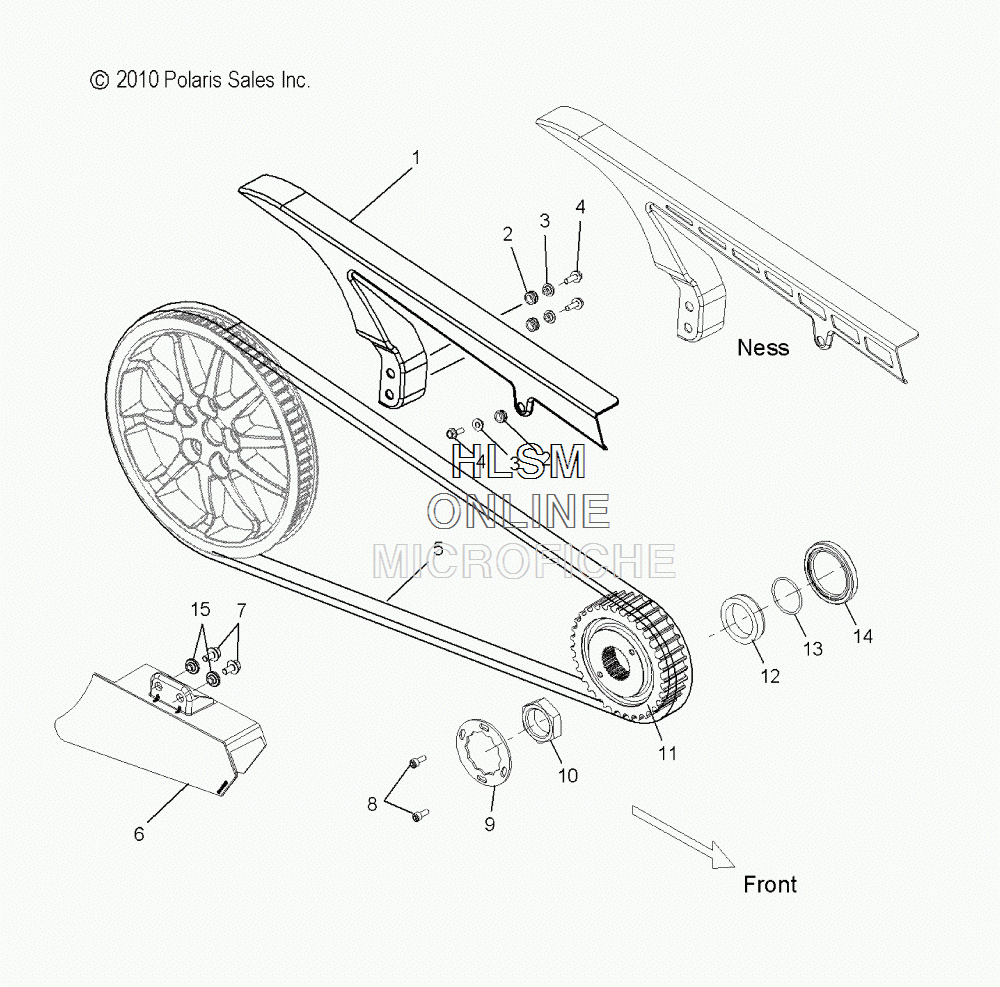

DRIVE SPROCKET AND BELT AND GUARDS для Polaris KINGPIN [V11CA36] - 2011 года выпуска
-
№АртикулНазвание
-
15247719-156 GUARD, BELT, UPPER (CHROME)GUARD, BELT, UPPER (CHROME)
-
25412265 GROMMET-.38"IDX.62"ODX.28"THKGROMMET-.38"IDX.62"ODX.28"THK
-
35134082 SLEEVE-SHOULDERED, M6SLEEVE-SHOULDERED, M6
-
47518141 -HXFLGHD, M6X20, ZPC-HXFLGHD, M6X20, ZPC
-
53211102 BELT-VICTORY DRIVE, 28MM, HTDBELT-VICTORY DRIVE, 28MM, HTD
-
65438684 GUARD, BELTGUARD, BELT
-
77518591 SCREW-HXFLGHD, M6X16, 0600086SCREW-HXFLGHD, M6X16, 0600086
-
87517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
95244114 WASHER, LOCKWASHER, LOCK
-
107547311 NUT, HEX, THINNUT, HEX, THIN
-
113234580 SPROCKET, DRIVE, 33TSPROCKET, DRIVE, 33T
-
125136989 SPACER, SPROCKETSPACER, SPROCKET
-
135413767 O-RING, 39.34 X 2.62, 0600083O-RING, 39.34 X 2.62, 0600083
-
143610118 SEAL, LIPSEAL, LIP
-
155134083 SLEEVE-TURNSIGNAL MOUNTSLEEVE-TURNSIGNAL MOUNT
