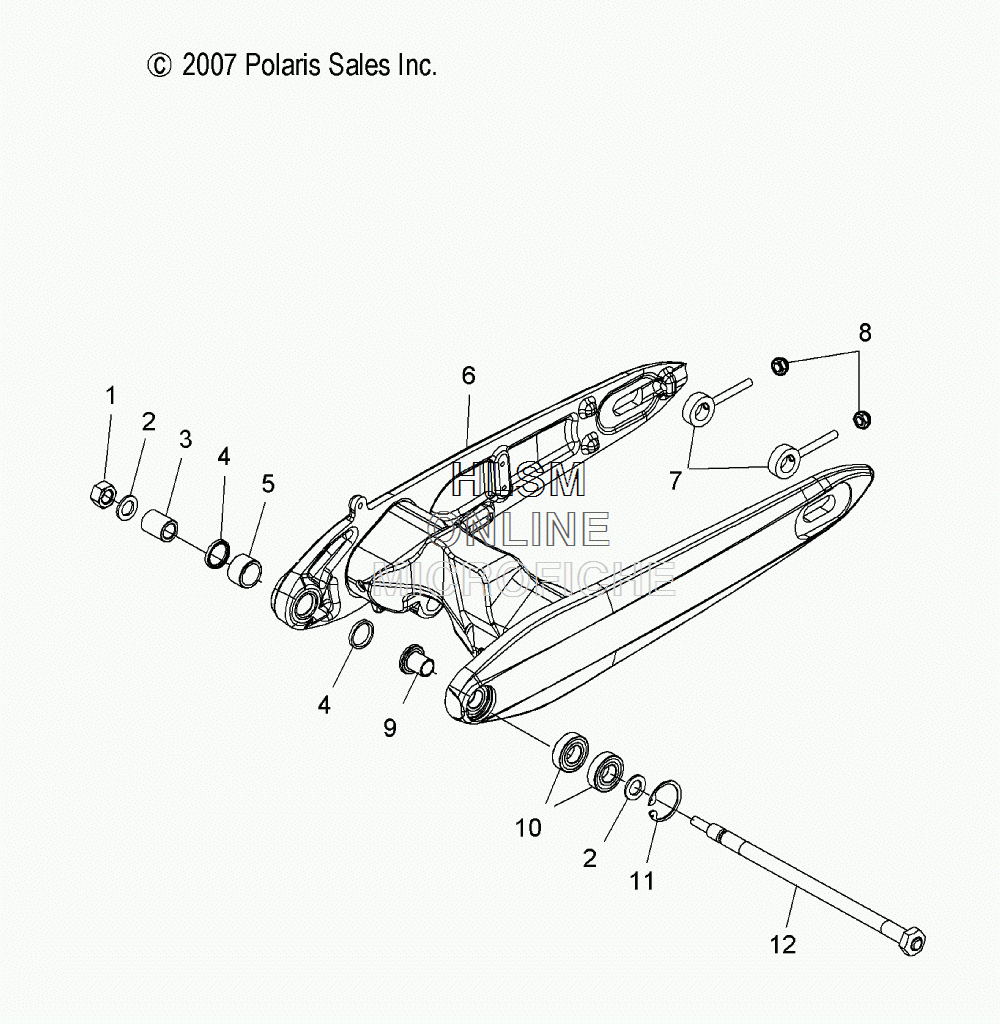

SWING ARM для Polaris KINGPIN [V11CA36] - 2011 года выпуска
-
№АртикулНазвание
-
17540001 NUT-M16X1.5NUT-M16X1.5
-
27556236 WASHER, FLAT, 17X2.5WASHER, FLAT, 17X2.5
-
35137441 BUSHING-SWINGARM NEEDLE BRGBUSHING-SWINGARM NEEDLE BRG
-
43610096 SEALSEAL
-
53514413 BEARINGBEARING
-
61016176-521 ASM., SWING ARM W/BEARINGS (BLACK ENGINE WRINKLE) (INCL. 4, 5, 10, 11)ASM., SWING ARM W/BEARINGS (BLACK ENGINE WRINKLE) (INCL. 4, 5, 10, 11)
-
71014895 ADJUSTER, AXLEADJUSTER, AXLE
-
87547144 NUT, NYLOK M8X1.25(10)NUT, NYLOK M8X1.25(10)
-
95631478 BUSHING-SWINGARM BALL BRG, PMBUSHING-SWINGARM BALL BRG, PM
-
103514414 BEARING, BALLBEARING, BALL
-
117670149 RING, RETAINING, INT, 42X1.72RING, RETAINING, INT, 42X1.72
-
121017830 SHAFT, SWING ARM PIVOTSHAFT, SWING ARM PIVOT
