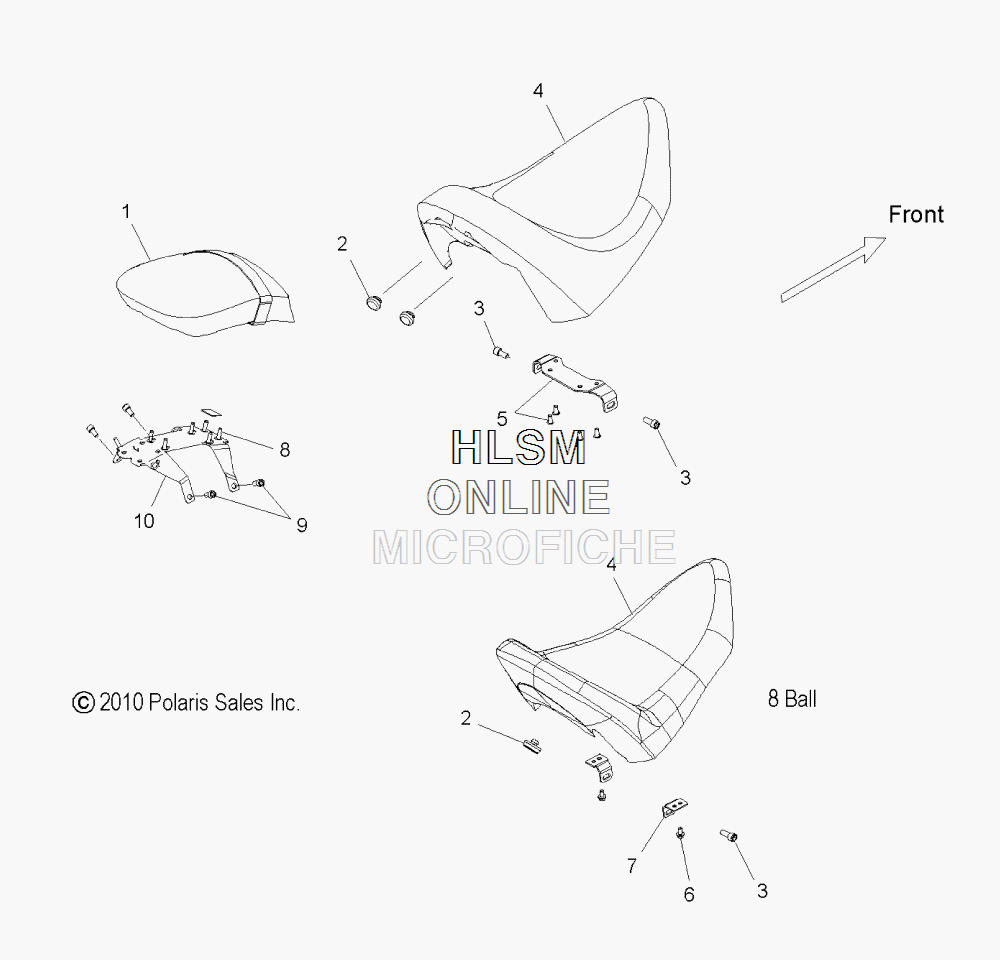

SEAT W/ BACKREST для Polaris KINGPIN [V11CA36] - 2011 года выпуска
-
№АртикулНазвание
-
11017583 ASM., SEAT, PASSENGERASM., SEAT, PASSENGER
-
25412067 BUMPER, RUBBERBUMPER, RUBBER
-
37517410 SCREW, SOCHD, M8X20SCREW, SOCHD, M8X20
-
42683237 ASM., DRIVER SEAT (KINGPIN)ASM., DRIVER SEAT (KINGPIN)
-
55246540 BRACKET, SEAT LATCHBRACKET, SEAT LATCH
-
57661174 RIVET-.250"X.531" SEMITUBULARRIVET-.250"X.531" SEMITUBULAR
-
67517886 SCREW-HXFLGHD, M6X12 (10)SCREW-HXFLGHD, M6X12 (10)
-
87661834 RIVETRIVET
-
97517523 SCREW-SOCHD, M8X16SCREW-SOCHD, M8X16
-
105247432-408 BRACKET, PILLION SUPPORT (ZINC BLACK)BRACKET, PILLION SUPPORT (ZINC BLACK)
